CP PLUS : URC-DC24PL3C-L-V2
Available Offer
Share :

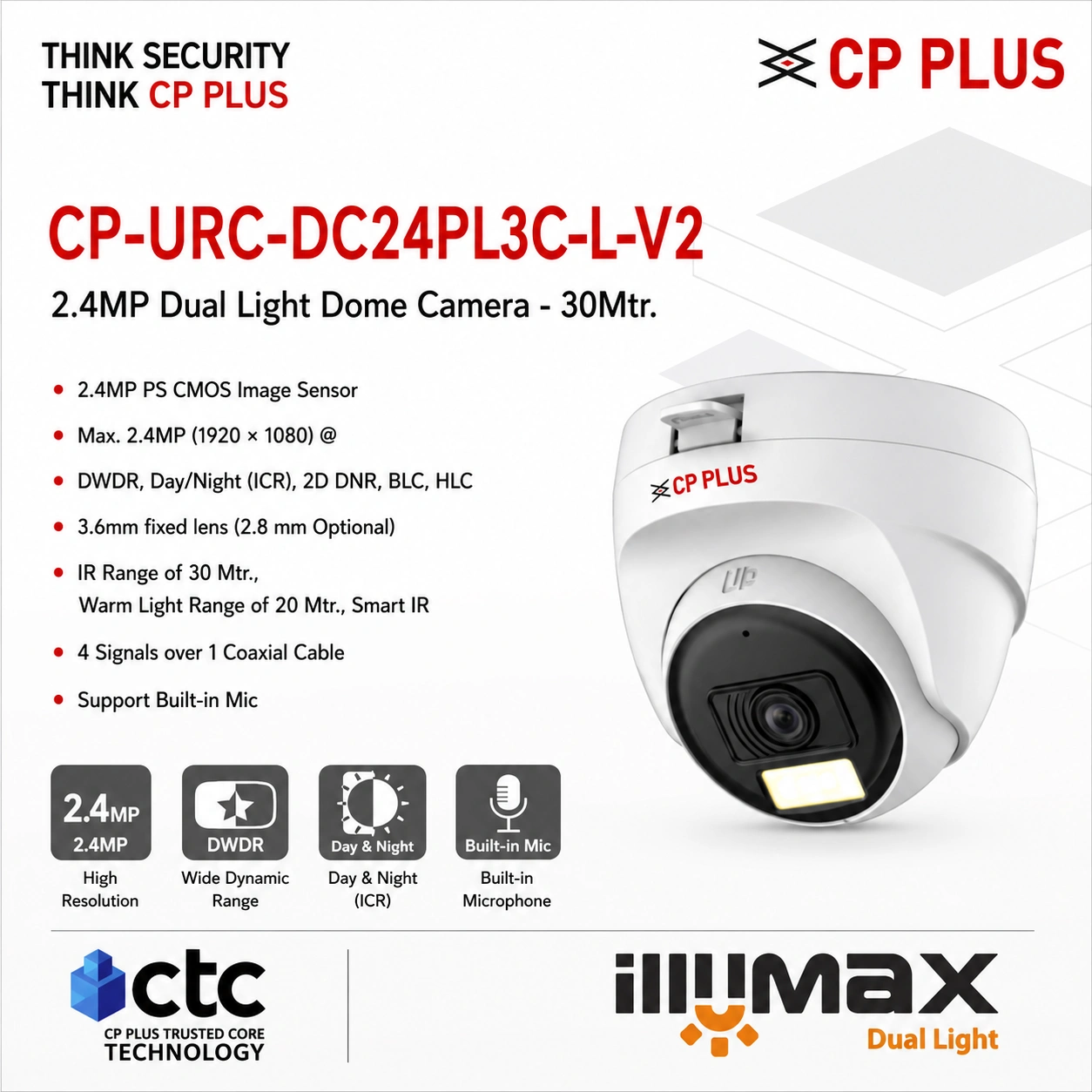

CP PLUS CP-URC-DC24PL3C-L-V2 2.4MP Dual Light Dome Camera | 30M Smart IR | 20M Warm Light | Built-in Mic | 4-in-1 HD Analog Camera
Key Features
- 2.4MP Progressive Scan CMOS Image Sensor
- Full HD 1080P Video Output
- Dual Light Technology (IR + Warm Light)
- 30 Meter Smart IR Night Vision
- 20 Meter Warm Light Full-Color Night Vision
- Built-in Microphone for Audio Surveillance
- DWDR (Digital Wide Dynamic Range)
- 2D Digital Noise Reduction (2D DNR)
- Day/Night ICR Switching
- Smart IR & Warm Light Modes
- 3.6mm Fixed Lens (2.8mm Optional)
- 4 Video Signals over Single Coaxial Cable
- CVI / TVI / AHD / CVBS Switchable Output
- Privacy Mask Support (Up to 8 Areas)
- Compact Dome Design
Technical Specifications
| Specification | Details |
|---|---|
| Brand | CP PLUS |
| Model | CP-URC-DC24PL3C-L-V2 |
| Camera Type | HD Analog Dual Light Dome Camera |
| Image Sensor | 2.4MP Progressive Scan CMOS |
| Maximum Resolution | 1920 × 1080 (Full HD) |
| Lens | 3.6mm Fixed Lens (2.8mm Optional) |
| Lens Type | Fixed Focal |
| Lens Mount | M12 |
| Maximum Aperture | F2.0 |
| Viewing Angle | 3.6mm: H 80°, V 43°, D 94° • 2.8mm: H 100°, V 54°, D 117° |
| Minimum Illumination | 0.02 Lux (Color), 0.002 Lux (B/W), 0 Lux with IR |
| IR Distance | Up to 30 Meters |
| Warm Light Distance | Up to 20 Meters |
| IR Mode | Smart IR & Warm Light, IR Only, Warm Light Only |
| Day/Night | Auto (ICR) / Color / B&W |
| Image Enhancement | DWDR, BLC, HLC, 2D DNR |
| White Balance | Auto, Area White Balance |
| Gain Control | Auto / Manual |
| S/N Ratio | Greater than 55 dB |
| Video Output | CVI / TVI / AHD / CVBS (Switchable) |
| Frame Rate | Up to 1080P @ 30fps |
| Built-in Audio | Yes (Built-in Microphone) |
| Privacy Mask | Up to 8 Configurable Areas |
| Mirror Function | Supported |
| DORI Distance (3.6mm) | Detect: 55m • Observe: 22m • Recognize: 11m • Identify: 5.5m |
| Angle Adjustment | Pan: 0°–360° • Tilt: 0°–78° • Rotation: 0°–360° |
| Power Supply | 12V DC ±30% |
| Power Consumption | Maximum 2.1W |
| Operating Temperature | -40°C to +60°C |
| Operating Humidity | Less than 95% RH |
| Dimensions | 85 × 77.1 mm |
| Weight | 110 g |
Product Description
The CP PLUS CP-URC-DC24PL3C-L-V2 is a 2.4MP Full HD Dual Light Dome Camera that delivers reliable indoor surveillance with enhanced nighttime visibility and built-in audio recording. Featuring a 2.4MP Progressive Scan CMOS sensor, 30-meter Smart IR, and 20-meter Warm Light, it automatically switches between infrared and warm illumination to provide clear monochrome or full-color images based on ambient lighting conditions.
Equipped with a built-in microphone, DWDR, 2D Digital Noise Reduction, and a 3.6mm fixed lens, this camera captures both high-quality video and audio for improved security monitoring. Supporting CVI, TVI, AHD, and CVBS video formats over a single coaxial cable, it offers excellent compatibility with a wide range of HD DVRs, making it ideal for homes, offices, retail outlets, schools, and commercial installations.
Applications
- Homes & Apartments
- Offices & Corporate Buildings
- Retail Stores & Showrooms
- Educational Institutions
- Hospitals & Clinics
- Hotels & Restaurants
- Banks & Financial Offices
- Reception & Lobby Areas
- Indoor Corridors
- Commercial Surveillance Systems
Package Contents
- 1 × CP PLUS CP-URC-DC24PL3C-L-V2 2.4MP Dual Light Dome Camera
- Mounting Screws
- Installation Guide
