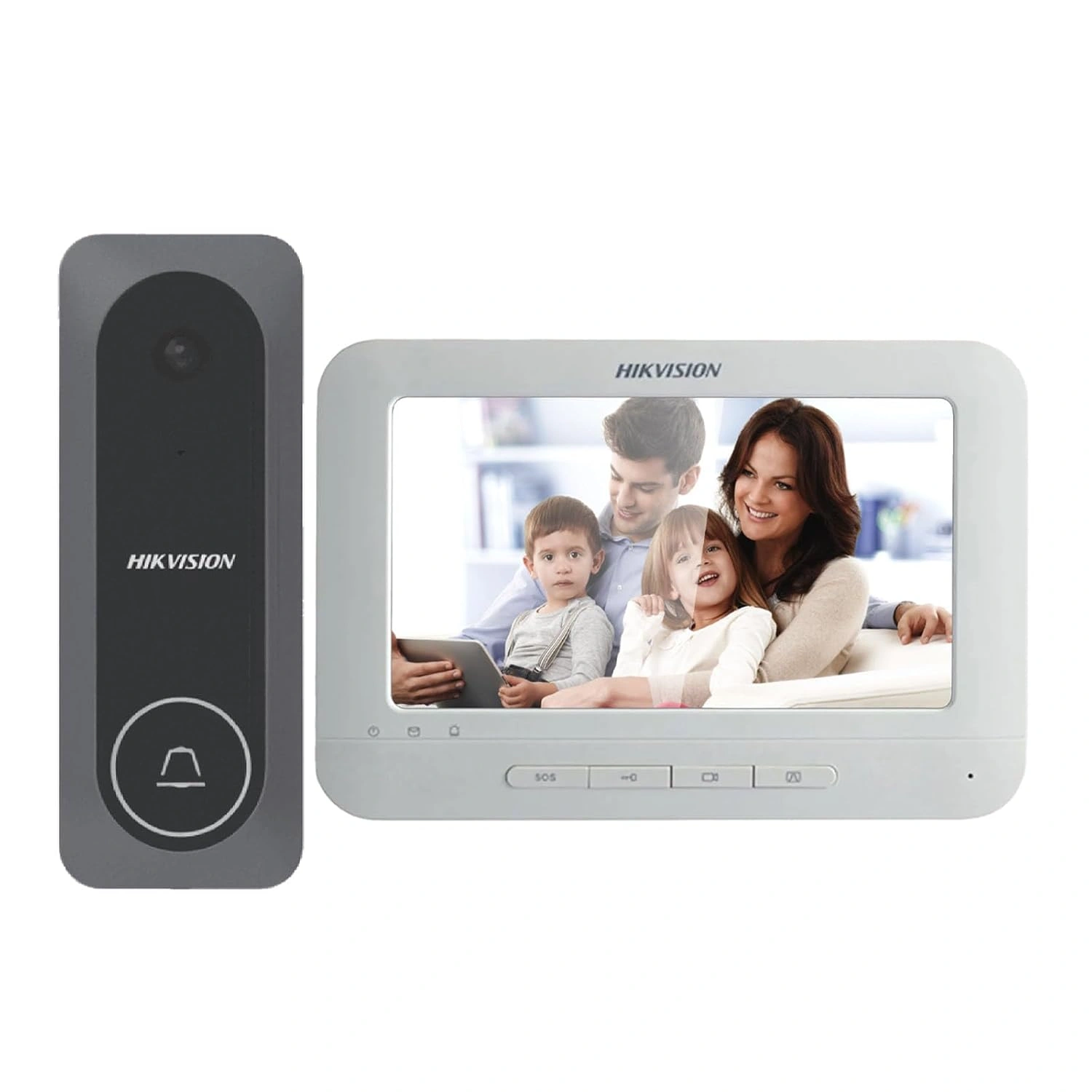

HIKVISION DS-KIS205T Villa Video Intercom Kit | 7" Monitor | 2MP Outdoor Station | 4-Wire
Key Features

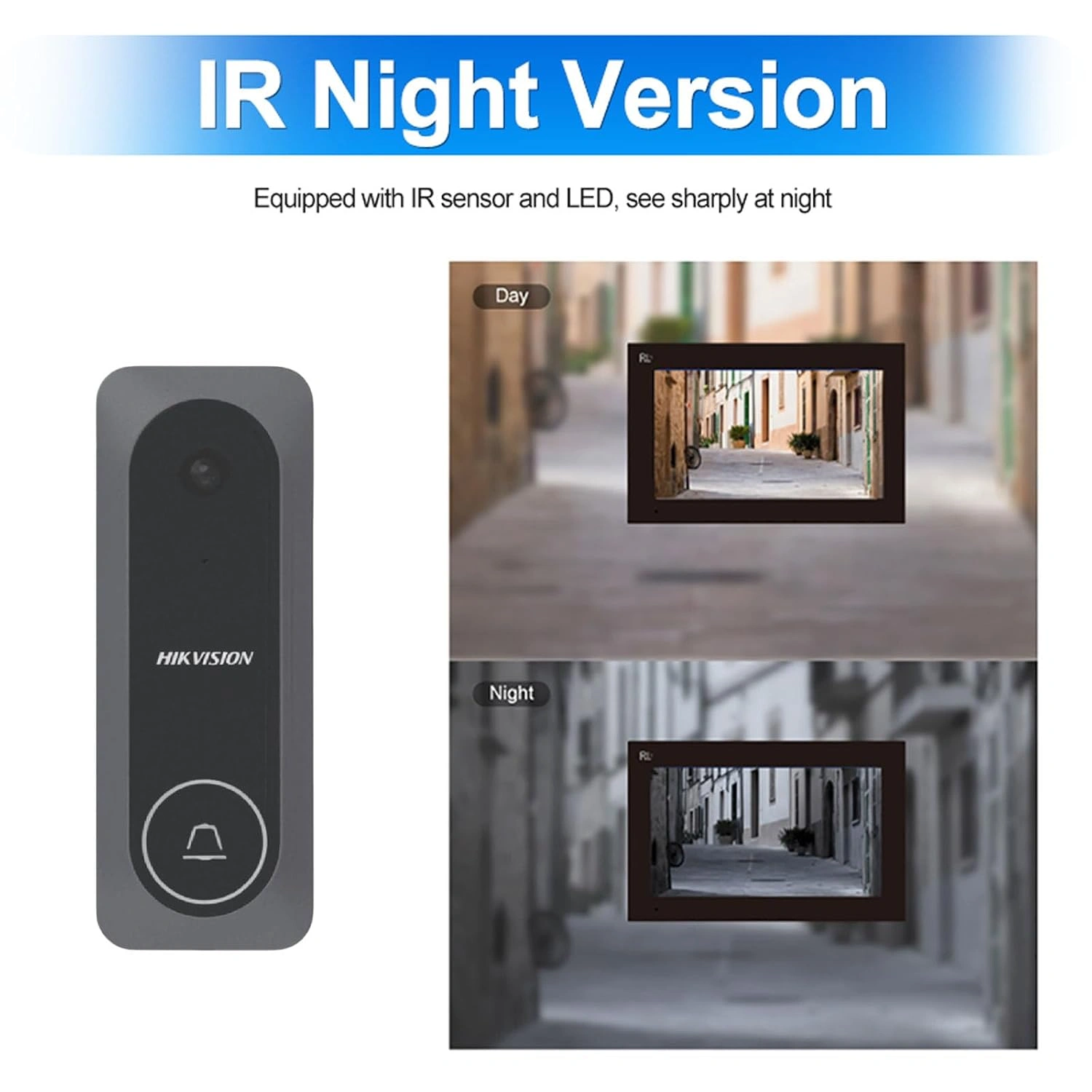

- Clear 1080p visitor video with infrared night vision
- Built-in microphone and speaker for two-way communication
- Adjustable brightness, contrast, volume and ringtone
- Connect up to 2 calling panels, with 1 lock per panel
- Expandable to 3 indoor monitors
- Wall-mountable indoor monitor and outdoor station
- Wired 4-wire connection for reliable communication
Technical Specifications
| Specification | Details |
|---|
| Brand | HIKVISION |
| Available Models | DS-KIS205T Grey / DS-KIS205T Black |
| Product Type | 4-Wire Villa Video Intercom Kit |
| Outdoor Camera | 2MP CMOS |
| Video Resolution | 1920 × 1080 @ 25fps |
| Outdoor Camera FOV | H 66.2° / V 37.2° |
| Night Vision | IR |

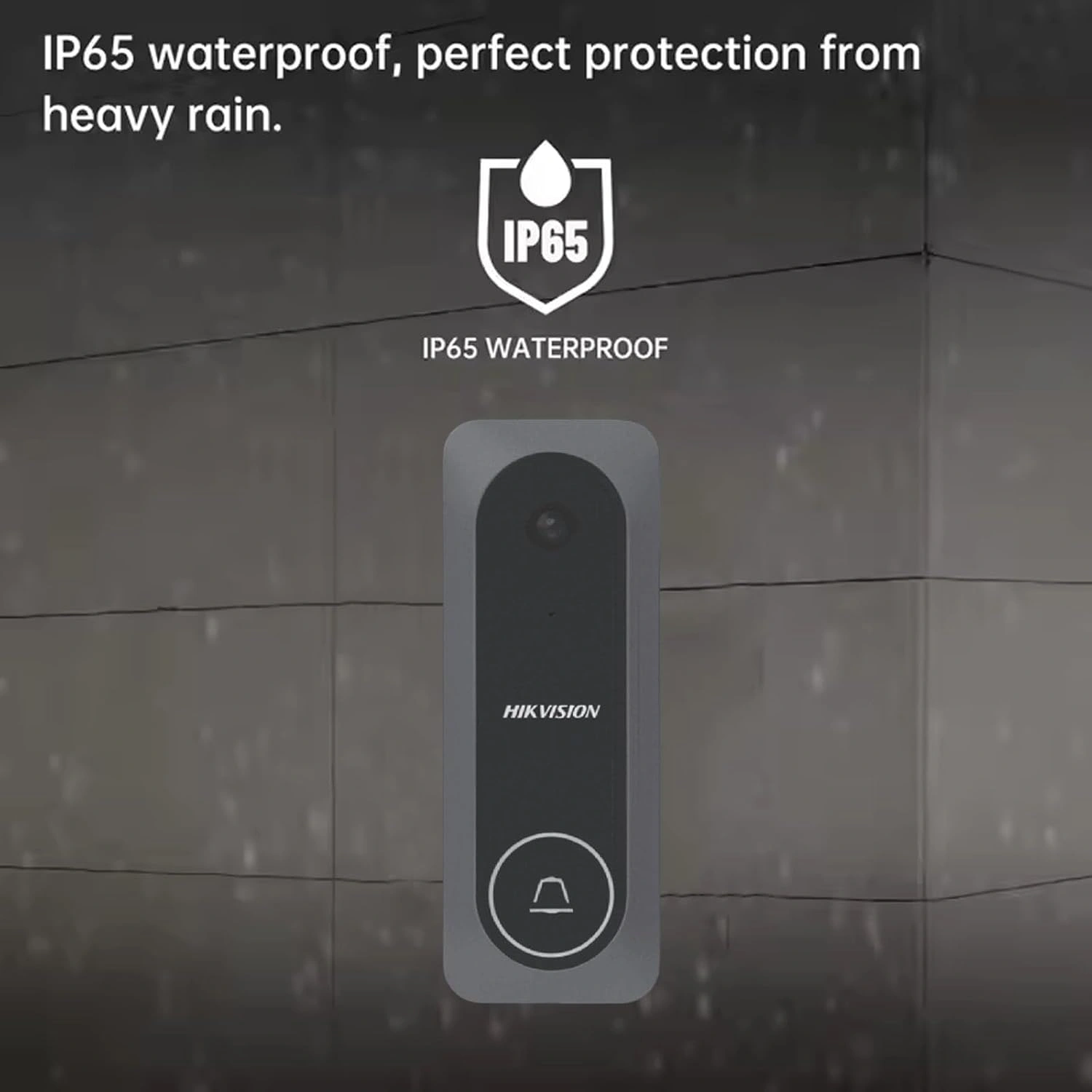

| Outdoor Protection | IK07 / IP65 |

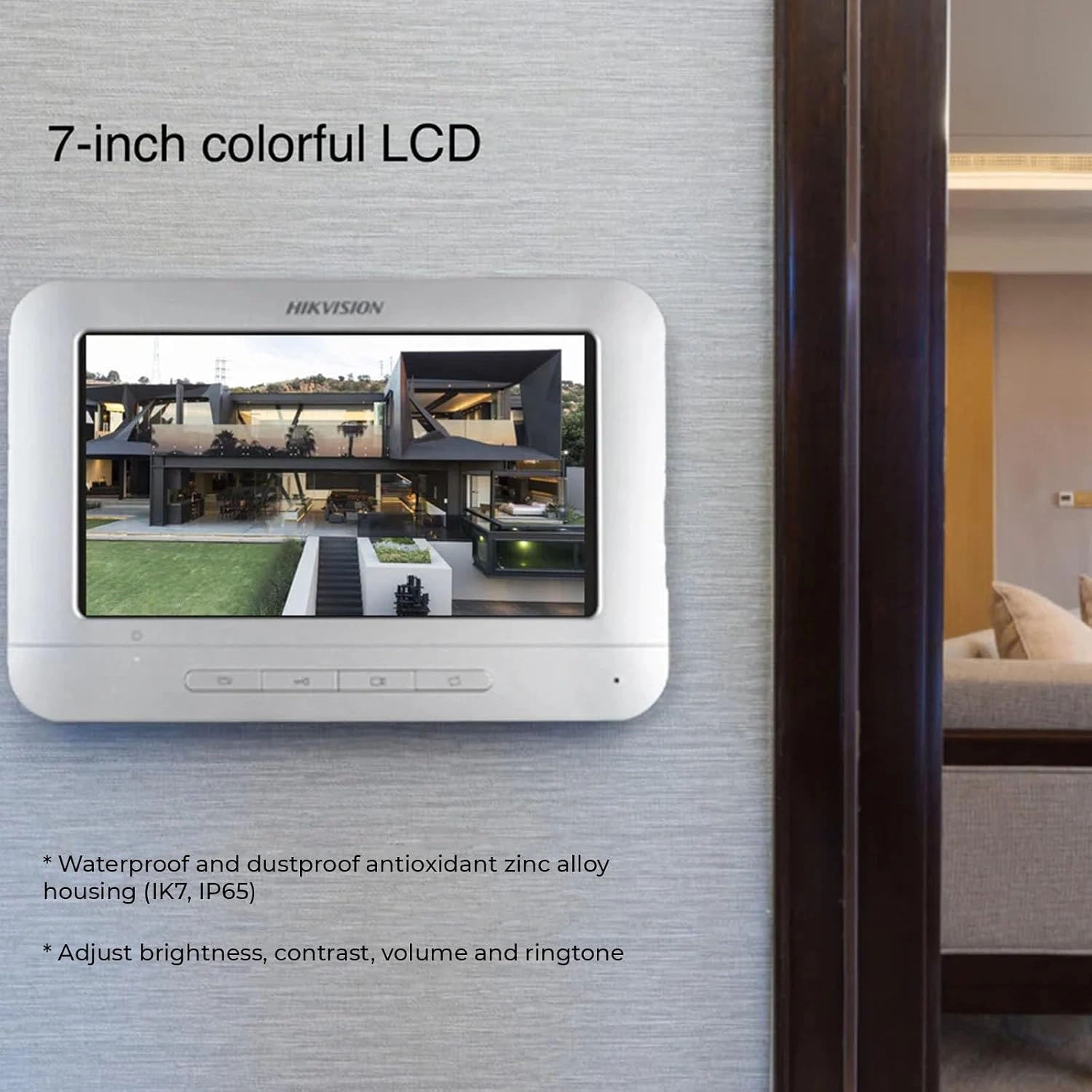

| Indoor Monitor | 7" Colour TFT LCD |
| Monitor Resolution | — |
| Monitor Operation | Physical Buttons |
| Photo Storage | Up to 200 Photos |
| Two-Way Audio | Supported |
| Calling Panels | Up to 2 |
| Indoor Monitors | Up to 3 |
| Additional Camera | 1 Analog Camera per Monitor |
| Door Unlock | Supported |
| Audio Input | Built-in Omnidirectional Microphone |
| Audio Output | Built-in Loudspeaker |
| Connection | 4-Wire |
| Power Supply | 12V DC |
| Power Consumption | ≤5W |
| Installation | Wall Mount |
| Operating Temperature | –10°C to +55°C |
| Outdoor Station Dimensions | 128 × 42 × 24.8 mm |
| Indoor Monitor Dimensions | 195.8 × 132.8 × 18.39 mm |
Product Description
The HIKVISION DS-KIS205T Villa Analog Video Intercom Kit is a 2MP Full HD 4-wire video door phone system with a 7-inch colour indoor monitor, IR night vision, two-way audio and one-touch door unlocking. It supports up to 2 calling panels and 3 indoor monitors, making it suitable for villas, homes and small offices.
Ideal For
- Villas & Independent Homes
- Apartments
- Bungalows
- Small Offices
- Residential Entrance Security
