CP PLUS : UNR-108F1
Available Offer
Share :

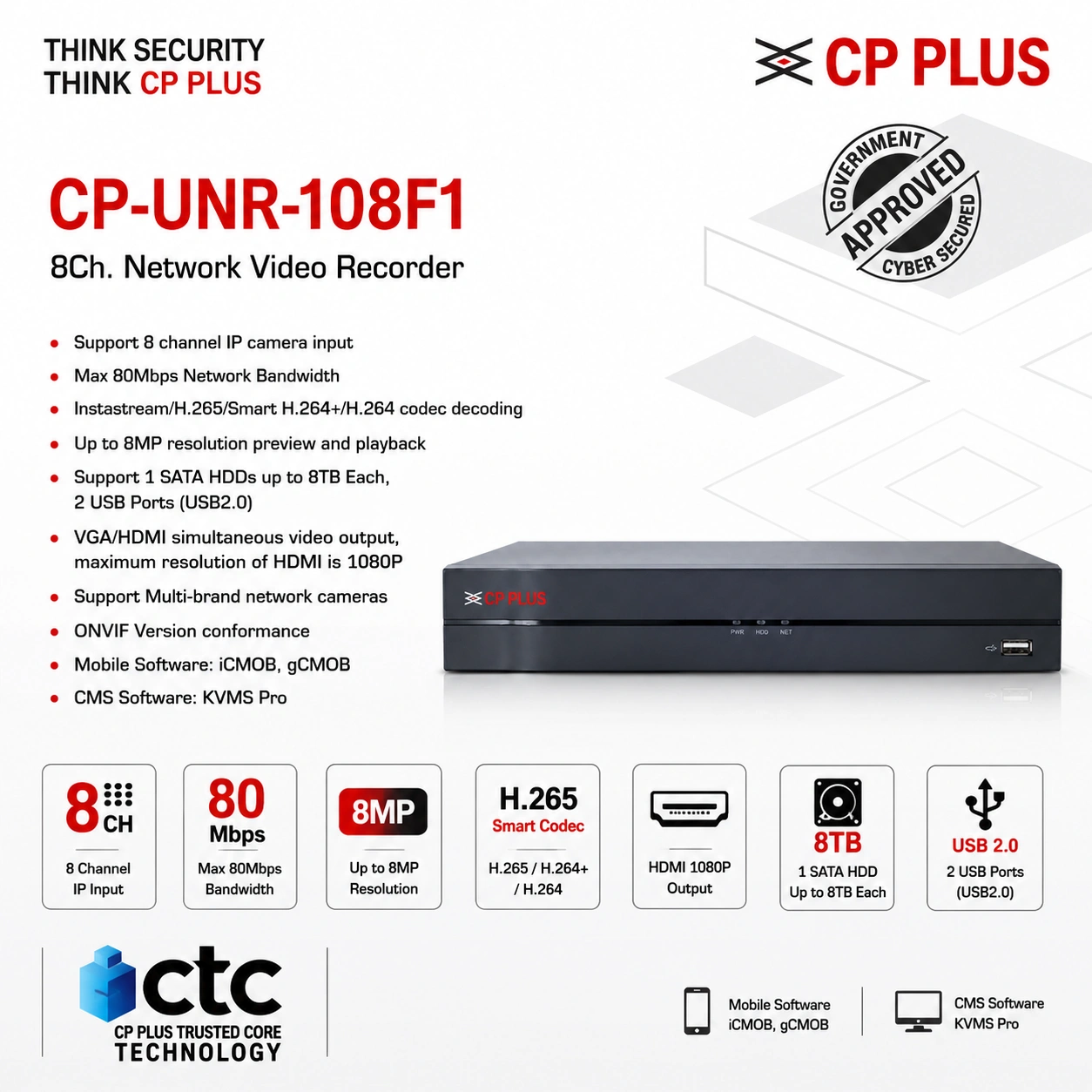

CP PLUS UNR-108F1 8 Channel Network Video Recorder (NVR) | 8MP | H.265 | 80Mbps | 1 SATA | HDMI & VGA
Key Features
- Supports Up to 8 IP Camera Channels
- Up to 8MP Recording, Live View & Playback
- Instastream, H.265, Smart H.264+ & H.264 Decoding
- 80Mbps Incoming Network Bandwidth
- HDMI & VGA Simultaneous Video Output
- Full HD 1080P HDMI Output
- Supports Multi-Brand ONVIF IP Cameras
- 1 SATA Interface Supporting HDD up to 8TB
- Motion Detection Recording
- Manual, Scheduled & Alarm Recording Modes
- USB Backup Support
- Mobile Viewing via iCMOB & gCMOB
- CMS Software Support: KVMS Pro
- Embedded Linux Operating System
Technical Specifications
| Specification | Details |
|---|---|
| Brand | CP PLUS |
| Model | UNR-108F1 |
| Product Type | Network Video Recorder (NVR) |
| Channels | 8 Channel IP Camera Input |
| Operating System | Embedded Linux |
| Processor | Industrial-grade Embedded Processor |
| Maximum Recording Resolution | Up to 8MP |
| Video Compression | Instastream, H.265, Smart H.264+, H.264 |
| Incoming Bandwidth | 80 Mbps |
| Recording Bandwidth | 80 Mbps |
| Forwarding Bandwidth | 60 Mbps |
| Display Split | 1 / 4 / 8 / 9 |
| Video Output | HDMI + VGA (Simultaneous) |
| HDMI Resolution | Up to 1080P |
| HDD Support | 1 × SATA 2.0 HDD (Up to 8TB) |
| USB Ports | 2 × USB 2.0 (Front & Rear) |
| Ethernet | 1 × RJ-45 (10/100 Mbps) |
| Recording Modes | Manual, Motion Detection, Alarm, Scheduled |
| Playback Functions | Play, Pause, Stop, Fast Forward, Rewind, Frame-by-Frame, Backup |
| Backup | USB Storage Device |
| Mobile Apps | iCMOB, gCMOB |
| CMS Software | KVMS Pro |
| Supported Protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, DHCP, DNS, P2P, ONVIF Profile S/G/T, CGI, SDK |
| Power Supply | DC 12V, 1.5A |
| Power Consumption | Less than 10W (Without HDD) |
| Operating Temperature | -10°C to +45°C |
| Dimensions | 260 × 225 × 47.6 mm |
| Weight | 0.81 kg (Without HDD) |
Product Description
The CP PLUS UNR-108F1 is a high-performance 8 Channel Network Video Recorder (NVR) designed for reliable IP surveillance in homes, offices, retail stores, and commercial installations. Supporting up to 8MP IP cameras, it delivers crystal-clear live viewing, recording, and playback while utilizing Instastream, H.265, and Smart H.264+ compression technologies to reduce storage and bandwidth consumption.
With 80Mbps incoming bandwidth, HDMI and VGA simultaneous video output, ONVIF compatibility, and support for multi-brand IP cameras, this recorder offers seamless integration into existing surveillance systems. The 1 SATA HDD bay supports up to 8TB of storage, while remote monitoring through iCMOB, gCMOB, and KVMS Pro allows users to access their security system anytime, anywhere.
Applications
- Home Security Systems
- Offices & Corporate Buildings
- Retail Shops & Supermarkets
- Schools & Educational Institutions
- Hospitals & Clinics
- Warehouses & Godowns
- Hotels & Restaurants
- Banks & Financial Institutions
- Apartment Complexes
- Small & Medium Business Surveillance
Package Contents
- 1 × CP PLUS UNR-108F1 8 Channel Network Video Recorder
- Power Adapter
- Mouse
- Quick Installation Guide
