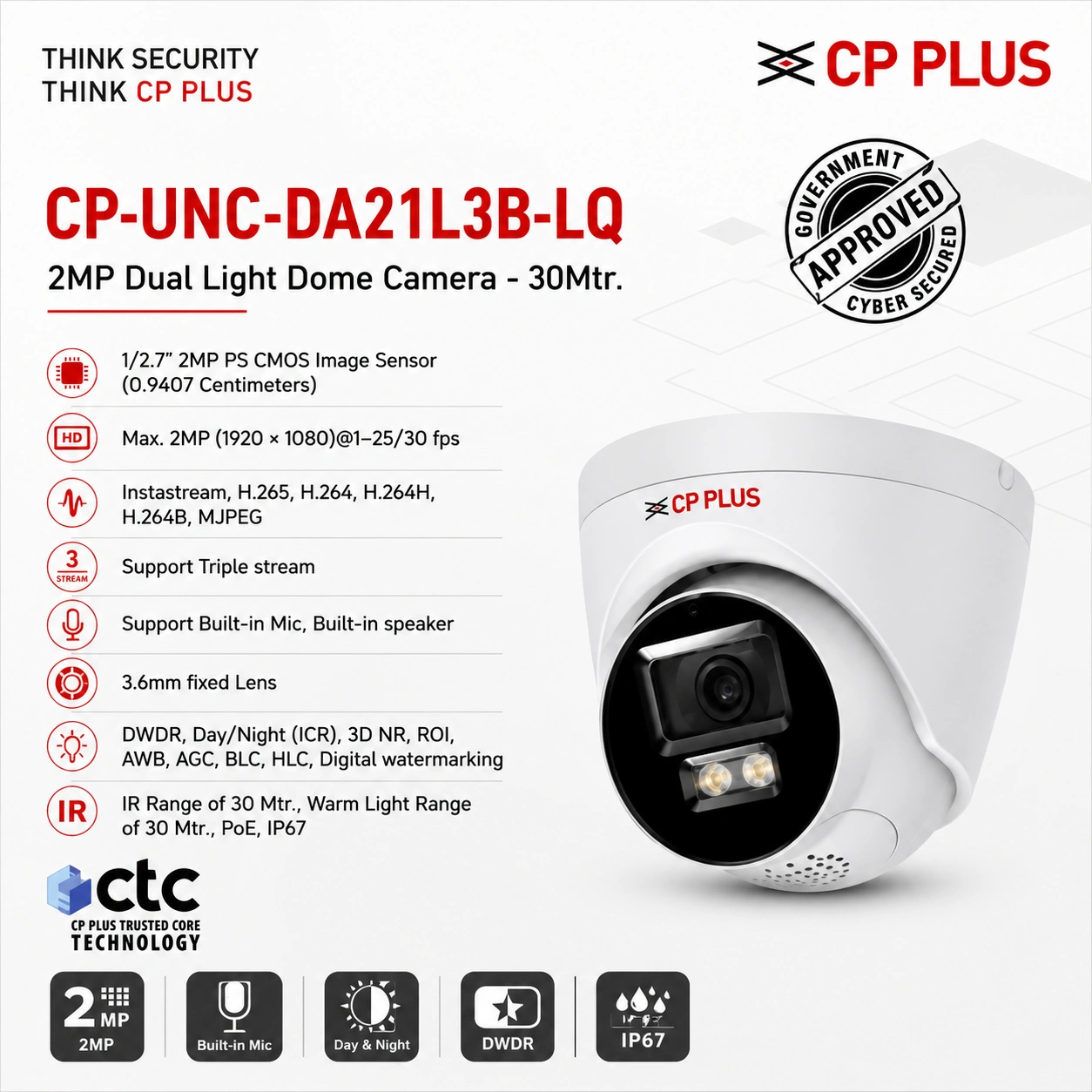

CP PLUS CP-UNC-DA21L3B-LQ 2MP Dual Light IP Dome Camera | 30M IR | Built-in Mic & Speaker | PoE
Key Features
- 2MP Full HD (1920 × 1080) Resolution
- 1/2.7" PS CMOS Image Sensor
- H.265, H.264, H.264H, H.264B & MJPEG Compression
- Instastream Technology for Optimized Bandwidth
- Triple Video Stream Support
- Smart Dual Light with 30m IR & 30m Warm Light
- Built-in Microphone & Speaker
- Intelligent Motion Detection (Human & Vehicle Classification)
- DWDR, 3D Noise Reduction, ROI, BLC & HLC
- Smart Search with Compatible NVRs
- ONVIF Compatible
- PoE (IEEE 802.3af) & 12V DC Power
- IP67 Weatherproof Design
Technical Specifications
| Specification | Details |
|---|---|
| Brand | CP PLUS |
| Model | CP-UNC-DA21L3B-LQ |
| Camera Type | IP Dual Light Dome Camera |
| Image Sensor | 1/2.7" 2MP PS CMOS |
| Resolution | 2MP (1920 × 1080) |
| Lens | 3.6mm Fixed Lens |
| Lens Mount | M12 |
| Aperture | F1.4 |
| Viewing Angle | H: 86°, V: 46°, D: 103° |
| Video Compression | Instastream, H.265, H.264, H.264H, H.264B, MJPEG |
| Stream | Triple Stream |
| Frame Rate | Up to 30fps @ 2MP |
| Night Vision | Smart IR & Warm Light |
| IR Distance | Up to 30 Meters |
| Warm Light Distance | Up to 30 Meters |
| Audio | Built-in Microphone & Speaker |
| Smart Features | Human & Vehicle Detection, Motion Detection, ROI, Smart Search |
| Image Enhancement | DWDR, 3D NR, AWB, AGC, BLC, HLC |
| Ethernet | RJ-45 (10/100 Mbps) |
| Network Protocols | IPv4, IPv6, HTTP, HTTPS, FTP, ONVIF, RTSP, RTP, TCP/IP, UDP, DHCP, SMTP, NTP and more |
| Browser Support | Chrome, Firefox, Internet Explorer |
| Storage Memory | 128MB RAM, 128MB ROM |
| Power Supply | 12V DC / PoE (IEEE 802.3af) |
| Power Consumption | Max. 10W (PoE), Max. 8.5W (12V DC) |
| Operating Temperature | -40°C to +60°C |
| Operating Humidity | ≤95% RH |
| Housing | Metal + Plastic |
| Dimensions | 100.9 × 109.9 mm |
| Weight | 320 g |
Product Description
The CP PLUS CP-UNC-DA21L3B-LQ is a 2MP Full HD IP Dual Light Dome Camera designed for intelligent surveillance in residential, commercial, and industrial environments. Powered by a 1/2.7" CMOS sensor, Instastream technology, and H.265 compression, it delivers high-quality video while reducing bandwidth and storage requirements.
Equipped with 30-meter IR night vision, 30-meter warm light illumination, built-in microphone and speaker, and AI-powered human and vehicle detection, the camera provides reliable day-and-night monitoring with enhanced security. Support for PoE, triple-stream video, ONVIF compatibility, and advanced image optimization makes it an excellent choice for modern IP surveillance systems.
Applications
- Homes & Apartments
- Offices & Corporate Buildings
- Retail Stores
- Warehouses
- Banks & Financial Institutions
- Schools & Colleges
- Hospitals
- Hotels
- Parking Areas
- Industrial Facilities
Package Contents
- 1 × CP PLUS CP-UNC-DA21L3B-LQ 2MP IP Dual Light Dome Camera
- Mounting Kit
- Quick Installation Guide
