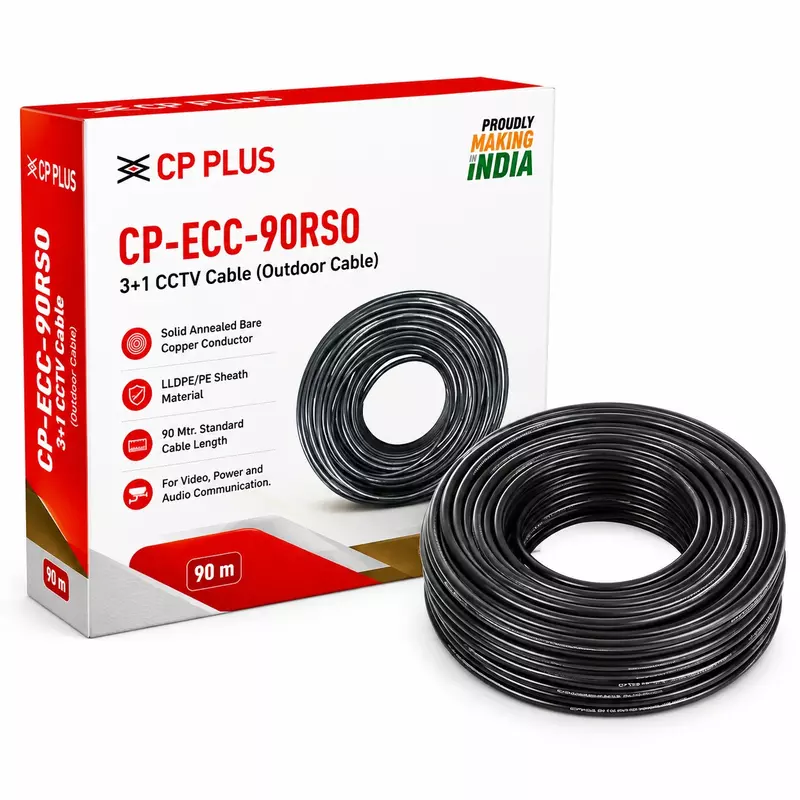

CP PLUS 3+1 Outdoor CCTV Cable | 90 Meter | Bare Copper | CP-ECC-90RSO

Key Features

• 3+1 Composite CCTV Cable
• 90 Meter Cable Length
• Solid Annealed Bare Copper Video Conductor
• LLDPE/PE Outer Sheath for Outdoor Use
• Supports Video, Power & Audio Transmission
• Weather-Resistant Construction

---

Technical Specifications

Specification	Details
Brand	CP PLUS
Model	CP-ECC-90RSO
Product Type	3+1 Outdoor CCTV Cable
Cable Length	90 Meters
Conductor Material	Solid Annealed Bare Copper
Video Core Wire Diameter	0.52 ± 0.02 mm
Video Core Insulation Diameter	1.5 mm (Nominal)
Video Core Strands	48
Power Core	14 Strands
Power Conductor Type	Stranded
Video Conductor Type	Solid
Braiding Material	Aluminium Alloy
Insulation Material	LLDPE / PE
Overall Cable Diameter	5.6 mm
Sheath Thickness	1.3 ± 0.05 mm
Applications	Video, Power & Audio Communication

---

Product Description

The CP PLUS CP-ECC-90RSO is a 90-meter 3+1 outdoor CCTV cable engineered for dependable transmission of video, power, and audio signals in outdoor surveillance installations. It features a solid annealed bare copper video conductor, stranded power cores, and aluminium alloy braided shielding to ensure stable signal quality with minimal interference. The LLDPE/PE weather-resistant outer sheath offers excellent durability against outdoor conditions, making it an ideal choice for residential, commercial, and industrial CCTV projects.

---

Applications

• Outdoor CCTV Camera Installations
• Analog CCTV Surveillance Systems
• Residential Security
• Commercial Buildings
• Warehouses
• Parking Areas
• Industrial Surveillance
• Perimeter Security Systems

---

Package Contents

• 1 × CP PLUS CP-ECC-90RSO 3+1 Outdoor CCTV Cable (90 Meter Roll)
