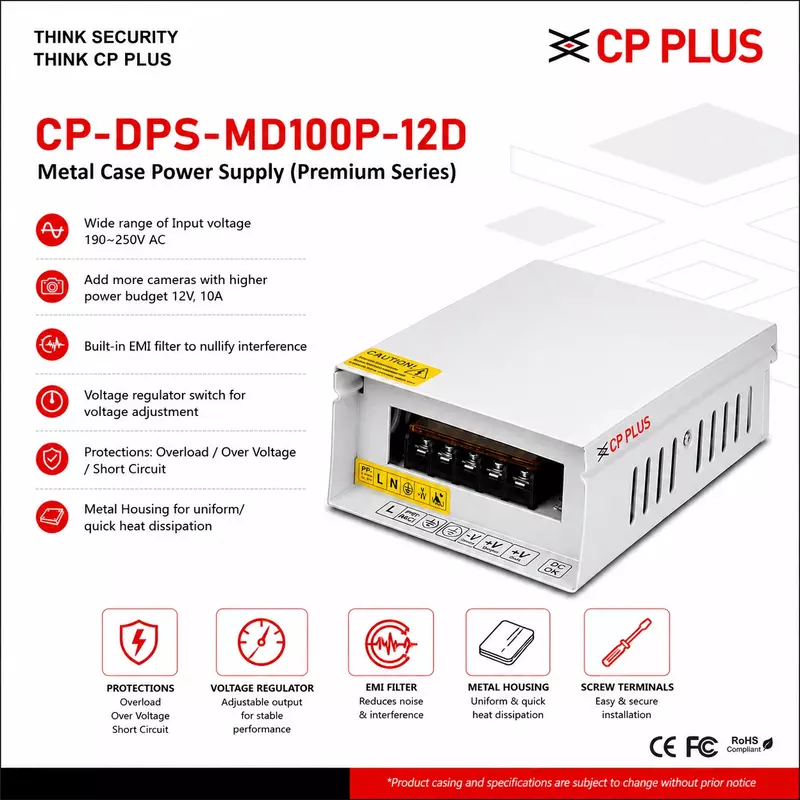

CP PLUS 12V 10A Metal SMPS Power Supply | 120W Premium Series | CP-DPS-MD100P-12D
Key Features
- Stable 12V DC Output
- 10A High Current Capacity
- 120W Rated Power
- Wide AC Input Range (190–250V)
- Built-in EMI Filter for Reduced Interference
- Adjustable Output Voltage (Cable Compensation)
- Metal Housing for Better Heat Dissipation
- Power ON LED Indicator
- Short Circuit Protection
- Over Voltage Protection
- Over Current Protection
- Easy Screw Terminal Connections
Technical Specifications
| Specification | Details |
|---|
| Brand | CP PLUS |
| Model | CP-DPS-MD100P-12D |
| Product Type | Metal Case SMPS Power Supply |
| Input Voltage | 190–250V AC |
| Input Frequency | 47–63Hz |
| Output Voltage | 12V DC |
| Output Current | 10A |
| Rated Power | 120W |
| Efficiency | 80% |
| Output Ports | 1 |
| Protection | Short Circuit, Over Voltage & Over Current |
| EMI Filter | Built-in |
| Cable Compensation | Supported (Trimmer Pot) |
| Power Indicator | LED |
| Mounting | Wall Mount / Desktop |
| Operating Temperature | -10°C to +40°C |
| Dimensions | 187 × 103 × 52 mm |
Product Description
The CP PLUS CP-DPS-MD100P-12D is a 12V 10A (120W) premium metal SMPS power supply designed to deliver stable and reliable power for CCTV cameras, DVRs, NVRs, LED lighting, and other 12V DC devices. Its wide input voltage range, built-in EMI filter, and adjustable cable compensation ensure consistent performance even in demanding environments. The rugged metal enclosure provides efficient heat dissipation, while integrated short circuit, over voltage, and over current protection help safeguard connected equipment for long-term reliability.
Applications
- CCTV Camera Systems
- DVR & NVR Power Supply
- LED Strip Lighting
- Access Control Systems
- Alarm Systems
- Home & Office Security
- Industrial Electronics
- 12V DC Devices
Package Contents
- 1 × CP PLUS CP-DPS-MD100P-12D Metal SMPS Power Supply
- User Manual
