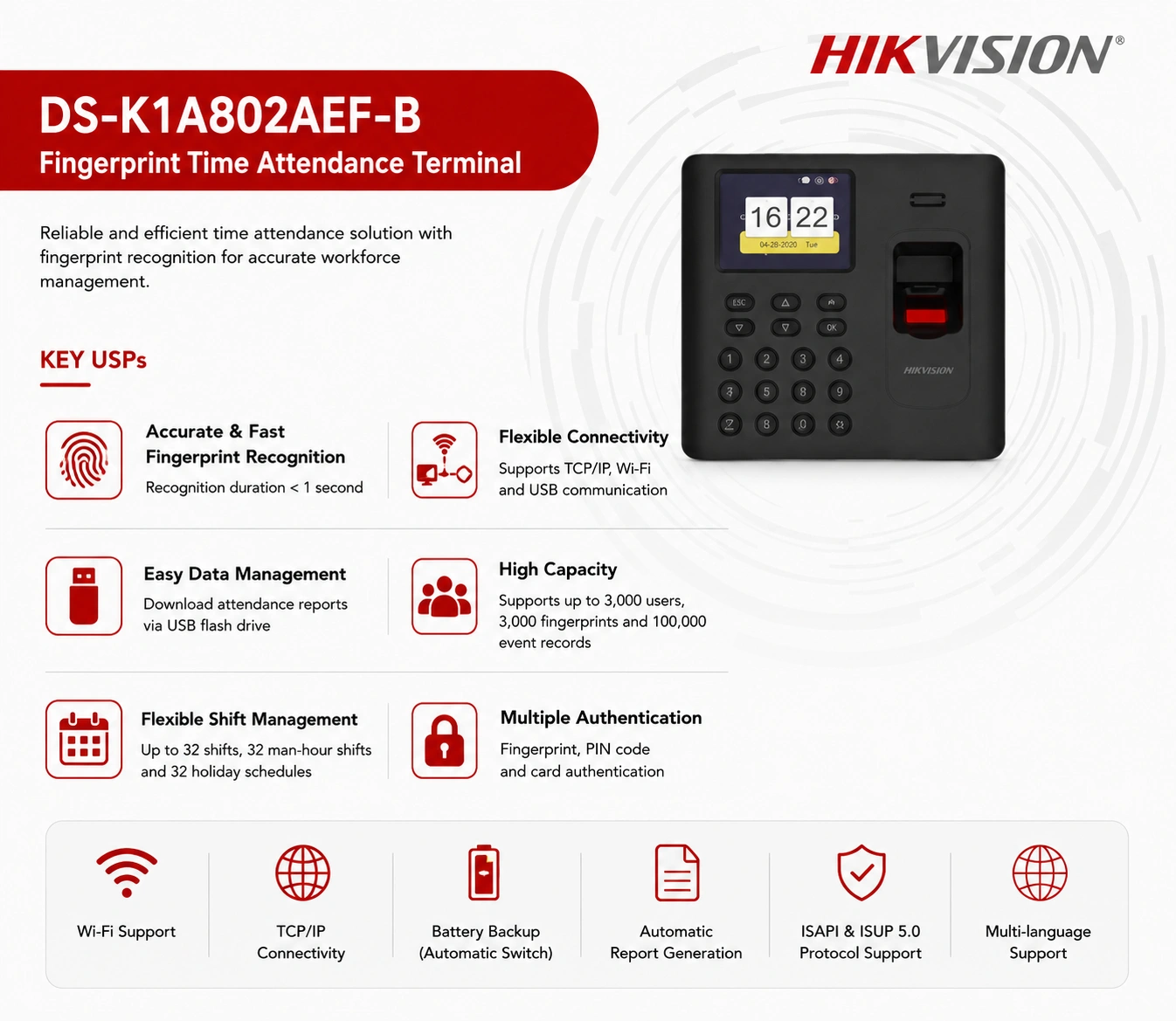

HIKVISION DS-K1A802AEF-B Fingerprint Attendance Machine | 3,000 Fingerprints + Cards
Key Features
- Optical fingerprint authentication with 1:1 and 1:N matching
- EM card reading distance up to 5 cm
- Fingerprint and card authentication
- Automatic event recording for employee attendance
- USB interface for data management
- Wired 10/100 Mbps Ethernet and Wi-Fi connectivity
- Built-in battery support for backup operation
Technical Specifications
| Specification | Details |
|---|
| Brand | HIKVISION |
| Model | DS-K1A802AEF-B |
| Product Type | Fingerprint & Card Time Attendance Terminal |
| Display | 2.4" LCD-TFT |
| Fingerprint Capacity | 3,000 |
| Card Capacity | 3,000 |
| Event Capacity | 100,000 |
| Card Type | EM Card |
| Card Reading Distance | 0–5 cm |
| Card Recognition Time | <1 sec |
| Fingerprint Module | Optical |
| Fingerprint Recognition | 1:1 / 1:N |
| Fingerprint Recognition Time | <1 sec |
| Network | TCP/IP, 10/100 Mbps |
| Wi-Fi | Supported |
| USB | 1 × USB |
| Battery Backup | Supported |
| Protocols | ISUP 5.0, ISAPI |
| Power Supply | 5V DC / 1A |
| Installation | Surface Mount / Desk Stand |
| Application | Indoor |
| Operating Temperature | –10°C to +55°C |
| Dimensions | 140 × 155 × 30 mm |
| Colour | Black |
Product Description
The HIKVISION DS-K1A802AEF-B is a fingerprint and EM card attendance machine designed for reliable employee time tracking. It stores up to 3,000 fingerprints, 3,000 cards and 100,000 attendance events, with fast authentication, Wi-Fi and TCP/IP connectivity, and backup battery support.
Ideal For
- Offices & Corporate Workplaces
- Retail Stores
- Factories & Warehouses
- Schools & Institutions
- Employee Attendance Systems
