CP PLUS : UNC-TA21L3C-Q
Available Offer
Share :

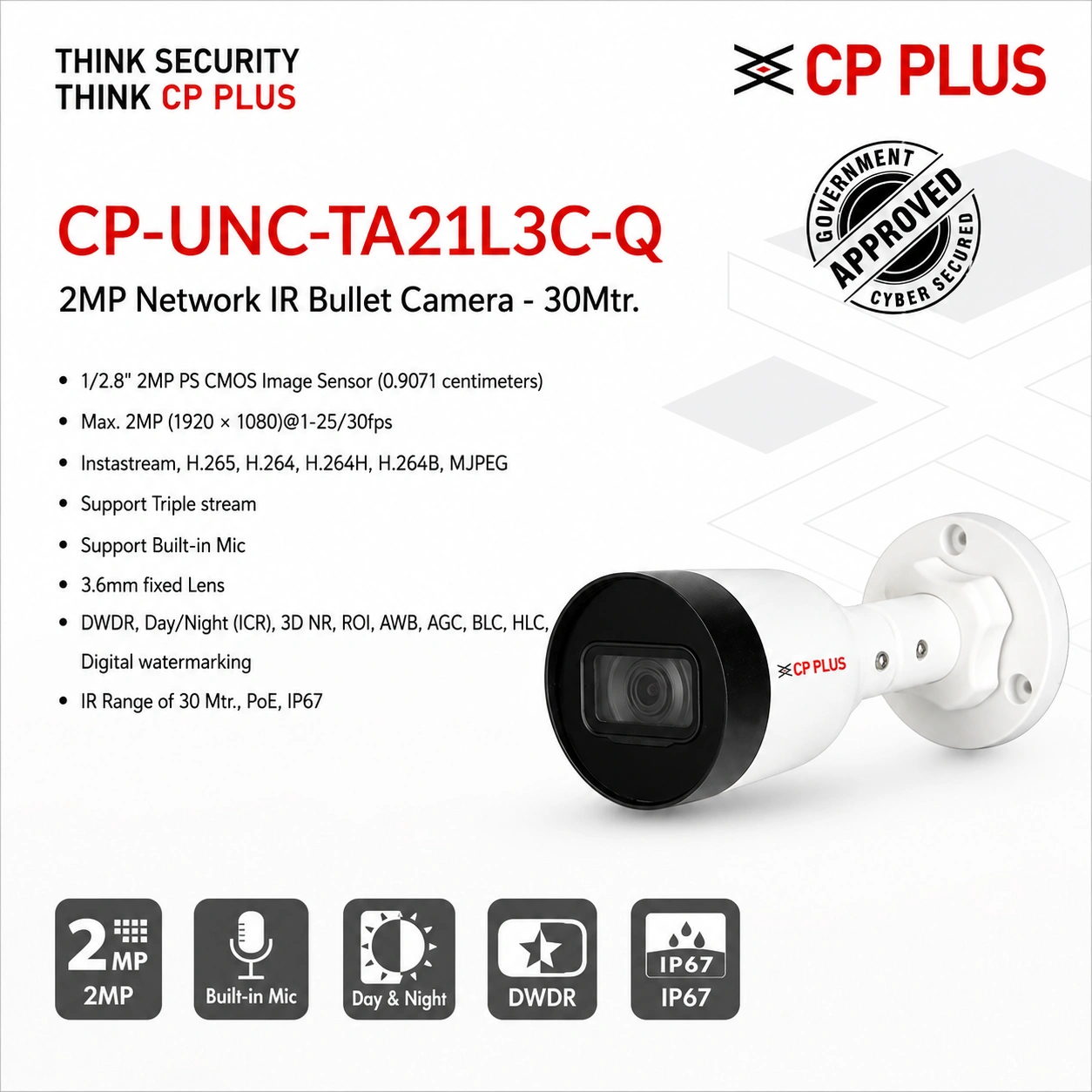

CP PLUS CP-UNC-TA21L3C-Q 2MP Network IR Bullet Camera | 30M IR | PoE | Built-in Mic | IP67
Key Features
- 2MP Full HD (1920 × 1080) Resolution
- 1/2.8" Progressive Scan CMOS Image Sensor
- Instastream, H.265 & H.264 Video Compression
- 30 Meter Smart IR Night Vision
- Built-in Microphone for Audio Recording
- AI Human Detection
- Triple Stream Video Support
- DWDR, 3D Noise Reduction, ROI, BLC & HLC
- Smart Search with Compatible CP PLUS NVRs
- Smart IR Technology
- PoE (IEEE 802.3af) Support
- ONVIF Profile S, G & T Compatible
- IP67 Weatherproof Metal Housing
Technical Specifications
| Specification | Details |
|---|---|
| Brand | CP PLUS |
| Model | CP-UNC-TA21L3C-Q |
| Camera Type | Network IR Bullet Camera |
| Image Sensor | 1/2.8" 2MP PS CMOS |
| Maximum Resolution | 1920 × 1080 (Full HD) |
| Lens | 3.6mm Fixed Lens |
| Lens Mount | M12 |
| Aperture | F2.0 |
| Viewing Angle | H: 86°, V: 47°, D: 103° |
| Video Compression | Instastream, H.265, H.264, H.264H, H.264B, MJPEG |
| Stream Capability | Triple Stream |
| Frame Rate | Up to 30fps @ 2MP |
| Night Vision | Smart IR |
| IR Distance | Up to 30 Meters |
| Audio | Built-in Microphone |
| AI Features | Human Detection, Motion Detection, Smart Search, ROI |
| Image Enhancement | DWDR, 3D NR, AWB, AGC, BLC, HLC |
| Network | RJ-45 (10/100 Mbps Ethernet) |
| Network Protocols | IPv4, IPv6, HTTP, HTTPS, RTSP, RTP, ONVIF, DHCP, SMTP, TLS 1.2, SSL and more |
| Browser Support | Chrome, Firefox, Internet Explorer |
| Memory | 128MB RAM, 128MB ROM |
| Power Supply | 12V DC / PoE (IEEE 802.3af) |
| Power Consumption | Max. 4.2W (PoE), Max. 3.3W (12V DC) |
| Weatherproof Rating | IP67 |
| Operating Temperature | -40°C to +60°C |
| Housing | Metal + Plastic |
| Dimensions | 162.6 × 70 × 70 mm |
| Weight | 220 g |
Product Description
The CP PLUS CP-UNC-TA21L3C-Q is a 2MP Full HD Network IR Bullet Camera designed to deliver reliable surveillance for residential, commercial, and industrial applications. Powered by a 1/2.8" Progressive Scan CMOS image sensor, Instastream technology, and H.265 video compression, it provides sharp Full HD video while reducing bandwidth consumption and storage requirements.
The camera features 30-meter Smart IR night vision for clear monitoring in complete darkness. With AI-powered Human Detection, a built-in microphone, Triple Stream support, PoE connectivity, and advanced image enhancement technologies including DWDR and 3D Noise Reduction, it offers dependable security performance. Its IP67 weatherproof housing makes it suitable for demanding indoor and outdoor surveillance environments.
Applications
- Residential Security
- Office Buildings
- Retail Stores
- Warehouses
- Schools & Colleges
- Hospitals
- Banks & ATMs
- Parking Areas
- Industrial Facilities
- Building Perimeter Surveillance
Package Contents
- 1 × CP PLUS CP-UNC-TA21L3C-Q 2MP Network IR Bullet Camera
- Mounting Kit
- Quick Installation Guide
