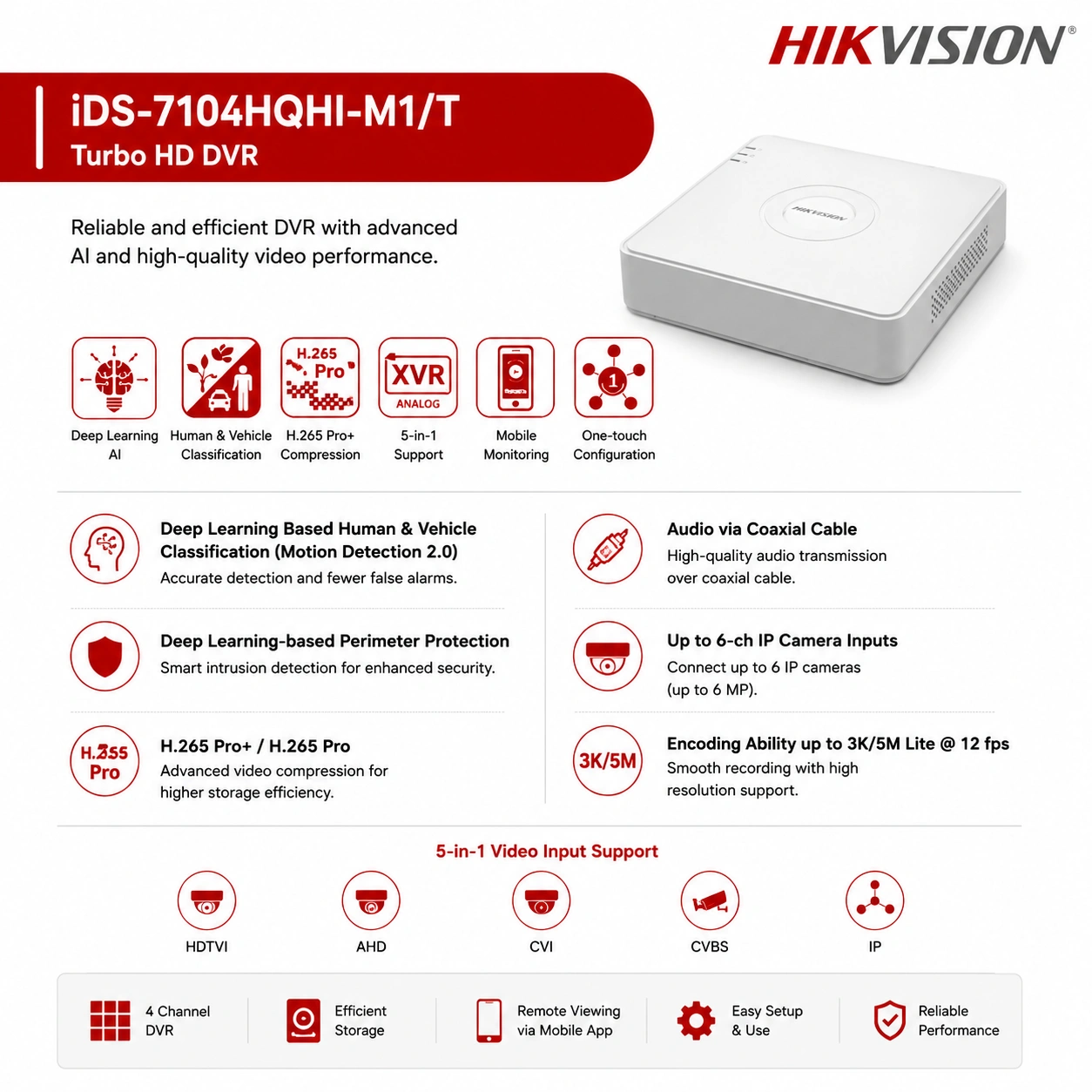

HIKVISION iDS-7104HQHI-M1/T 4-Channel 1080P Mini 1U AcuSense DVR | 5MP Lite | AI Human & Vehicle Detection
Key Features
- AI-powered human and vehicle filtering reduces false alarms.
- Deep-learning perimeter protection for enhanced surveillance.
- Facial detection and face-picture search.
- Supports multiple HD analog formats plus IP cameras.
- Enhanced IP mode supports up to 6 IP channels.
- HDMI and VGA simultaneous video output.
- Dual-stream recording for efficient network and storage usage.
- USB backup and optional Wi-Fi connectivity via USB dongle.
Technical Specifications
| Specification | Details |
|---|
| Brand | HIKVISION |
| Model | iDS-7104HQHI-M1/T |
| Product Type | 4-Channel AcuSense DVR |
| Analog Video Input | 4 BNC |
| IP Camera Input | Up to 6 Channels |
| IP Camera Resolution | Up to 6MP |
| Analog Resolution | Up to 5MP / 3K Lite |
| AI Detection | Human & Vehicle |
| Perimeter Protection | Supported |
| Facial Detection | Supported |
| Video Compression | H.265 Pro+, H.265 Pro, H.265, H.264+, H.264 |
| Max Recording | 3K/5MP Lite @ 12fps |
| Audio | Coaxial Audio + Two-Way Audio |
| HDMI Output | 1920 × 1080 |
| VGA Output | 1920 × 1080 |
| HDD Support | 1 SATA, up to 10TB |
| Network | 10/100 Mbps RJ45 |
| Remote Access | Hik-Connect |
| Wi-Fi | USB Wi-Fi Dongle Supported |
| USB | 2 × USB 2.0 |
| Power Supply | 12V DC, 1.5A |
| Power Consumption | ≤8W without HDD |
| Operating Temperature | –10°C to +55°C |
| Dimensions | 200 × 200 × 48 mm |
| Weight | ≤1 kg without HDD |
Product Description
The HIKVISION iDS-7104HQHI-M1/T is a 4-channel AcuSense DVR designed for AI-based CCTV surveillance. It supports HDTVI, AHD, HDCVI, CVBS and IP cameras, with human/vehicle classification, facial detection and deep-learning perimeter protection. With support for up to 6MP IP cameras, 5MP Lite recording, H.265 Pro+ compression and Hik-Connect remote monitoring, it is suitable for homes, shops, offices and small commercial security systems.
Ideal For
- Homes & Villas
- Shops & Retail Stores
- Offices
- Small Commercial Premises
- CCTV Upgrade Projects
