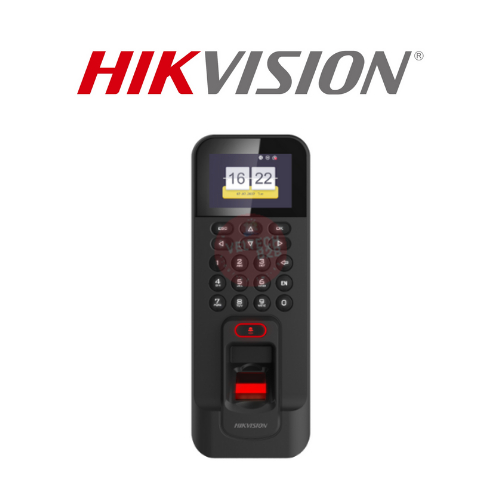

HIKVISION DS-K1T804AEF Fingerprint Access Control & Attendance Terminal | 3,000 Fingerprints + Cards
Key Features
- Combines access control and employee time attendance in one terminal
- Optical fingerprint authentication with 1:1 and 1:N matching
- Built-in EM card reader with up to 5 cm reading distance
- Supports lock control, door contact and exit button
- Alarm input/output and tamper detection
- USB interface for local data management
- Surface-mount installation for indoor access points
Technical Specifications
| Specification | Details |
|---|
| Brand | HIKVISION |
| Model | DS-K1T804AEF |
| Product Type | Fingerprint Access Control & Attendance Terminal |
| Display | 2.4" LCD-TFT |
| Resolution | 320 × 240 |
| Fingerprint Capacity | 3,000 |
| Card Capacity | 3,000 |
| Event Capacity | 100,000 |
| Card Type | EM Card |
| Card Reading Distance | 0–5 cm |
| Fingerprint Module | Optical |
| Fingerprint Matching | 1:1 / 1:N |
| Recognition Time | <1 sec |
| Network | TCP/IP, 10/100 Mbps |
| Wi-Fi | Supported |
| RS-485 | 1 |
| Wiegand | 1 |
| Lock Control | 1 |
| Exit Button | 1 |
| Door Contact | 1 |
| Alarm Input/Output | 1 / 1 |
| USB | 1 |
| Protocols | ISUP 5.0, ISAPI |
| Power Supply | 12V DC / 1A |
| Installation | Surface Mount |
| Operating Temperature | –10°C to +55°C |
| Dimensions | 205 × 76.5 × 37 mm |
| Colour | Black |
Product Description
The HIKVISION DS-K1T804AEF is an integrated fingerprint access control and employee attendance terminal with optical fingerprint recognition and EM card authentication. With 3,000 fingerprint and card capacity, 100,000 event storage, Wi-Fi, TCP/IP, RS-485 and Wiegand, it is suitable for secure employee access and time attendance management.
Ideal For
- Offices & Corporate Buildings
- Factories & Warehouses
- Retail Stores
- Schools & Institutions
- Employee Access & Attendance
- Commercial Access Control
