CP PLUS : UNC-TA21L6C-Q
Available Offer
Share :

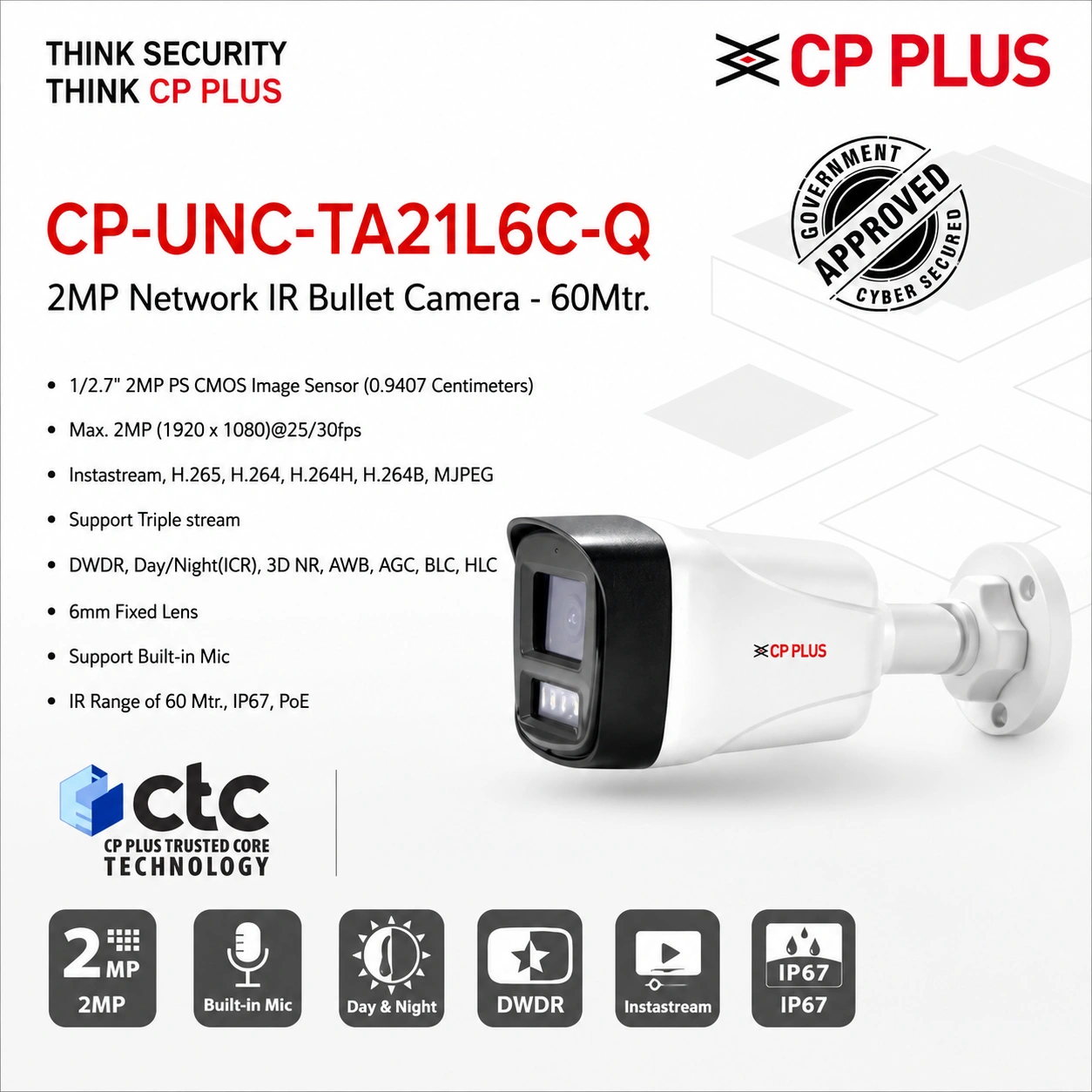

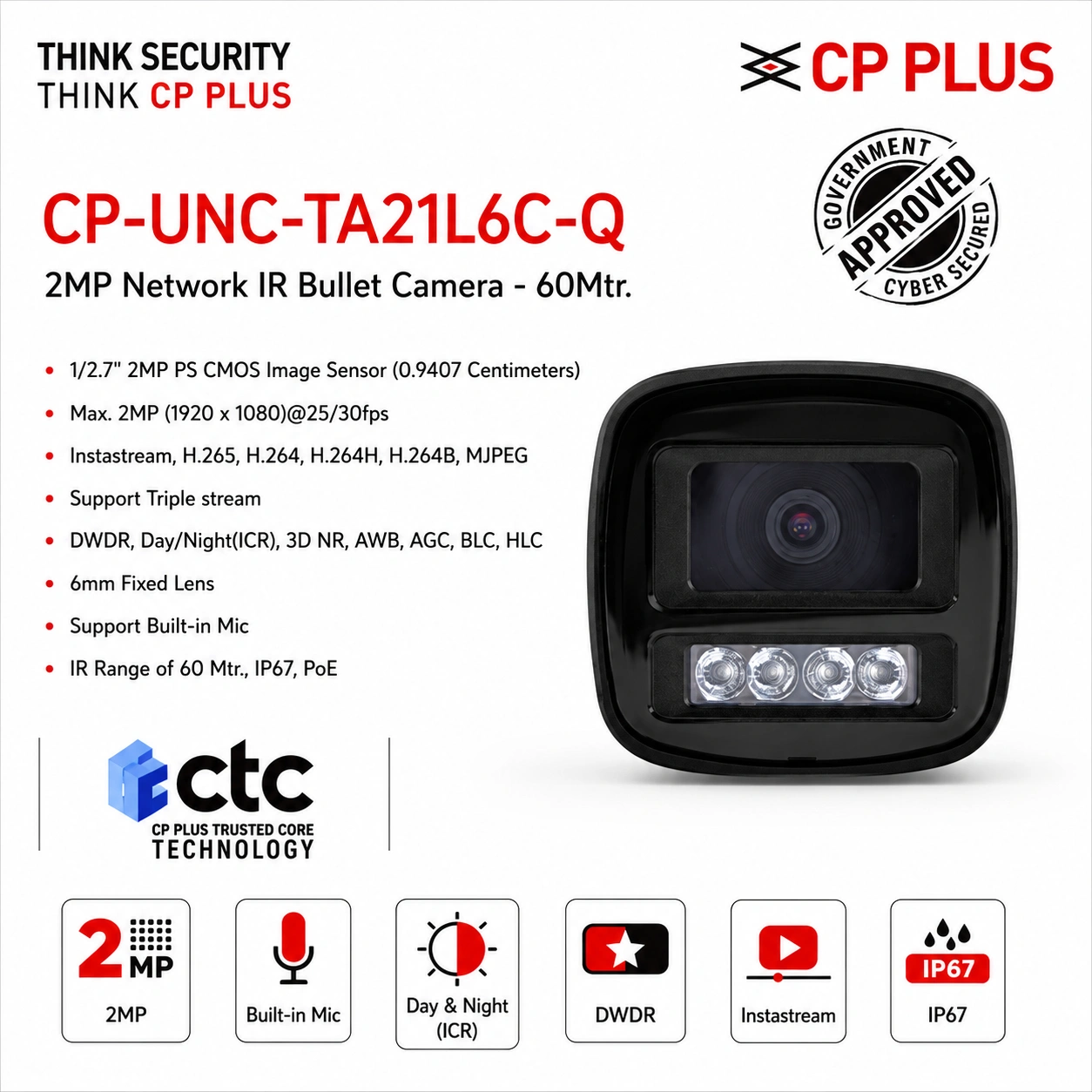

CP PLUS CP-UNC-TA21L6C-Q 2MP Network IR Bullet Camera | 60M IR | PoE | Built-in Mic | IP67
Short Description
- 2MP Full HD Network IR Bullet Camera
- 60M Smart IR Night Vision
- Built-in Microphone
- H.265 Video Compression with Instastream
- Triple Stream Support
- AI Human Detection
- PoE (802.3af) Powered
- IP67 Weatherproof Design
Key Features
- 2MP Full HD (1920 × 1080) Resolution
- 1/2.7" Progressive Scan CMOS Image Sensor
- Instastream, H.265 & H.264 Video Compression
- 60 Meter Smart IR Night Vision
- 6mm Fixed Lens for Long-Range Monitoring
- Built-in Microphone for Audio Recording
- AI Human Detection
- Triple Stream Video Support
- DWDR, 3D Noise Reduction, AWB, AGC, BLC & HLC
- Smart Search with Compatible CP PLUS NVRs
- Smart IR Technology
- PoE (IEEE 802.3af) Support
- ONVIF Profile S, G & T Compatible
- IP67 Weatherproof Metal Housing
Technical Specifications
| Specification | Details |
|---|---|
| Brand | CP PLUS |
| Model | CP-UNC-TA21L6C-Q |
| Camera Type | Network IR Bullet Camera |
| Image Sensor | 1/2.7" 2MP PS CMOS |
| Maximum Resolution | 1920 × 1080 (Full HD) |
| Lens | 6mm Fixed Lens |
| Lens Mount | M12 |
| Aperture | F1.4 |
| Viewing Angle | H: 54°, V: 29°, D: 63° |
| Video Compression | Instastream, H.265, H.264, H.264H, H.264B, MJPEG |
| Stream Capability | Triple Stream |
| Frame Rate | Up to 30fps @ 2MP |
| Night Vision | Smart IR |
| IR Distance | Up to 60 Meters |
| Audio | Built-in Microphone |
| AI Features | Human Detection, Motion Detection, Smart Search, ROI |
| Image Enhancement | DWDR, 3D NR, AWB, AGC, BLC, HLC |
| Network | RJ-45 (10/100 Mbps Ethernet) |
| Network Protocols | IPv4, IPv6, HTTP, HTTPS, RTSP, RTP, ONVIF, DHCP, SMTP, TLS 1.2, SSL and more |
| Browser Support | Chrome, Firefox, Internet Explorer |
| Memory | 128MB RAM, 128MB ROM |
| Power Supply | 12V DC / PoE (IEEE 802.3af) |
| Power Consumption | Max. 6.2W (PoE), Max. 5W (12V DC) |
| Weatherproof Rating | IP67 |
| Operating Temperature | -40°C to +60°C |
| Housing | Metal + Plastic |
| Dimensions | 197.9 × 80.2 × 76.2 mm |
| Weight | 310 g |
Product Description
The CP PLUS CP-UNC-TA21L6C-Q is a 2MP Full HD Network IR Bullet Camera designed for long-range surveillance in commercial, industrial, and outdoor environments. Equipped with a 1/2.7" Progressive Scan CMOS image sensor, Instastream technology, and H.265 video compression, it delivers sharp Full HD video while optimizing bandwidth and storage requirements.
Its 6mm fixed lens provides a narrower field of view, making it ideal for monitoring gates, boundary walls, parking areas, warehouses, and long corridors. The powerful 60-meter Smart IR night vision ensures excellent image quality even in complete darkness. With AI Human Detection, a built-in microphone, Triple Stream support, PoE connectivity, and an IP67-rated weatherproof housing, this camera offers reliable performance for demanding indoor and outdoor security installations.
Applications
- Building Perimeter Security
- Factory & Warehouse Monitoring
- Parking Lots
- Gated Communities
- Schools & Colleges
- Hospitals
- Banks & ATMs
- Industrial Facilities
- Long Corridors
- Entry & Exit Gate Surveillance
Package Contents
- 1 × CP PLUS CP-UNC-TA21L6C-Q 2MP Network IR Bullet Camera
- Mounting Kit
- Quick Installation Guide
