CP PLUS : DPS-PD16V2-12D
Available Offer
Share :

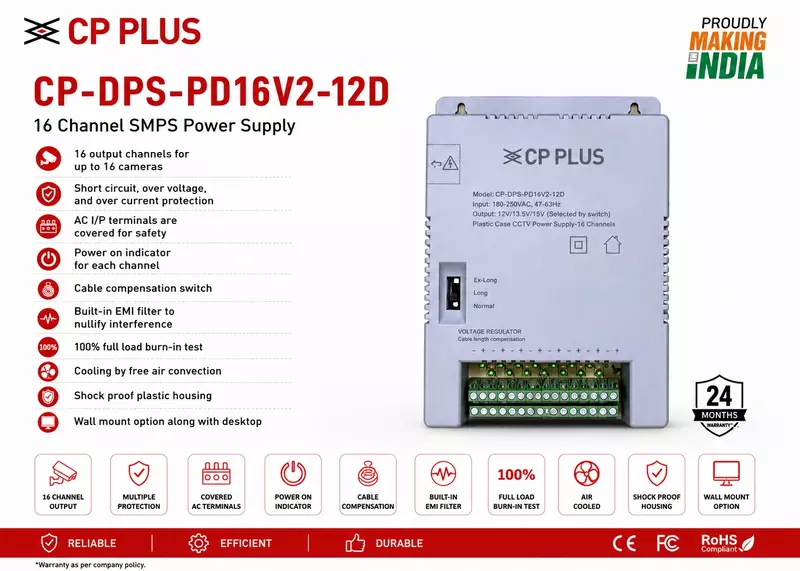

CP PLUS 16 Channel 12V DC Power Supply | 96W with Cable Compensation | CP-DPS-PD16V2-12D
Key Features
- 16 Independent Output Channels
- Stable 12V DC Output
- Individual LED Status Indicator for Each Channel
- Cable Compensation Switch for Voltage Adjustment
- Built-in EMI Filter to Reduce Electrical Interference
- Constant Current Limiting Circuit
- Automatic Overload Protection with Auto Recovery
- 100% Full Load Burn-in Tested
- Free Air Convection Cooling
- Durable Plastic Housing
- Easy Installation and Maintenance
Technical Specifications
Specification Details Brand CP PLUS Model CP-DPS-PD16V2-12D Product Type 16 Channel Power Supply Input Voltage 200–240V AC Input Frequency 47–63Hz Output Voltage 12V DC Output Channels 16 Output Current Up to 8A Rated Power 96W Voltage Adjustment 11.4V–12.6V Efficiency 86% Ripple & Noise ≤120mVp-p Protection Overload Protection with Automatic Recovery EMI Filter Built-in Cooling Free Air Convection Housing Plastic Operating Temperature -20°C to +45°C Storage Temperature -20°C to +85°C Operating Humidity 20%–90% RH (Non-condensing) Dimensions 186 × 130.5 × 39 mm
| Specification | Details |
|---|---|
| Brand | CP PLUS |
| Model | CP-DPS-PD16V2-12D |
| Product Type | 16 Channel Power Supply |
| Input Voltage | 200–240V AC |
| Input Frequency | 47–63Hz |
| Output Voltage | 12V DC |
| Output Channels | 16 |
| Output Current | Up to 8A |
| Rated Power | 96W |
| Voltage Adjustment | 11.4V–12.6V |
| Efficiency | 86% |
| Ripple & Noise | ≤120mVp-p |
| Protection | Overload Protection with Automatic Recovery |
| EMI Filter | Built-in |
| Cooling | Free Air Convection |
| Housing | Plastic |
| Operating Temperature | -20°C to +45°C |
| Storage Temperature | -20°C to +85°C |
| Operating Humidity | 20%–90% RH (Non-condensing) |
| Dimensions | 186 × 130.5 × 39 mm |
Product Description
The CP PLUS CP-DPS-PD16V2-12D is a 16-channel 12V DC power supply engineered for professional CCTV surveillance systems requiring reliable power distribution. With a 96W total power output, 16 independent output channels, and individual LED status indicators, it simplifies powering multiple security cameras from a single unit. The cable compensation switch maintains stable voltage over longer cable runs, while the built-in EMI filter, constant current limiting circuit, and automatic overload protection ensure safe, efficient, and uninterrupted operation. Its compact plastic enclosure and free-air cooling design make it suitable for residential, commercial, and industrial security installations.
