CP PLUS : URC-TC51PL3C-L-V2
Available Offer
Share :

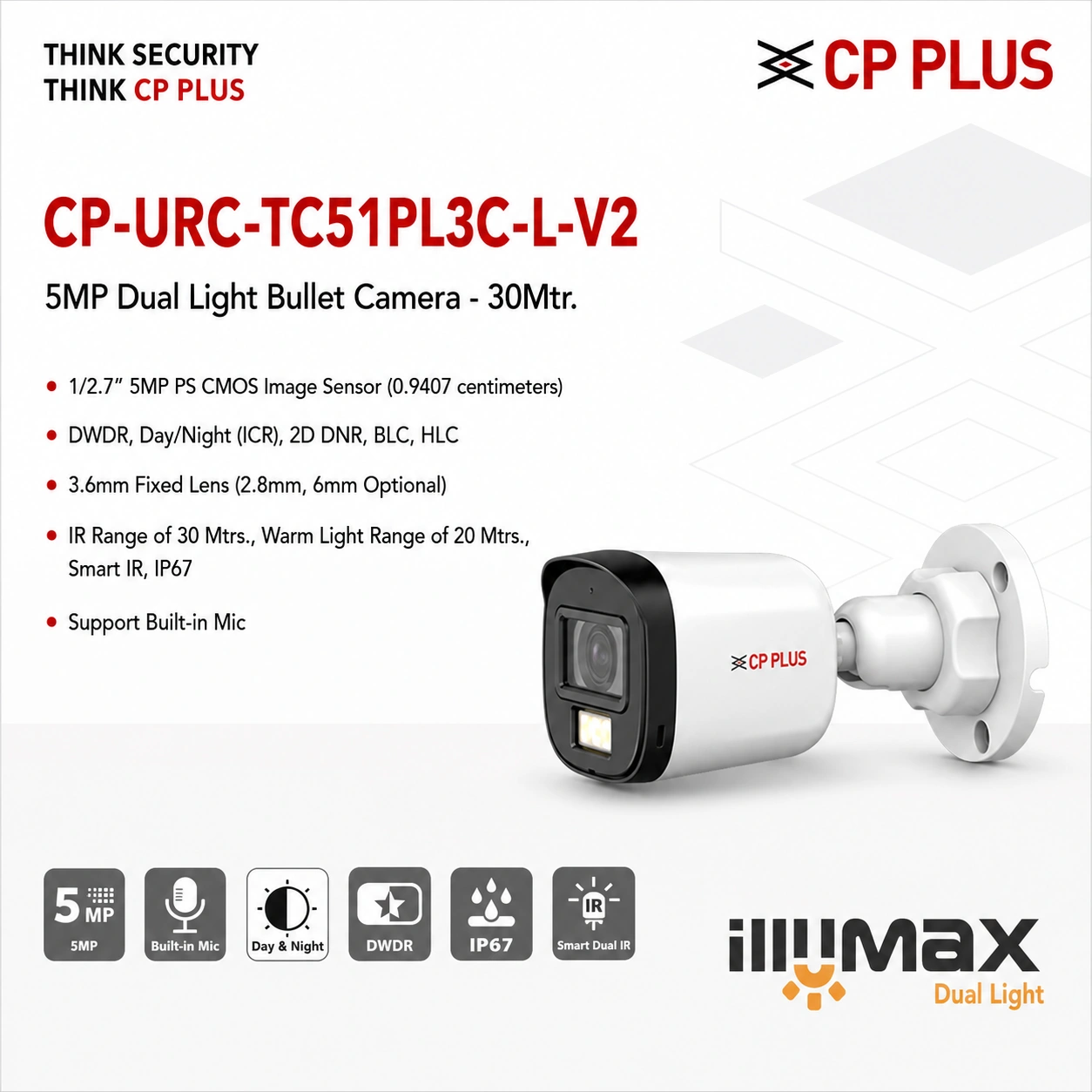

CP PLUS CP-URC-TC51PL3C-L-V2 5MP Dual Light Bullet Camera | 30M Smart IR | 20M Warm Light | Built-in Mic | IP66 | 4-in-1 HD Analog Camera
Key Features
- 5MP Progressive Scan CMOS Image Sensor
- Ultra HD Resolution up to 2880 × 1620
- Up to 5MP Recording at 25fps
- Dual Light Technology (IR + Warm Light)
- 30 Meter Smart IR Night Vision
- 20 Meter Warm Light Full-Color Night Vision
- Built-in Microphone for Audio Surveillance
- DWDR (Digital Wide Dynamic Range)
- 2D Digital Noise Reduction (2D DNR)
- Smart IR & Warm Light Operating Modes
- 3.6mm Fixed Lens (2.8mm & 6mm Optional)
- CVI / TVI / AHD / CVBS Switchable Output
- Privacy Mask Support
- IP66 Weatherproof Protection
Technical Specifications
| Specification | Details |
|---|---|
| Brand | CP PLUS |
| Model | CP-URC-TC51PL3C-L-V2 |
| Camera Type | HD Analog Dual Light Bullet Camera |
| Image Sensor | 1/2.7" 5MP Progressive Scan CMOS |
| Maximum Resolution | 2880 × 1620 |
| Effective Pixels | 2880 × 1620 |
| Frame Rate | Up to 5MP @ 25fps |
| Lens | 3.6mm Fixed Lens (2.8mm & 6mm Optional) |
| Lens Type | Fixed Focal |
| Lens Mount | M12 |
| Maximum Aperture | F2.0 |
| Viewing Angle | 3.6mm: H 92°, V 48°, D 109° • 2.8mm: H 106°, V 56°, D 125° • 6mm: H 54°, V 29°, D 62° |
| Minimum Illumination | 0.02 Lux (Color), 0.002 Lux (B/W), 0 Lux with IR |
| IR Distance | Up to 30 Meters |
| Warm Light Distance | Up to 20 Meters |
| IR Modes | Smart IR & Warm Light, IR Only, Warm Light Only |
| Day/Night | Auto (ICR) / Color / B&W |
| Image Enhancement | DWDR, BLC, HLC, 2D DNR |
| White Balance | Auto, Area White Balance |
| Gain Control | Auto (AGC) |
| Video Output | CVI / TVI / AHD / CVBS (Switchable) |
| Supported Resolution | 5MP, 4MP, 2MP, 960H |
| Built-in Audio | Yes (Built-in Microphone) |
| Privacy Mask | Up to 8 Configurable Areas |
| Mirror Function | Supported |
| DORI Distance (3.6mm) | Detect: 76m • Observe: 30.4m • Recognize: 15.2m • Identify: 7.6m |
| Weatherproof Rating | IP66 |
| Anti-Corrosion | Basic Protection |
| Power Supply | 12V DC ±30% |
| Power Consumption | Maximum 4.0W |
| Operating Temperature | -40°C to +60°C |
| Operating Humidity | Less than 95% RH |
| Dimensions | 146.1 × 70 × 69.8 mm |
| Weight | 170 g |
Product Description
The CP PLUS CP-URC-TC51PL3C-L-V2 is a 5MP Ultra HD Dual Light Bullet Camera built for high-performance outdoor surveillance. Featuring a 1/2.7-inch 5MP Progressive Scan CMOS sensor, it delivers crystal-clear 2880 × 1620 Ultra HD resolution, ensuring excellent detail for monitoring residential, commercial, and industrial environments.
Its advanced Dual Light Technology intelligently combines 30-meter Smart IR with 20-meter Warm Light to provide clear monochrome or full-color images during nighttime. The built-in microphone enables synchronized audio recording for enhanced evidence collection. Equipped with DWDR, 2D Digital Noise Reduction, and Day/Night ICR, the camera maintains excellent image quality in challenging lighting conditions. Supporting CVI, TVI, AHD, and CVBS video formats over a single coaxial cable and protected by an IP66 weatherproof metal housing, it is an ideal solution for professional outdoor CCTV installations.
Applications
- Residential Security
- Villas & Apartments
- Office Buildings
- Retail Shops & Showrooms
- Warehouses & Industrial Facilities
- Schools & Colleges
- Hospitals & Healthcare Centers
- Parking Areas
- Building Perimeter Monitoring
- Commercial Outdoor Surveillance
Package Contents
- 1 × CP PLUS CP-URC-TC51PL3C-L-V2 5MP Dual Light Bullet Camera
- Mounting Kit
- Installation Guide
