CP PLUS : DPS-MD50P-12D
*Specifications as per manufacturer, subject to change without notice.
Non-returnable
₹387.00 ₹402.50
Available Offer
Share :
Product Details

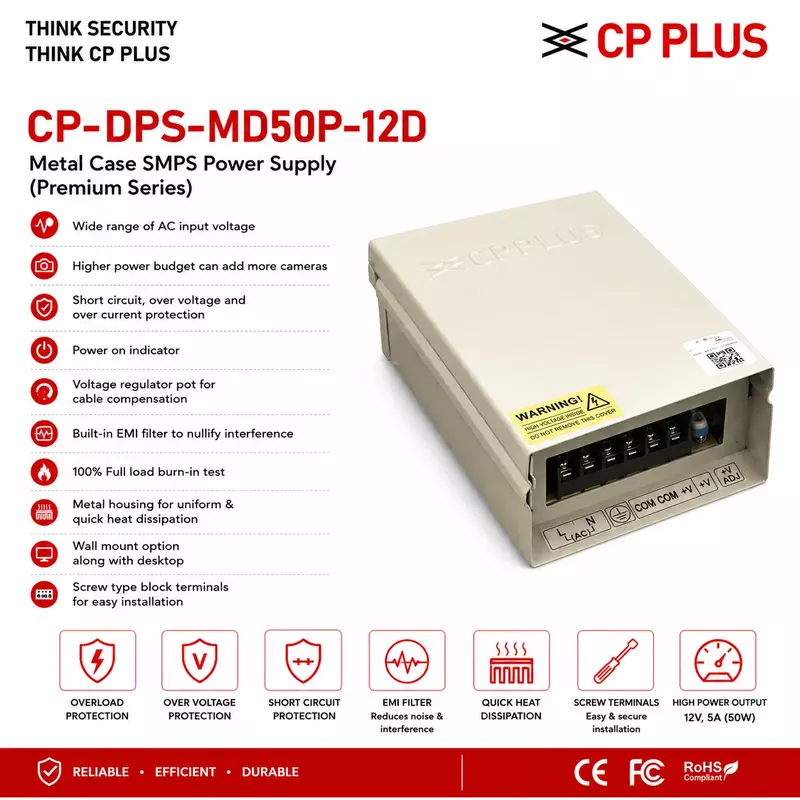

CP PLUS 12V 5A Metal SMPS Power Supply | 60W Premium Series | CP-DPS-MD50P-12D
Key Features
- Stable 12V DC Output
- 5A High Current Capacity
- 60W Rated Power
- Wide AC Input Voltage Range (190–250V)
- Built-in EMI Filter for Noise Reduction
- Adjustable Output Voltage via Trimmer Pot
- Durable Metal Housing for Efficient Heat Dissipation
- Power ON LED Indicator
- Short Circuit Protection
- Over Voltage Protection
- Over Current Protection
- Easy Screw Terminal Connections
Technical Specifications
| Specification | Details |
|---|---|
| Brand | CP PLUS |
| Model | CP-DPS-MD50P-12D |
| Product Type | Metal Case SMPS Power Supply |
| Input Voltage | 190–250V AC |
| Input Frequency | 47–63Hz |
| Output Voltage | 12V DC |
| Output Current | 5A |
| Rated Power | 60W |
| Output Ports | Single Port |
| Efficiency | 80% |
| Ripple & Noise | ≤200mV |
| Line Regulation | 2% |
| Load Regulation | 3% |
| Power Indicator | LED |
| Cable Compensation | Supported (Trimmer Pot) |
| Protection | Short Circuit, Over Voltage & Over Current |
| EMI Filter | Built-in |
| Mounting | Wall Mount / Desktop |
| Operating Temperature | -10°C to +40°C |
| Dimensions | 156 × 103 × 47 mm |
Product Description
The CP PLUS CP-DPS-MD50P-12D is a 12V 5A (60W) premium metal SMPS power supply designed for CCTV cameras, DVRs, access control systems, LED lighting, and other 12V DC devices. It features a wide AC input voltage range, built-in EMI filter, and adjustable cable compensation for stable power delivery. The durable metal enclosure ensures efficient heat dissipation, while integrated short circuit, over voltage, and over current protection provide reliable and safe operation.
Applications
- CCTV Camera Systems
- DVR & NVR Power Supply
- Access Control Systems
- LED Lighting
- Alarm Systems
- Home & Office Security
- Electronic Projects
- 12V DC Devices
Package Contents
- 1 × CP PLUS CP-DPS-MD50P-12D Metal SMPS Power Supply
- User Manual
