CP PLUS : UVR-0401E1V-I
Available Offer
Share :

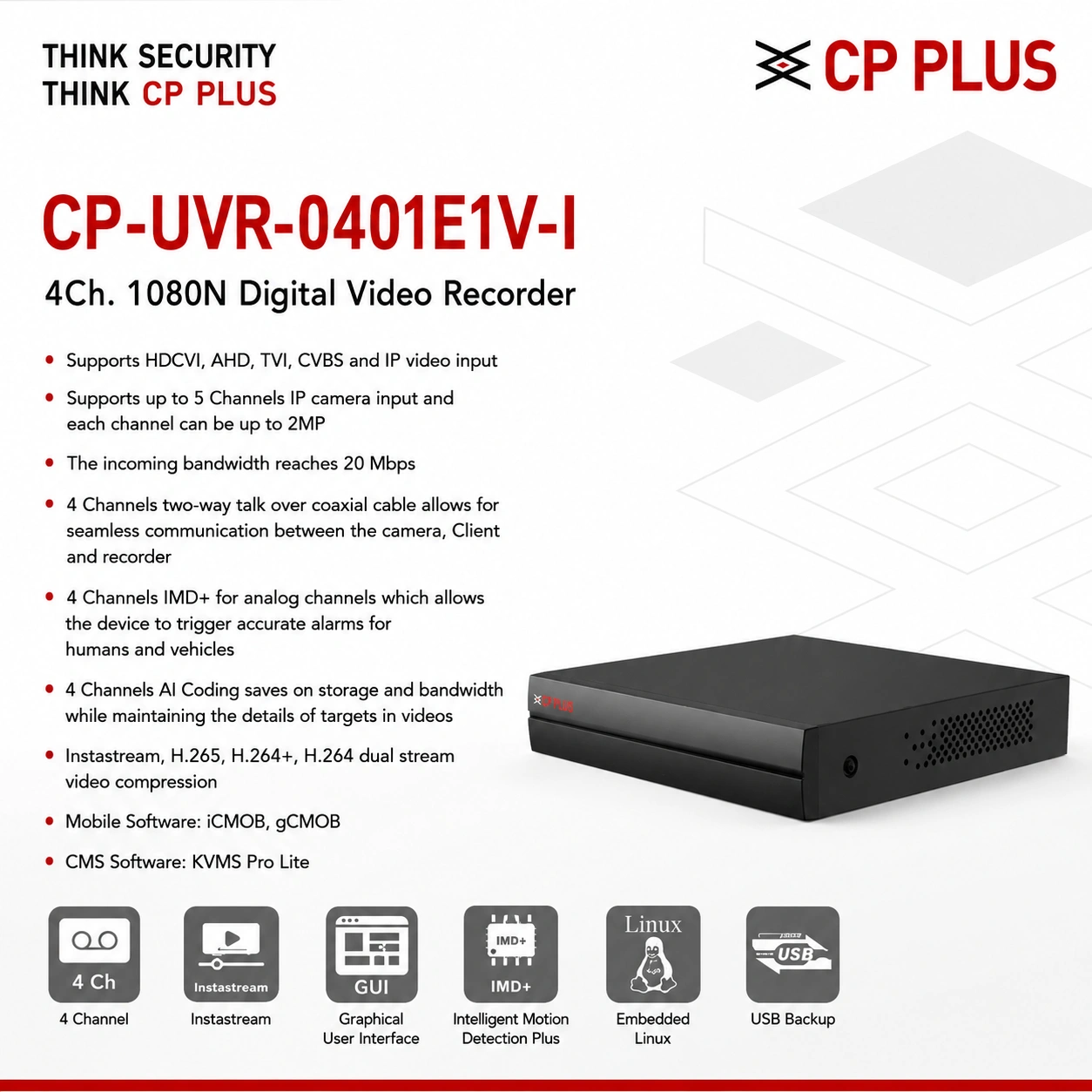

CP PLUS CP-UVR-0401E1V-I 4 Channel 1080N AI Digital Video Recorder | H.265 | 5CH IP Support | AI Coding | IMD+
Key Features
- 4-Channel HD Digital Video Recorder
- Supports HDCVI, AHD, TVI, CVBS & IP Cameras
- Supports Up to 5 IP Cameras (Up to 2MP Each)
- AI IMD+ Human & Vehicle Detection
- AI Coding for Reduced Storage & Bandwidth
- H.265, H.264+, H.264 & Instastream Compression
- Incoming Bandwidth up to 20 Mbps
- 4-Channel Two-Way Audio over Coaxial Cable
- HDMI & VGA Full HD Video Output
- Dual Stream Video Recording
- Smart Playback & Event Playback
- Mobile Viewing via iCMOB & gCMOB
- CMS Support with KVMS Pro Lite
- ONVIF Profile S, G & T Compatible
- Supports 1 SATA HDD up to 6TB
Technical Specifications
| Specification | Details |
|---|---|
| Brand | CP PLUS |
| Model | CP-UVR-0401E1V-I |
| DVR Type | 4 Channel AI Digital Video Recorder |
| Processor | Industrial Grade Processor |
| Operating System | Embedded Linux |
| Analog Camera Input | 4 BNC Ports (HDCVI / AHD / TVI / CVBS Auto Detection) |
| IP Camera Support | Up to 5 Channels (Up to 2MP Each) |
| Incoming Bandwidth | 20 Mbps |
| Recording Compression | AI Coding, Instastream, H.265, H.264+, H.264 |
| AI Features | IMD+ Human & Vehicle Detection |
| AI Camera Support | Up to 5 Channels |
| Video Output | HDMI & VGA (Up to 1920 × 1080) |
| Video Display | 1 / 4 / 6 Split Screen |
| Stream Type | Dual Stream |
| Playback | Instant, General, Event, Smart & Tag Playback |
| Playback Channels | 1 / 4 Channels |
| Audio Input | 1 RCA + 4 BNC Coaxial Audio |
| Two-Way Audio | 4-Channel Coaxial Two-Way Talk |
| Audio Compression | G.711a, G.711u, PCM, AAC |
| HDD Support | 1 SATA HDD up to 6TB |
| USB Ports | 2 × USB 2.0 |
| Network Interface | 1 × RJ45 10/100 Mbps Ethernet |
| Supported Protocols | TCP/IP, IPv4, IPv6, HTTPS, RTSP, DHCP, DNS, FTP, DDNS, SMTP, ONVIF, CGI, SDK |
| Smartphone Support | Android & iOS |
| Web Browser Support | Chrome, Edge, Firefox, Safari, Internet Explorer |
| Backup | USB & Network |
| Power Supply | 12V DC, 1.5A |
| Power Consumption | Less than 7W (Without HDD) |
| Operating Temperature | -10°C to +45°C |
| Dimensions | 197 × 204.3 × 41.5 mm |
| Weight | 540 g |
Product Description
The CP PLUS CP-UVR-0401E1V-I is a 4 Channel AI Digital Video Recorder (DVR) designed to provide intelligent surveillance for homes, offices, retail stores, and commercial premises. It supports HDCVI, AHD, TVI, CVBS, and IP cameras, allowing users to build flexible hybrid CCTV systems with support for up to 5 IP cameras.
Powered by AI IMD+ Human & Vehicle Detection, the DVR minimizes false alarms by accurately distinguishing people and vehicles from environmental movements such as rain, leaves, or changing light conditions. Advanced AI Coding, H.265 compression, and Instastream technology significantly reduce storage requirements and network bandwidth while maintaining excellent video quality.
The recorder also supports 4-channel two-way talk over coaxial cable, HDMI and VGA Full HD video output, remote viewing through iCMOB and gCMOB, and centralized management using KVMS Pro Lite, making it an excellent choice for modern CCTV installations.
Applications
- Residential CCTV Systems
- Offices & Commercial Buildings
- Retail Stores & Showrooms
- Warehouses & Industrial Facilities
- Schools & Colleges
- Hospitals & Clinics
- Hotels & Restaurants
- Banks & Financial Institutions
- Apartment Complexes
- Small & Medium Business Surveillance
Package Contents
- 1 × CP PLUS CP-UVR-0401E1V-I AI Digital Video Recorder
- Power Adapter
- Mouse
- User Manual
