CP PLUS : SL06K SOLAR PANEL WITH BATTERY
- 30W Monocrystalline Solar Panel Kit
- Built-in 76.8Wh Rechargeable Battery
- Up to 12 Hours Battery Backup*
- 12V DC Output for CCTV Cameras
- 1 year brand warranty
- Backup time may vary depending on the connected camera's power consumption.
*Specifications as per manufacturer, subject to change without notice.
Non-returnable
₹4,610.00
Available Offer
Share :
Product Details

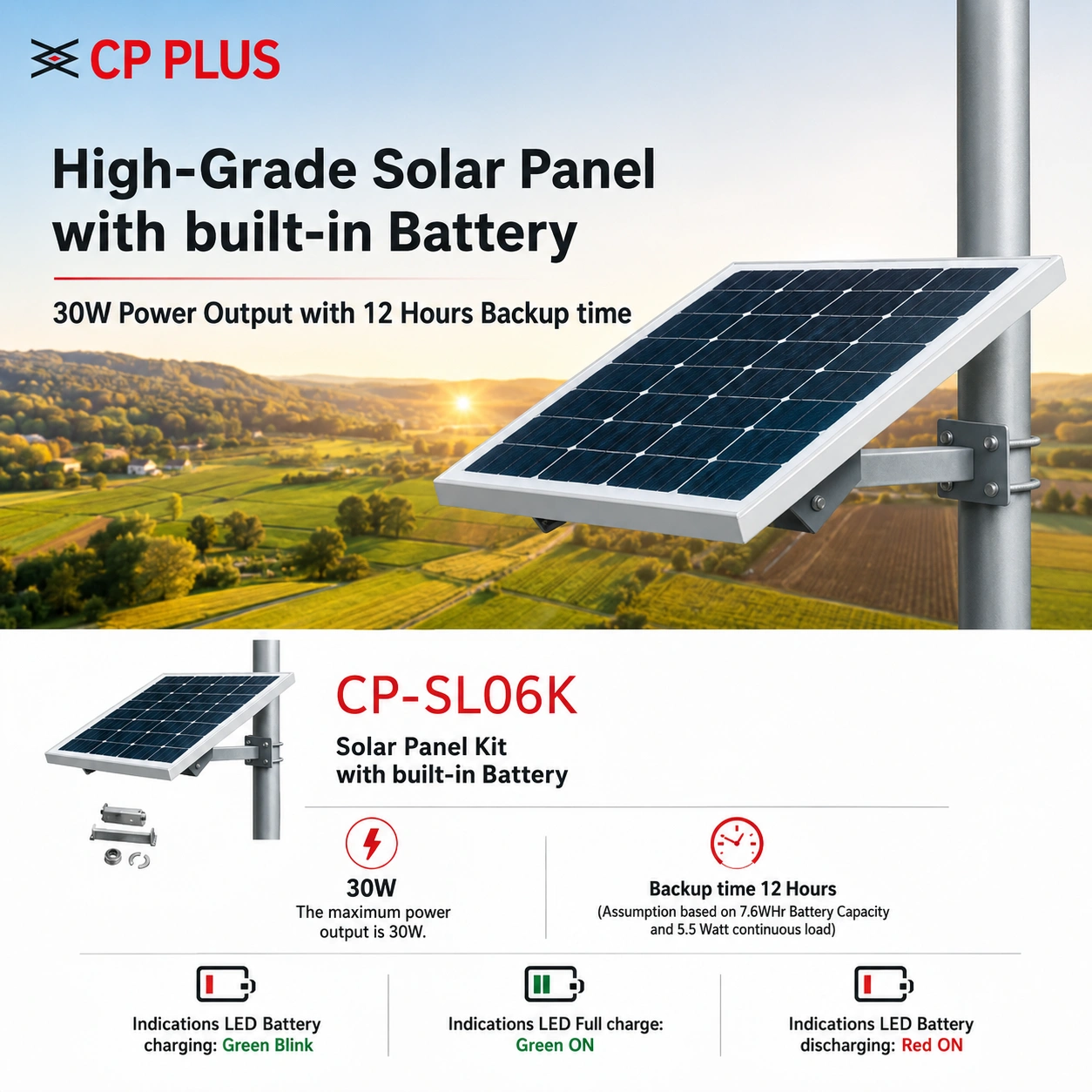

CP PLUS CP-SL06K Solar Panel Kit with Built-in Battery | 30W | 12-Hour Backup
Key Features
- 30W High-Efficiency Monocrystalline Solar Panel
- Built-in 76.8Wh Lithium Battery
- Up to 12 Hours Backup for Compatible CCTV Cameras
- Stable 12V DC Power Output
- Supports Camera Loads up to 12W
- Smart LED Charging & Battery Status Indicators
- Advanced Battery Protection Circuit
- Overcharge, Overcurrent & Short Circuit Protection
- 1000 Charge Cycles @ 90% DOD
- Quick Pole Mount Installation with U-Bolt & Hose Clamp
- Ideal for Remote Surveillance Locations
Technical Specifications
| Specification | Details |
|---|---|
| Brand | CP PLUS |
| Model | CP-SL06K |
| Product Type | Solar Panel Kit with Built-in Battery |
| Solar Cell Type | Monocrystalline |
| Number of Cells | 32 |
| Maximum Power Output | 30W |
| Open Circuit Voltage | 22.9V ±10% |
| Short Circuit Current | 1.59A |
| Voltage at Maximum Power | 19.25V ±10% |
| Current at Maximum Power | 1.56A ±10% |
| Battery Capacity | 76.8Wh |
| Battery Configuration | 4S-1P |
| Charge Current | Up to 1.5A |
| Charge Cut-Off Voltage | 14.6V ±10% |
| Output Voltage | 12V DC ±10% |
| Maximum Load | Up to 12W Camera Load |
| Backup Time | Up to 12 Hours* |
| Battery Cycle Life | 1000 Cycles @ 90% DOD |
| Cable Length | 3 Meters |
| Solar Panel Operating Temperature | -20°C to +65°C |
| Battery Operating Temperature | Discharge: 0°C to 60°C, Charge: 0°C to 45°C |
| Solar Panel Dimensions | 510 × 425 × 17 mm |
| Battery Dimensions | 70 × 130 × 35 mm |
| Overall Kit Dimensions | 550 × 450 × 105 mm |
| Output Port | DC Cable with Compatible Power Jack |
| LED Indicators | Charging (Green Blink), Full Charge (Green ON), Battery Low/Discharge (Red ON) |
| Mounting Accessories | U-Bolt (101.6 mm), Hose Clamp (150 mm) |
Product Description

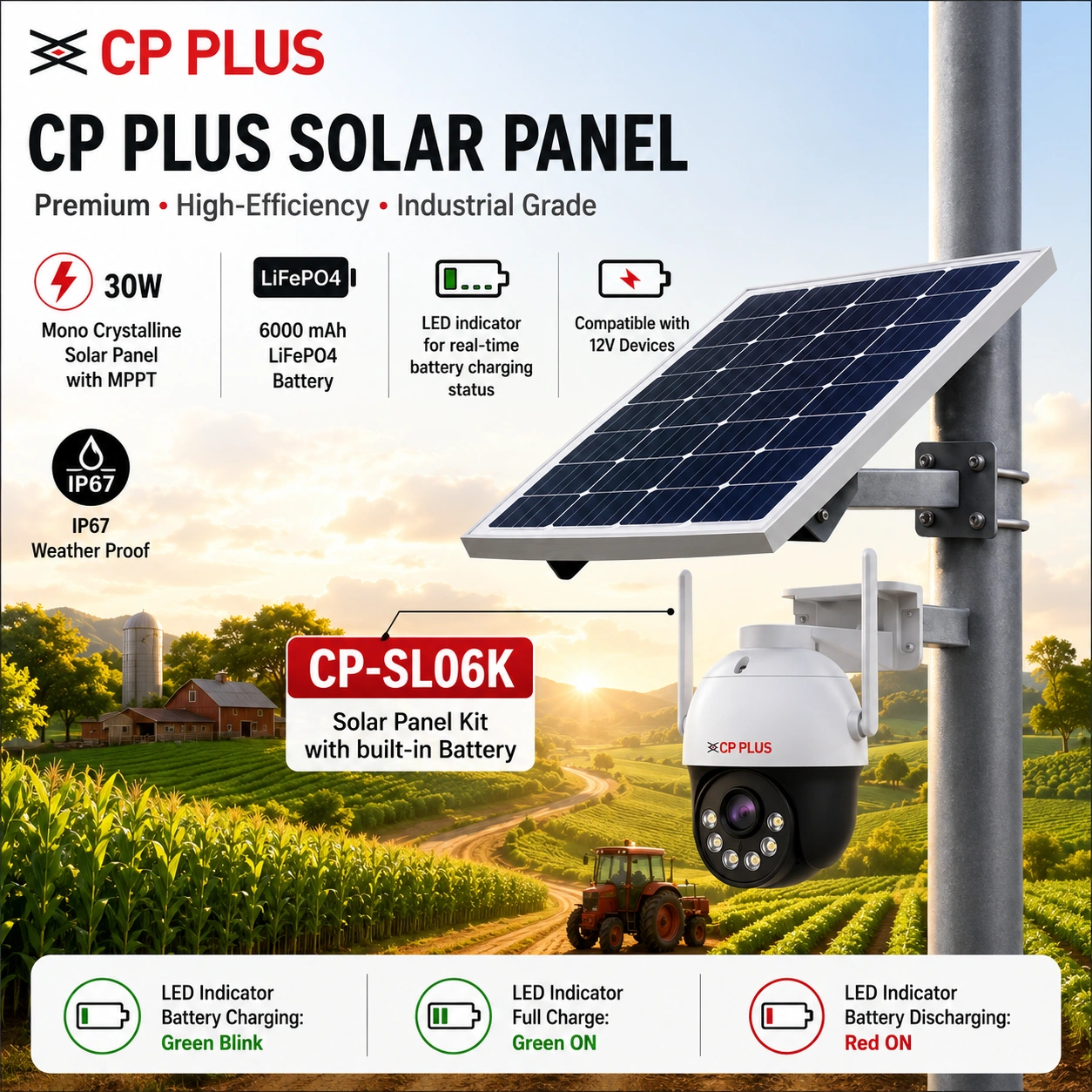

The CP PLUS CP-SL06K Solar Panel Kit is a reliable off-grid power solution designed for CCTV surveillance systems. Equipped with a 30W monocrystalline solar panel and an integrated 76.8Wh rechargeable battery, it delivers continuous 12V DC power for compatible security cameras, even in remote locations without access to mains electricity.
The kit features up to 12 hours of battery backup, intelligent charging indicators, and comprehensive battery protection against overcharging, overcurrent, deep discharge, short circuits, and overheating. With its durable construction and easy pole-mount installation, the CP-SL06K is ideal for outdoor surveillance applications.
Applications
- Solar-Powered CCTV Systems
- Farms & Agricultural Fields
- Construction Sites
- Parking Areas
- Warehouses
- Remote Offices
- Perimeter Security
- Highway & Road Monitoring
- Telecom Sites
- Outdoor Surveillance Installations
Package Contents
- 1 × CP PLUS CP-SL06K 30W Solar Panel
- 1 × Built-in 76.8Wh Battery Pack
- U-Bolt Mounting Kit
- Hose Clamp
- Installation Guide
