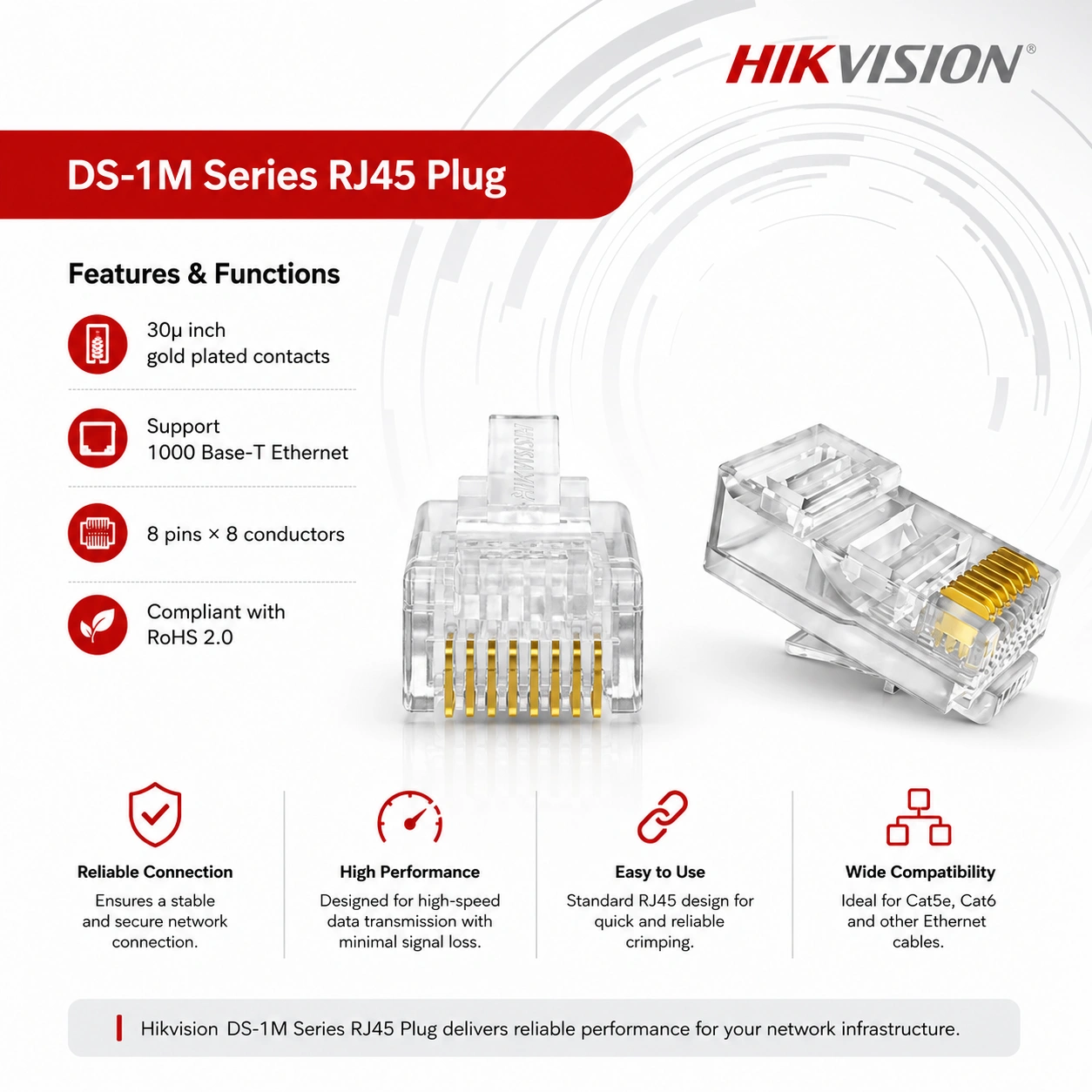

HIKVISION DS-1M02 Cat6 RJ45 Plug | 1000Mbps Ethernet Connector
Key Features
- Reliable RJ45 connector for Cat6 network cables
- Gold-plated contacts help ensure stable connectivity
- Suitable for CCTV, networking, switches, routers and structured cabling
- Supports up to Gigabit Ethernet transmission
Technical Specifications
| Specification | Details |
|---|
| Brand | HIKVISION |
| Model | DS-1M02 |
| Product Type | Cat6 RJ45 Plug |
| Ethernet Standard | 1000BASE-T |
| Contact Plating | 15µ Gold |
| Configuration | 8P8C |
| Contact Material | Copper Alloy |
| Housing | Polycarbonate, UL94V-2 |
| Max. Current | 1.5A @ 25°C |
| Max. Voltage | ≤150VAC |
| Contact Resistance | ≤20mΩ |
| Insulation Resistance | ≥1000MΩ @ 100V DC |
| Withstand Voltage | 1KV AC RMS |
| Insertion/Extraction Life | ≥750 Cycles |
| Tensile Strength | 50N for 60s ±5s |
| Operating Temperature | –25°C to +55°C |
| RoHS | Compliant |
Product Description
The HIKVISION DS-1M02 Cat6 RJ45 Plug is a reliable Gigabit Ethernet connector designed for Cat6 network cable termination. Its gold-plated copper alloy contacts provide stable signal connectivity, making it suitable for CCTV networks, LAN cabling, switches, routers and structured networking installations.
