CP PLUS : FUT-6TSRH-100 ECO
*Specifications as per manufacturer, subject to change without notice.
Non-returnable
₹1,074.00
Available Offer
Share :
Product Details

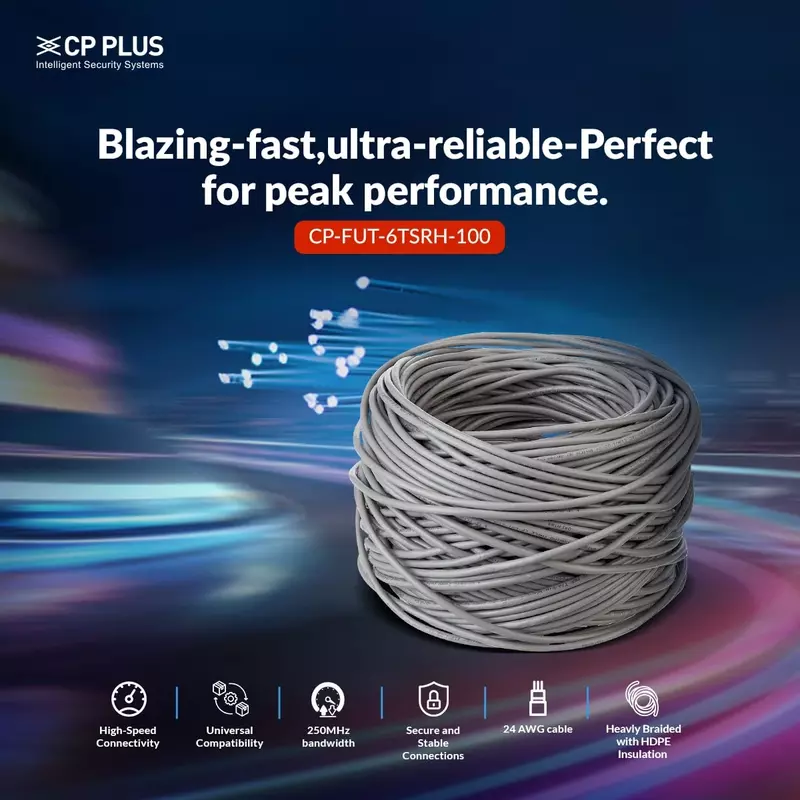

CP PLUS Cat6 Eco UTP LAN Cable | 100 Meter | 24AWG CCA | CP-FUT-6TSRH-100 ECO
Key Features
- Cat6 Eco UTP Network Cable
- 100 Meter Cable Roll
- 24 AWG CCA Conductor
- HDPE Insulated Conductors
- Cross Filler Design to Reduce Crosstalk
- HDPE Outer Jacket for Enhanced Durability
- Reliable Data Transmission
- Easy Cable Pulling and Installation
- Suitable for Ethernet, CCTV, Routers & Switches
- Cost-Effective Networking Solution
Note:CCA cables are suitable for standard networking applications. For high-power PoE, long-distance installations, and enterprise networks, pure copper Cat6 cables are recommended.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | CP PLUS |
| Model | CP-FUT-6TSRH-100 ECO |
| Product Type | Cat6 Eco UTP LAN Cable |
| Cable Category | Cat6 |
| Cable Length | 100 Meters |
| Conductor Material | Copper Clad Aluminium (CCA) |
| Conductor Size | 24 AWG (0.50 ± 0.02 mm) |
| Number of Conductors | 8 Conductors (4 Twisted Pairs) |
| Insulation Material | HDPE |
| Insulation Diameter | 0.92 ± 0.05 mm |
| Insulation Thickness | 0.23 mm |
| Cross Filler | Yes |
| Filler Material | Natural PE |
| Outer Jacket Material | HDPE |
| Outer Diameter | 6.0 ± 0.20 mm |
| Jacket Color | Grey |
| Insulation Resistance | HDPE: 50 MΩ·km (DC 500V), PVC: 5 MΩ·km Min @ 20°C |
| Dielectric Strength | AC 500V / 1 Second |
| Conductor Resistance | ≤250 Ω/km @ 20°C |
Product Description
The CP PLUS CP-FUT-6TSRH-100 ECO is a Cat6 Eco UTP LAN cable designed for reliable and economical networking applications. Featuring 24 AWG Copper Clad Aluminium (CCA) conductors, HDPE insulation, and a cross separator design, it helps minimize signal interference and supports stable data transmission. Its durable HDPE outer jacket enhances cable protection, making it suitable for CCTV systems, home and office networking, routers, switches, and structured cabling projects.
Applications
- IP CCTV Surveillance Systems
- Home & Office Networking
- Broadband Internet Connections
- Routers & Network Switches
- Structured Cabling Projects
- Educational Institutions
- Small Business Networks
- General Ethernet Applications
Package Contents
- 1 × CP PLUS CP-FUT-6TSRH-100 ECO Cat6 UTP LAN Cable (100 Meter Roll)
