CP PLUS : DNW-GPU8G2-96-V4
- 8 × Gigabit PoE Ports + 2 × Gigabit Uplink Ports
- 96W Total PoE Power Budget
- IEEE 802.3af/at PoE Support
- Up to 30W PoE Output Per Port
- 2-Years Brand Warranty
Non-returnable
₹2,846.00
Available Offer
Share :
Product Details

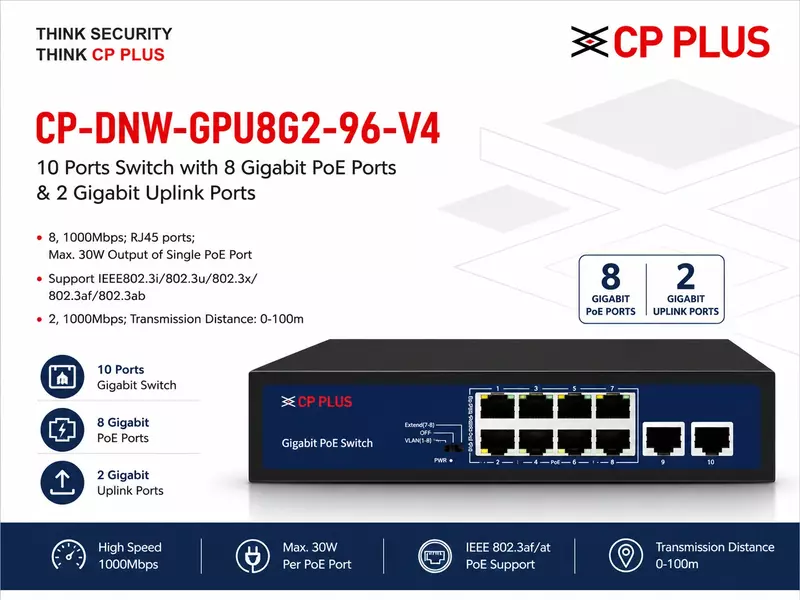

CP PLUS 10 Port Gigabit PoE Switch | 8 Gigabit PoE + 2 Gigabit Uplink | 96W | CP-DNW-GPU8G2-96-V4
Key Features
- 8 × 10/100/1000Mbps Gigabit PoE Ports
- 2 × Gigabit RJ45 Uplink Ports
- 96W Total PoE Power Budget
- Up to 30W Power per PoE Port
- Supports IEEE 802.3af & IEEE 802.3at
- Up to 250m PoE Transmission in Extend Mode
- 20Gbps Switching Capacity
- Store-and-Forward Switching
- VLAN Support
- Built-in Watchdog Function
- 4KV Surge Protection
- Plug & Play Installation
Technical Specifications
| Specification | Details |
|---|---|
| Brand | CP PLUS |
| Model | CP-DNW-GPU8G2-96-V4 |
| Total Ports | 10 Ports |
| PoE Ports | 8 × Gigabit RJ45 |
| Uplink Ports | 2 × Gigabit RJ45 |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| PoE Power Budget | 96W |
| Max. PoE Output | 30W per Port |
| Switching Capacity | 20Gbps |
| Packet Forwarding Rate | 1.488Mpps per Port |
| MAC Address Table | 2K |
| Transmission Distance | 100m (Gigabit), Up to 250m in Extend Mode |
| Network Protocol | IEEE802.3i/u/x/ab/af |
| Protection | 4KV Surge Protection, 8KV Air ESD |
| Power Supply | Built-in AC 100–240V |
| Operating Temperature | -10°C to +50°C |
| Dimensions | 200 × 118 × 44 mm |
| Weight | 0.8 kg |
Product Description
The CP PLUS CP-DNW-GPU8G2-96-V4 is a 10-port Gigabit PoE switch featuring 8 Gigabit PoE ports and 2 Gigabit uplink ports, designed for IP surveillance and networking applications. With a 96W PoE budget and up to 30W output per port, it efficiently powers IP cameras, wireless access points, VoIP phones, and other PoE-enabled devices.
The switch supports IEEE 802.3af/at standards, 20Gbps switching capacity, 250m Extend Mode, VLAN, Watchdog, and surge protection, ensuring stable, reliable, and secure network performance for commercial and enterprise installations.
Applications
- IP CCTV Surveillance Systems
- Office Networks
- Retail Stores
- Warehouses
- Schools & Colleges
- Hotels & Hospitals
- Industrial Networks
- PoE Access Points & VoIP Phones
Package Contents
- 1 × CP PLUS CP-DNW-GPU8G2-96-V4 PoE Switch
- Power Cable
- User Manual
