CP PLUS : UNC-DA41L3C-D-LQ
Available Offer
Share :

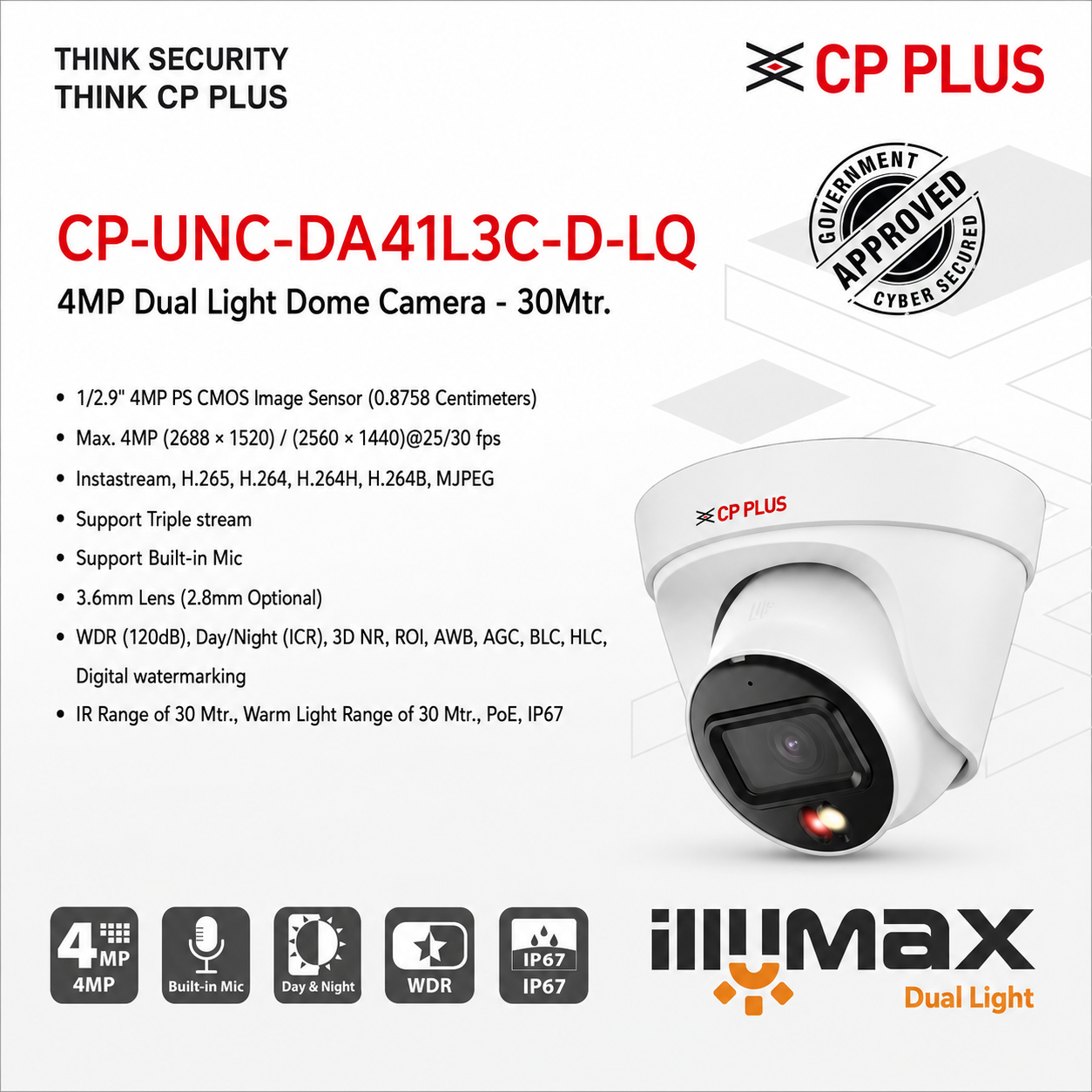

CP PLUS CP-UNC-DA41L3C-D-LQ 4MP Dual Light IP Dome Camera | 30M IR | PoE | Built-in Mic | IP67
Key Features
- 4MP Ultra HD (2688 × 1520) Resolution
- 1/2.9" Progressive Scan CMOS Image Sensor
- Instastream, H.265 & H.264 Video Compression
- Smart Dual Light Technology
- 30 Meter IR Night Vision
- 30 Meter Warm Light Full-Color Illumination
- Built-in Microphone for Audio Recording
- AI Human & Vehicle Detection (IMD)
- 120dB True WDR
- Triple Stream Video Support
- Smart Search with Compatible CP PLUS NVRs
- PoE (IEEE 802.3af) Support
- ONVIF Profile S, G & T Compatible
- IP67 Weatherproof Metal Housing
Technical Specifications
| Specification | Details |
|---|---|
| Brand | CP PLUS |
| Model | CP-UNC-DA41L3C-D-LQ |
| Camera Type | IP Dual Light Dome Camera |
| Image Sensor | 1/2.9" 4MP PS CMOS |
| Maximum Resolution | 2688 × 1520 / 2560 × 1440 |
| Lens | 3.6mm Fixed Lens (2.8mm Optional) |
| Lens Mount | M12 |
| Aperture | F1.6 |
| Viewing Angle | 3.6mm: H 78°, V 40°, D 93° |
| Video Compression | Instastream, H.265, H.264, H.264H, H.264B, MJPEG |
| Stream Capability | Triple Stream |
| Frame Rate | Up to 30fps @ 4MP |
| Night Vision | Smart IR & Warm Light |
| IR Distance | Up to 30 Meters |
| Warm Light Distance | Up to 30 Meters |
| Audio | Built-in Microphone |
| AI Features | Human & Vehicle Detection (IMD), Motion Detection, Smart Search, ROI |
| Image Enhancement | 120dB True WDR, 3D NR, AWB, AGC, BLC, HLC |
| Network | RJ-45 (10/100 Mbps Ethernet) |
| Network Protocols | IPv4, IPv6, HTTP, HTTPS, RTSP, RTMP, RTP, ONVIF, DHCP, SMTP, NTP, SSL, TLS 1.2 and more |
| Browser Support | Chrome, Firefox, Internet Explorer |
| Memory | 128MB RAM, 128MB ROM |
| Power Supply | 12V DC / PoE (IEEE 802.3af) |
| Power Consumption | Max. 4.7W (PoE), Max. 3.7W (12V DC) |
| Weatherproof Rating | IP67 |
| Operating Temperature | -40°C to +60°C |
| Housing | Metal + Plastic |
| Dimensions | 85.5 × 109 mm |
| Weight | 250 g |
Product Description
The CP PLUS CP-UNC-DA41L3C-D-LQ is a 4MP Ultra HD IP Dual Light Dome Camera engineered for high-performance surveillance in residential, commercial, and industrial environments. Featuring a 1/2.9" CMOS image sensor, Instastream technology, and H.265 video compression, it delivers crystal-clear Ultra HD video while reducing bandwidth and storage requirements.
The camera is equipped with 30-meter Smart IR and 30-meter Warm Light illumination for reliable day and night monitoring. With 120dB True WDR, AI-powered Human & Vehicle Detection, built-in microphone, Triple Stream support, and PoE connectivity, it provides intelligent monitoring and simplified installation. Its IP67-rated weatherproof housing ensures dependable operation in demanding indoor and outdoor environments.
Applications
- Homes & Apartments
- Office Buildings
- Retail Stores & Showrooms
- Warehouses
- Banks & ATMs
- Schools & Colleges
- Hospitals
- Hotels
- Parking Areas
- Industrial & Commercial Facilities
Package Contents
- 1 × CP PLUS CP-UNC-DA41L3C-D-LQ 4MP IP Dual Light Dome Camera
- Mounting Kit
- Quick Installation Guide
