CP PLUS : UNC-DA21L3C-LQ
Share :

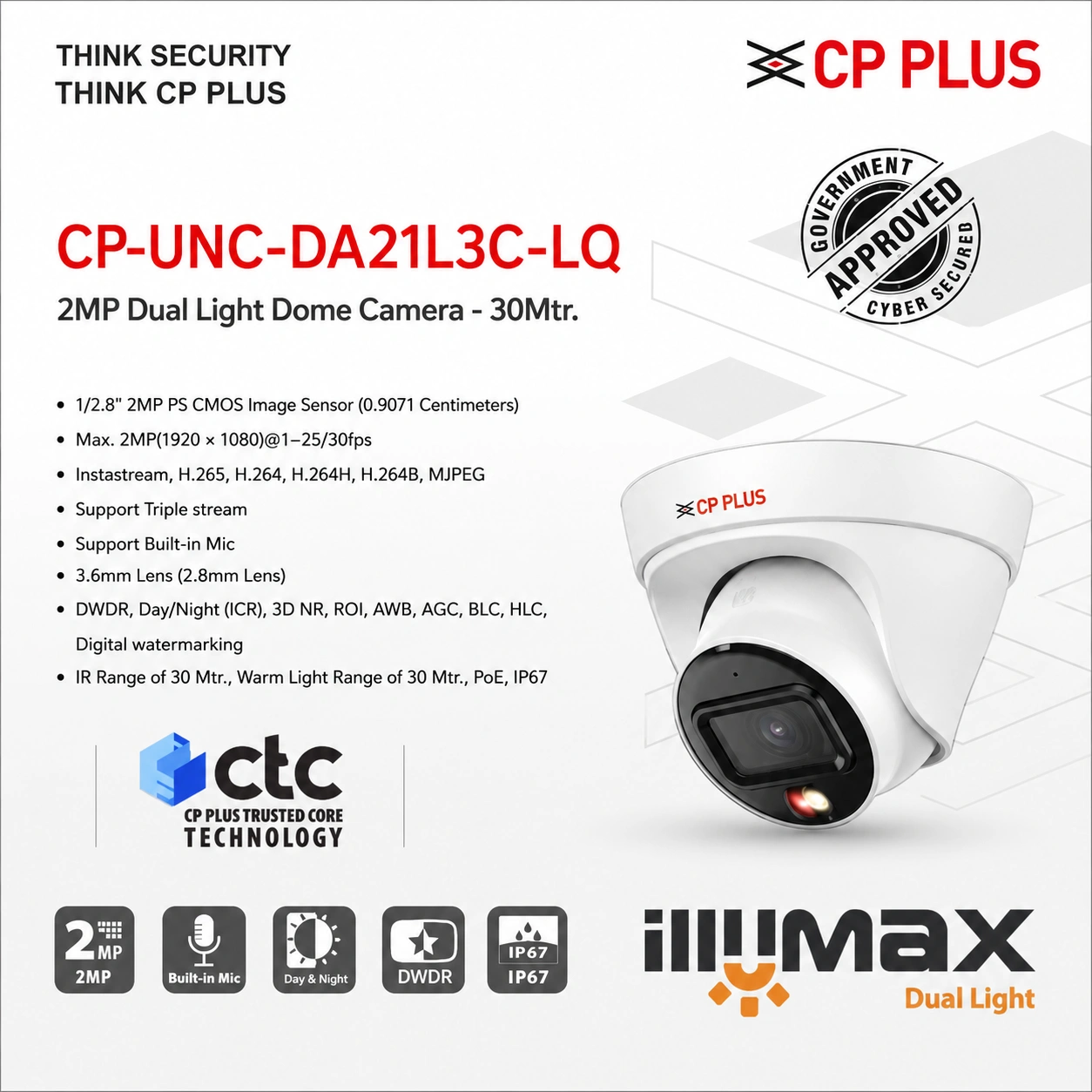

CP PLUS CP-UNC-DA21L3C-LQ 2MP Dual Light IP Dome Camera | 30M IR | PoE | Built-in Mic | IP67
Key Features
- 2MP Full HD (1920 × 1080) Resolution
- 1/2.8" Progressive Scan CMOS Image Sensor
- Instastream, H.265 & H.264 Video Compression
- Smart Dual Light Technology
- 30 Meter IR Night Vision
- 30 Meter Warm Light Full-Color Night Vision
- Built-in Microphone for Audio Recording
- AI Human Detection
- Triple Stream Video Support
- DWDR, 3D Noise Reduction, ROI, AGC, BLC & HLC
- PoE (IEEE 802.3af) & 12V DC Support
- ONVIF Profile S, G & T Compatible
- IP67 Weatherproof Metal Housing
- Smart Search with Compatible CP PLUS NVRs
Technical Specifications
| Specification | Details |
|---|---|
| Brand | CP PLUS |
| Model | CP-UNC-DA21L3C-LQ |
| Camera Type | IP Dual Light Dome Camera |
| Image Sensor | 1/2.8" 2MP PS CMOS |
| Resolution | 2MP (1920 × 1080) |
| Lens | 3.6mm Fixed Lens (2.8mm Optional) |
| Lens Mount | M12 |
| Aperture | F1.6 |
| Viewing Angle | 3.6mm: H 86°, V 47°, D 103° |
| Video Compression | Instastream, H.265, H.264, H.264H, H.264B, MJPEG |
| Stream | Triple Stream |
| Frame Rate | Up to 30fps @ 2MP |
| Night Vision | Smart IR & Warm Light |
| IR Distance | Up to 30 Meters |
| Warm Light Distance | Up to 30 Meters |
| Audio | Built-in Microphone |
| AI Features | Human Detection, Motion Detection, Smart Search, ROI |
| Image Enhancement | DWDR, 3D NR, AWB, AGC, BLC, HLC |
| Network | RJ-45 (10/100 Mbps Ethernet) |
| Network Protocols | IPv4, IPv6, HTTP, HTTPS, RTSP, RTMP, RTP, ONVIF, SMTP, DHCP, NTP, SSL, TLS 1.2 and more |
| Browser Support | Chrome, Firefox, Internet Explorer |
| Memory | 128MB RAM, 128MB ROM |
| Power Supply | 12V DC / PoE (IEEE 802.3af) |
| Power Consumption | Max. 4.4W (PoE), Max. 3.3W (12V DC) |
| Weatherproof Rating | IP67 |
| Operating Temperature | -40°C to +60°C |
| Housing | Metal + Plastic |
| Dimensions | 85.5 × 109 mm |
| Weight | 250 g |
Product Description
The CP PLUS CP-UNC-DA21L3C-LQ is a 2MP Full HD IP Dual Light Dome Camera built for intelligent indoor and outdoor surveillance. Featuring a 1/2.8" CMOS image sensor, Instastream technology, and H.265 video compression, it delivers crystal-clear Full HD video while optimizing bandwidth and storage.
The camera combines 30-meter Smart IR and 30-meter Warm Light illumination for superior night-time performance. AI-powered Human Detection, built-in microphone, Triple Stream support, PoE connectivity, and advanced cybersecurity features make it an excellent choice for modern IP surveillance systems in homes, offices, retail stores, and commercial buildings.
Applications
- Home & Apartment Security
- Office Buildings
- Retail Stores
- Warehouses
- Banks & Financial Institutions
- Schools & Colleges
- Hospitals
- Hotels
- Parking Areas
- Industrial Facilities
Package Contents
- 1 × CP PLUS CP-UNC-DA21L3C-LQ 2MP IP Dual Light Dome Camera
- Mounting Kit
- Quick Installation Guide
