CP PLUS : EUT-6TSRD-100 Outdoor
Available Offer
Share :

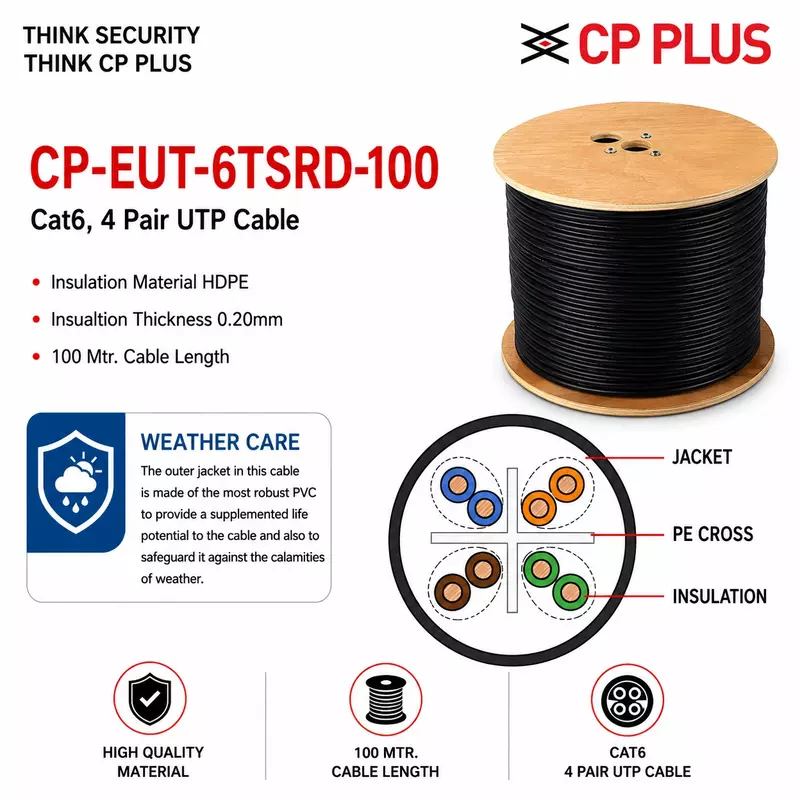

CP PLUS Cat6 4 Pair UTP LAN Cable | 100 Meter | CCA Conductor | Weather-Resistant | CP-EUT-6TSRD-100
Key Features
- Cat6 UTP Oudoor Network Cable
- Copper Clad Aluminium (CCA) Conductor
- 0.50 mm Solid Conductor
- HDPE Insulation for Reliable Performance
- 4 Twisted Pair Construction
- Durable PVC Outer Jacket
- Rip Cord for Easy Cable Stripping
- Supports Ethernet, CCTV & PoE Applications*
- Flexible and Easy to Install
Note:CCA cables are recommended for standard networking applications. For long-distance PoE, Gigabit networking, and professional surveillance installations, pure copper Cat6 cables are recommended.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | CP PLUS |
| Model | CP-EUT-6TSRD-100 |
| Product Type | Cat6 UTP LAN Cable |
| Cable Category | Cat6 |
| Cable Length | 100 Meters |
| Conductor Material | Copper Clad Aluminium (CCA) |
| Conductor Diameter | 0.50 mm |
| Number of Pairs | 4 Twisted Pairs |
| Insulation Material | HDPE |
| Insulation Thickness | 0.20 mm |
| Insulation Diameter | 0.90 ± 0.03 mm |
| Jacket Material | PVC |
| Jacket Color | Black |
| Outer Diameter | 6.60 ± 0.03 mm |
| Outer Jacket Thickness | 0.60 ± 0.05 mm |
| Rip Cord | Nylon |
| Cable Weight | 11.2 ± 0.2 kg |
| Dielectric Strength | 12.5 N/mm² (Min.) |
| Tensile Strength | 17.5 N/mm² (Min.) |
Product Description
The CP PLUS CP-EUT-6TSRD-100 is a 100-meter Cat6 4 Pair UTP LAN cable designed for cost-effective networking and CCTV installations. Constructed with Copper Clad Aluminium (CCA) conductors, HDPE insulation, and a durable PVC outer jacket, it provides dependable performance for Ethernet connectivity, IP cameras, routers, switches, and structured cabling. The integrated nylon rip cord allows faster and easier cable preparation during installation, making it suitable for residential and light commercial networking projects.
Applications
- Home & Office LAN Networks
- IP CCTV Camera Installations
- Broadband Internet Connections
- Routers & Network Switches
- Structured Cabling Projects
- Small Business Networks
- Educational Institutions
- General Ethernet Applications
Package Contents
- 1 × CP PLUS CP-EUT-6TSRD-100 Cat6 UTP LAN Cable (100 Meter Roll)
