CP PLUS : UMC-DA24L4-L
- 2.4MP Full HD Dome Security Camera
- Smart Dual Light Technology
- Up to 40 Meter IR Night Vision
- Supports Two-Way Audio*
- DWDR, 3D Noise Reduction & BLC
- 2 years brand warranty
*Two-way audio requires a compatible DVR.
Available Offer
Share :

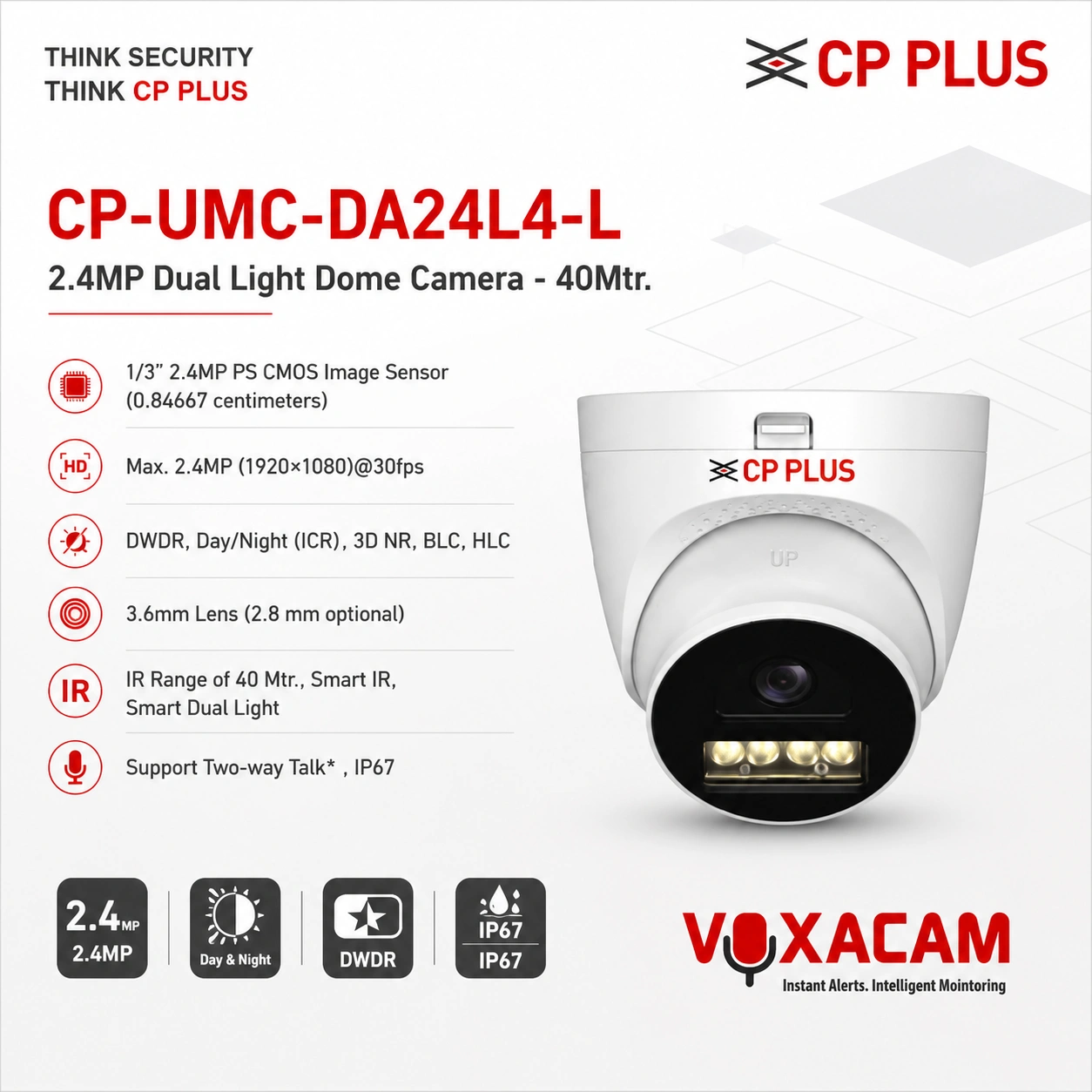

CP PLUS CP-UMC-DA24L4-L 2.4MP Dual Light Dome Camera | 40M IR | Built-in Mic | IP67

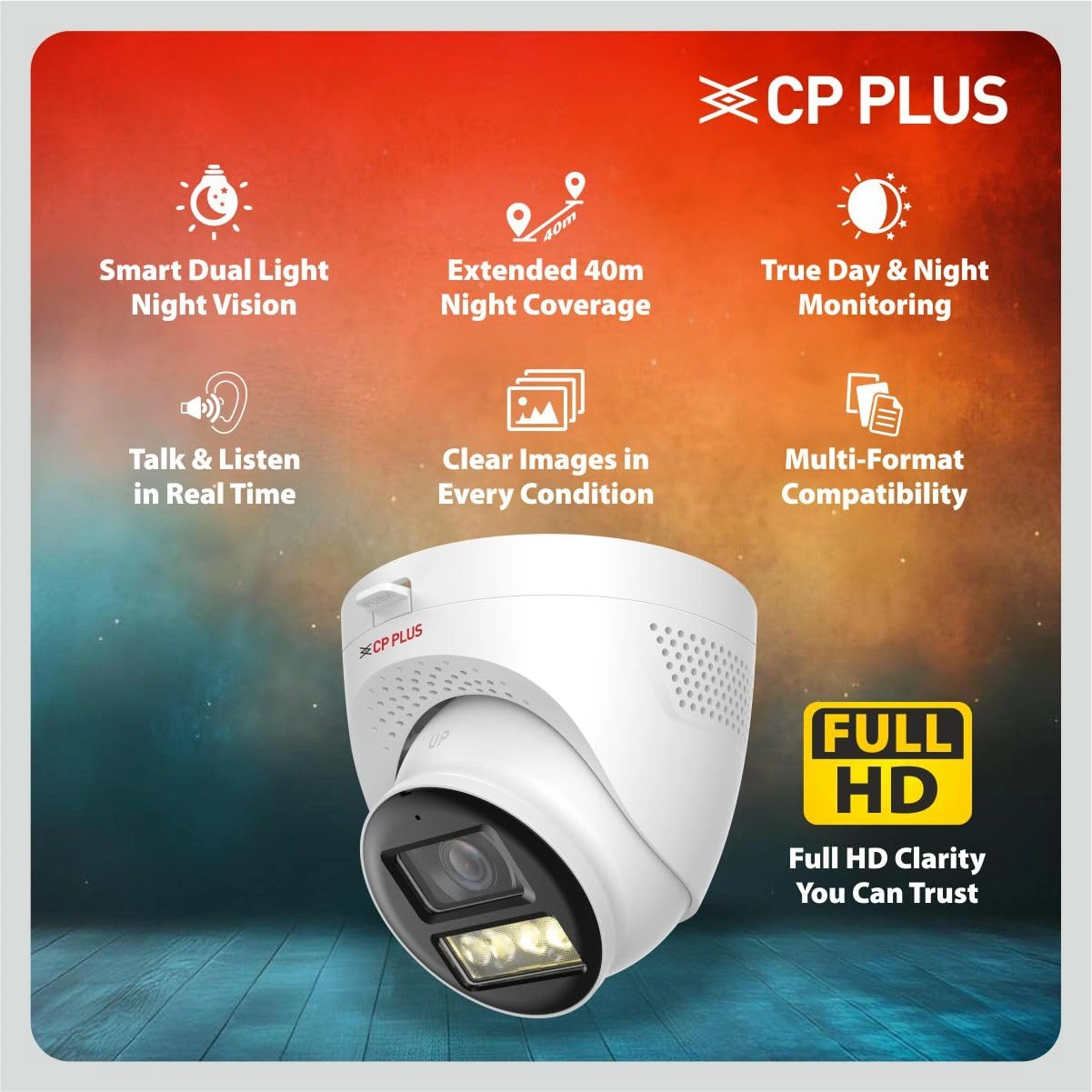

Key Features
- 2.4MP PS CMOS Image Sensor
- Full HD 1920 × 1080 Resolution
- Smart Dual Light with White Light & IR
- 40 Meter Smart IR Night Vision
- Built-in High-Sensitivity Microphone
- Supports Two-Way Audio*
- DWDR, BLC, HLC & 3D Noise Reduction
- Fixed 3.6 mm Lens (2.8 mm Optional)
- Day/Night ICR Switching
- Multi-Format Video Output (CVI/AHD/TVI/CVBS)
- IP67 Weatherproof Design
- Metal & High-Quality Plastic Housing
Technical Specifications
| Specification | Details |
|---|---|
| Brand | CP PLUS |
| Model | CP-UMC-DA24L4-L |
| Camera Type | Dual Light Dome Camera |
| Image Sensor | 1/3" 2.4MP PS CMOS Sensor |
| Maximum Resolution | 1920 × 1080 |
| Effective Resolution | 2MP Full HD (1080P) |
| Lens | 3.6 mm Fixed Lens (2.8 mm Optional) |
| Lens Mount | M12 |
| Aperture | F2.0 |
| Night Vision | Smart IR & Smart Dual Light |
| IR Distance | Up to 40 Meters |
| White Light | Smart Dual Light |
| Audio | Built-in Microphone |
| Two-Way Audio | Supported* |
| Day/Night Mode | Auto (ICR) / Color / B&W |
| Image Enhancement | DWDR, BLC, HLC, 2D NR |
| Frame Rate | Up to 30fps @ 1080P |
| Video Output | CVI / TVI / AHD / CVBS |
| Pan | 0°–360° |
| Tilt | 0°–78° |
| Rotation | 0°–360° |
| Minimum Illumination | 0.01 Lux (Color), 0 Lux with IR |
| Signal-to-Noise Ratio | >55 dB |
| Power Supply | 12V DC (±30%) |
| Power Consumption | Max. 9.37W |
| Weather Protection | IP67 |
| Operating Temperature | -40°C to +60°C |
| Housing Material | Metal + Plastic |
| Dimensions | 109.9 × 105.9 mm |
Product Description
The CP PLUS CP-UMC-DA24L4-L is a 2.4MP Full HD Dual Light Dome Camera designed to deliver reliable surveillance in residential, commercial, and industrial environments. Equipped with a 1/3" PS CMOS image sensor, Smart Dual Light technology, and 40-meter IR night vision, it provides clear video in both daylight and low-light conditions.
Advanced imaging features including DWDR, BLC, HLC, and 2D Noise Reduction improve image quality in challenging lighting environments. The camera also features a built-in microphone, support for two-way audio (with a compatible DVR), and a rugged IP67 weatherproof housing, making it suitable for both indoor and outdoor security installations.
Applications
- Homes & Apartments
- Offices
- Retail Stores
- Warehouses
- Schools & Colleges
- Hospitals
- Hotels
- Banks & ATMs
- Parking Areas
- Industrial Facilities
Package Contents
- 1 × CP PLUS CP-UMC-DA24L4-L Dual Light Dome Camera
- Mounting Screws & Accessories
- User Manual
