CP PLUS : UNC-DA41L3C-D-LQ2
*Specifications as per manufacturer, subject to change without notice.
Available Offer
Share :

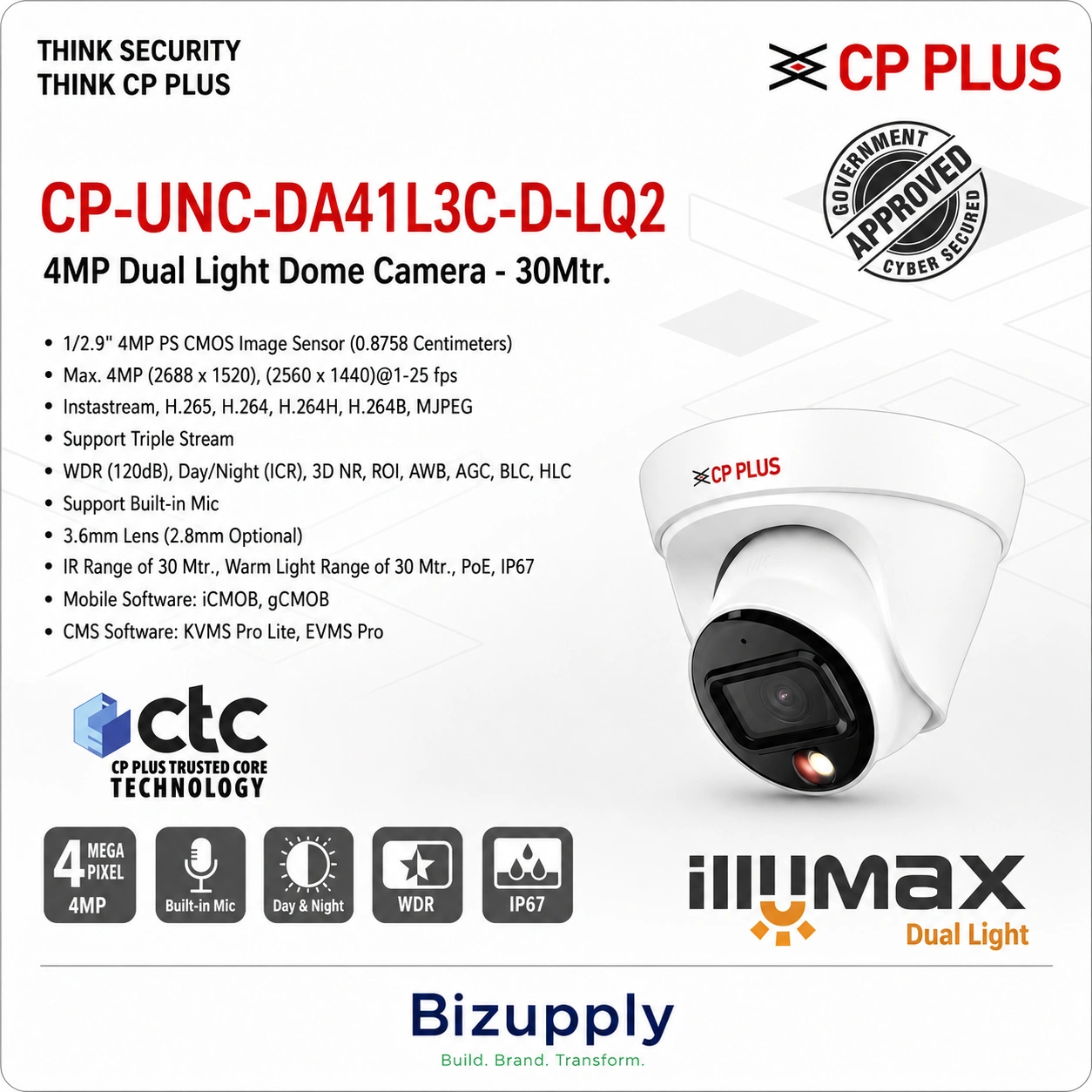

CP PLUS CP-UNC-DA41L3C-D-LQ2 4MP AI Dual Light IP Dome Camera | PoE | Built-in Mic | 30M IR | IP67
Key Features
- 4MP (2688 × 1520) Resolution
- 1/2.9" PS CMOS Image Sensor
- 30M Smart IR + 30M Warm Light
- Built-in Microphone
- Human & Vehicle Detection
- 120dB True WDR & 3D Noise Reduction
- H.265, H.264 & Instastream Compression
- Triple Stream Support
- PoE (802.3af) & Dual Power Backup
- IP67 Metal Housing
- ONVIF Profile S, T & G Compatible
Technical Specifications
| Specification | Details |
|---|---|
| Brand | CP PLUS |
| Model | CP-UNC-DA41L3C-D-LQ2 |
| Camera Type | 4MP Network Dual Light Dome Camera |
| Image Sensor | 1/2.9" 4MP PS CMOS |
| Maximum Resolution | 2688 × 1520 |
| Lens | 3.6mm Fixed (2.8mm Optional) |
| Viewing Angle | 78° (3.6mm) |
| Video Compression | Instastream, H.265, H.264, MJPEG |
| Frame Rate | Up to 25fps |
| Audio | Built-in Microphone |
| AI Features | Human & Vehicle Detection |
| Night Vision | 30M IR + 30M Warm Light |
| WDR | 120dB True WDR |
| Noise Reduction | 3D DNR |
| Network | RJ45 10/100 Mbps |
| Protocols | IPv4, IPv6, ONVIF, RTSP, HTTPS, RTP, DHCP |
| Power | 12V DC / PoE (802.3af) |
| Weatherproof | IP67 |
| Operating Temperature | -40°C to +60°C |
| Housing | Metal + Plastic |
| Dimensions | 85.5 × 109 mm |
| Weight | 250 g |
Product Description
The CP PLUS CP-UNC-DA41L3C-D-LQ2 is a 4MP AI IP Dual Light Dome Camera designed for professional indoor and outdoor surveillance. Equipped with a 1/2.9" CMOS sensor, 30-meter Smart IR, 30-meter warm light, and 120dB True WDR, it delivers sharp images in all lighting conditions.
Built-in AI Human & Vehicle Detection, H.265 compression, Instastream technology, PoE support, and an integrated microphone provide intelligent monitoring while reducing bandwidth and storage usage. The IP67-rated housing ensures reliable operation in demanding environments, making it ideal for homes, offices, retail stores, warehouses, schools, hospitals, and commercial premises.
Applications
- Homes
- Offices
- Retail Stores
- Warehouses
- Schools
- Hospitals
- Commercial Buildings
- Industrial Sites
Package Contents
- CP PLUS CP-UNC-DA41L3C-D-LQ2 Camera
- Mounting Kit
- User Manual
