CP PLUS : UVR-0401F1V-I
Available Offer
Share :

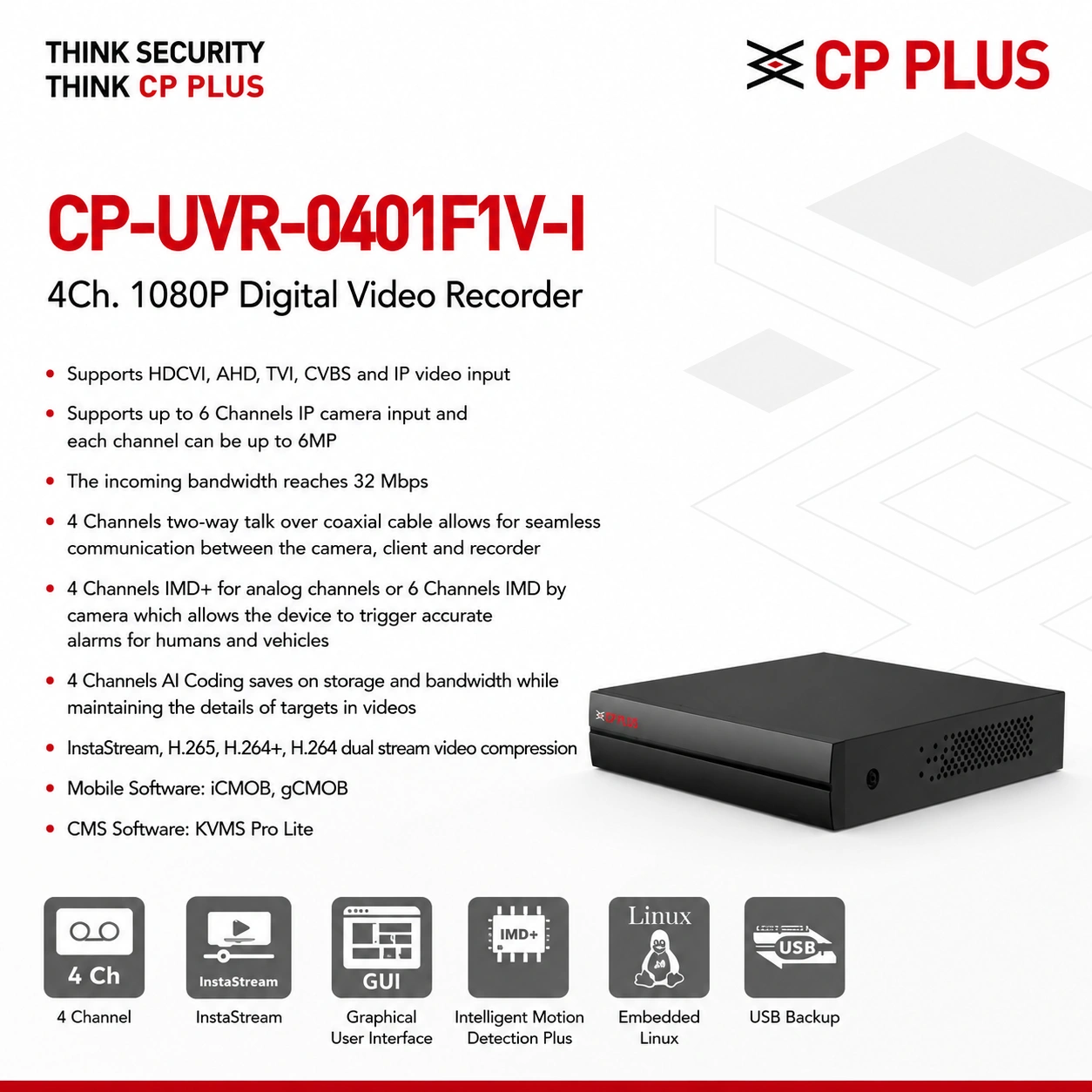

CP PLUS CP-UVR-0401F1V-I 4 Channel 1080P AI Digital Video Recorder | H.265 | 6CH IP Support | AI Coding | IMD+
Key Features
- 4-Channel AI Hybrid Digital Video Recorder
- Supports HDCVI, AHD, TVI, CVBS & IP Cameras
- Supports Up to 6 IP Cameras (Up to 6MP Resolution)
- AI IMD+ Human & Vehicle Detection
- AI Coding for Reduced Storage & Bandwidth
- Instastream, H.265, H.264+ & H.264 Compression
- 32 Mbps Incoming/Recording/Outgoing Bandwidth
- 4-Channel Two-Way Audio over Coaxial Cable
- HDMI & VGA Simultaneous Full HD Output
- Smart Playback & Event Playback
- Supports Up to 16TB SATA Hard Drive
- ONVIF Profile T, S & G Compatible
- Remote Monitoring via iCMOB & gCMOB
- KVMS Pro Lite CMS Support
Technical Specifications
| Specification | Details |
|---|---|
| Brand | CP PLUS |
| Model | CP-UVR-0401F1V-I |
| DVR Type | 4 Channel AI Digital Video Recorder |
| Processor | Industrial Grade Processor |
| Operating System | Embedded Linux |
| Analog Camera Input | 4 BNC Ports (HDCVI / AHD / TVI / CVBS Auto Detection) |
| IP Camera Support | Up to 6 Channels (Up to 6MP Each) |
| Incoming Bandwidth | 32 Mbps |
| Recording Bandwidth | 32 Mbps |
| Outgoing Bandwidth | 32 Mbps |
| Video Compression | AI Coding, Instastream, H.265, H.264+, H.264 |
| AI Features | IMD+ Human & Vehicle Detection, Irregular Black Block Masking |
| IMD by Camera | Up to 6 Channels |
| Video Output | 1 × HDMI, 1 × VGA (Up to 1920 × 1080) |
| Video Display | 1 / 4 / 6 Split Screen |
| Stream Type | Dual Stream |
| Recording Modes | General, Alarm, Motion Detection |
| Playback | Instant, General, Event, Tag & Smart Playback |
| Playback Channels | 1 / 4 Channels |
| Audio Input | 1 RCA + 4 BNC Coaxial Audio |
| Audio Output | 1 RCA |
| Two-Way Audio | 4-Channel Coaxial Two-Way Talk |
| Audio Compression | G.711a, G.711u, PCM, AAC |
| HDD Support | 1 SATA HDD up to 16TB |
| USB Ports | 2 × USB 2.0 |
| Network Interface | 1 × RJ45 10/100 Mbps Ethernet |
| Supported Protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, DHCP, DNS, FTP, SMTP, ONVIF, CGI, SDK |
| Smartphone Support | Android & iOS |
| Web Browser Support | Chrome, Edge, Firefox, Safari, Internet Explorer |
| Backup | USB & Network |
| Power Supply | 12V DC, 1.5A |
| Power Consumption | Less than 4W (Without HDD) |
| Operating Temperature | -10°C to +45°C |
| Storage Temperature | -20°C to +60°C |
| Dimensions | 197 × 204.3 × 41.5 mm |
| Weight | 580 g |
Product Description
The CP PLUS CP-UVR-0401F1V-I is a 4 Channel Full HD AI Digital Video Recorder (DVR) designed for advanced hybrid surveillance systems. It supports HDCVI, AHD, TVI, CVBS, and IP cameras, allowing seamless integration with both analog and IP-based CCTV installations. With support for up to 6 IP cameras (up to 6MP resolution) and 32 Mbps bandwidth, it delivers smooth, high-quality video recording and playback.
Powered by AI IMD+ Human & Vehicle Detection, the DVR intelligently filters false alarms caused by environmental changes such as rain, shadows, and moving leaves. AI Coding, Instastream, and H.265 compression significantly reduce storage usage and network bandwidth while preserving image quality. Additional features such as 4-channel coaxial two-way audio, HDMI & VGA Full HD output, up to 16TB SATA storage, and remote monitoring through iCMOB, gCMOB, and KVMS Pro Lite make it an ideal solution for residential, commercial, and enterprise CCTV deployments.
Applications
- Homes & Villas
- Offices & Corporate Buildings
- Retail Stores & Shopping Outlets
- Warehouses & Industrial Facilities
- Educational Institutions
- Hospitals & Healthcare Centers
- Hotels & Hospitality
- Banks & Financial Institutions
- Apartment Complexes
- Small & Medium Business Surveillance
Package Contents
- 1 × CP PLUS CP-UVR-0401F1V-I AI Digital Video Recorder
- Power Adapter
- USB Mouse
- User Manual
