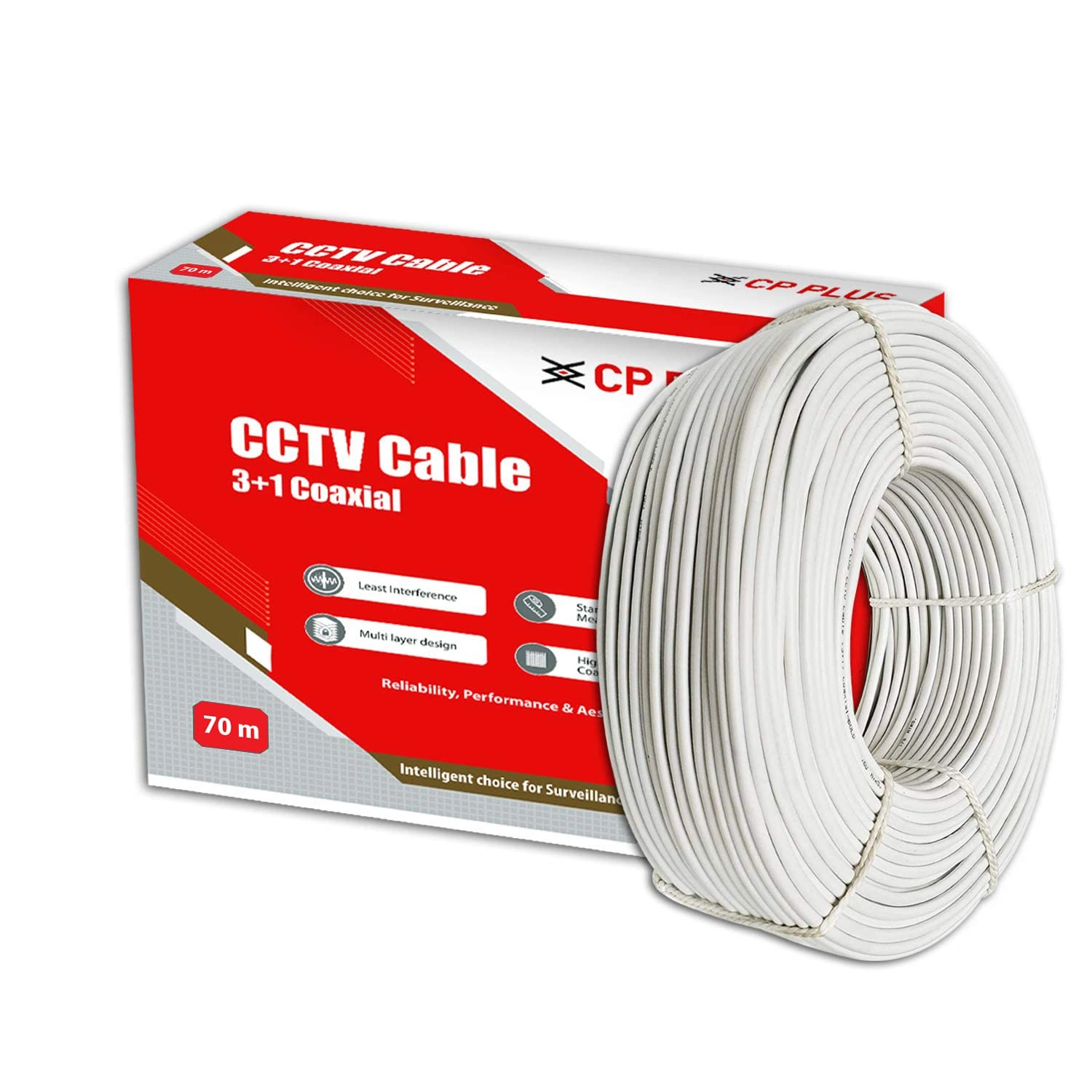

CP-ECC-70RS 3+1 CCTV Cable | 70 Meter | Copper Conductor | Video, Power & Audio
Short Description
- Designed for reliable CCTV camera installation.
- Solid video core helps provide stable video transmission.
- Stranded copper power cores for camera power connectivity.
- Suitable for analog CCTV cameras and DVR installations.
- Standard 70-meter length for convenient installation.
Technical Specifications
| Specification | Details |
|---|
| Brand | Consistent |
| Model | CP-ECC-70RS |
| Product Type | 3+1 CCTV Cable |
| Cable Length | 70 Meters |
| Power Conductor | Stranded Annealed Bare Copper |
| Video Conductor | Solid Annealed Bare Copper |
| Power Core Strands | 14 |
| Video Core Strands | 48 |
| Video Wire Diameter | 0.52 ± 0.02 mm |
| Video Core Insulation Diameter | 1.5 mm |
| Insulation | PVC Power Core |
| Sheath Thickness | 1.3 ± 0.05 mm |
| Braiding Material | AL Alloy |
| Overall Diameter | Approx. 5.6 mm |
| Applications | CCTV Video, Power & Audio |
Product Description

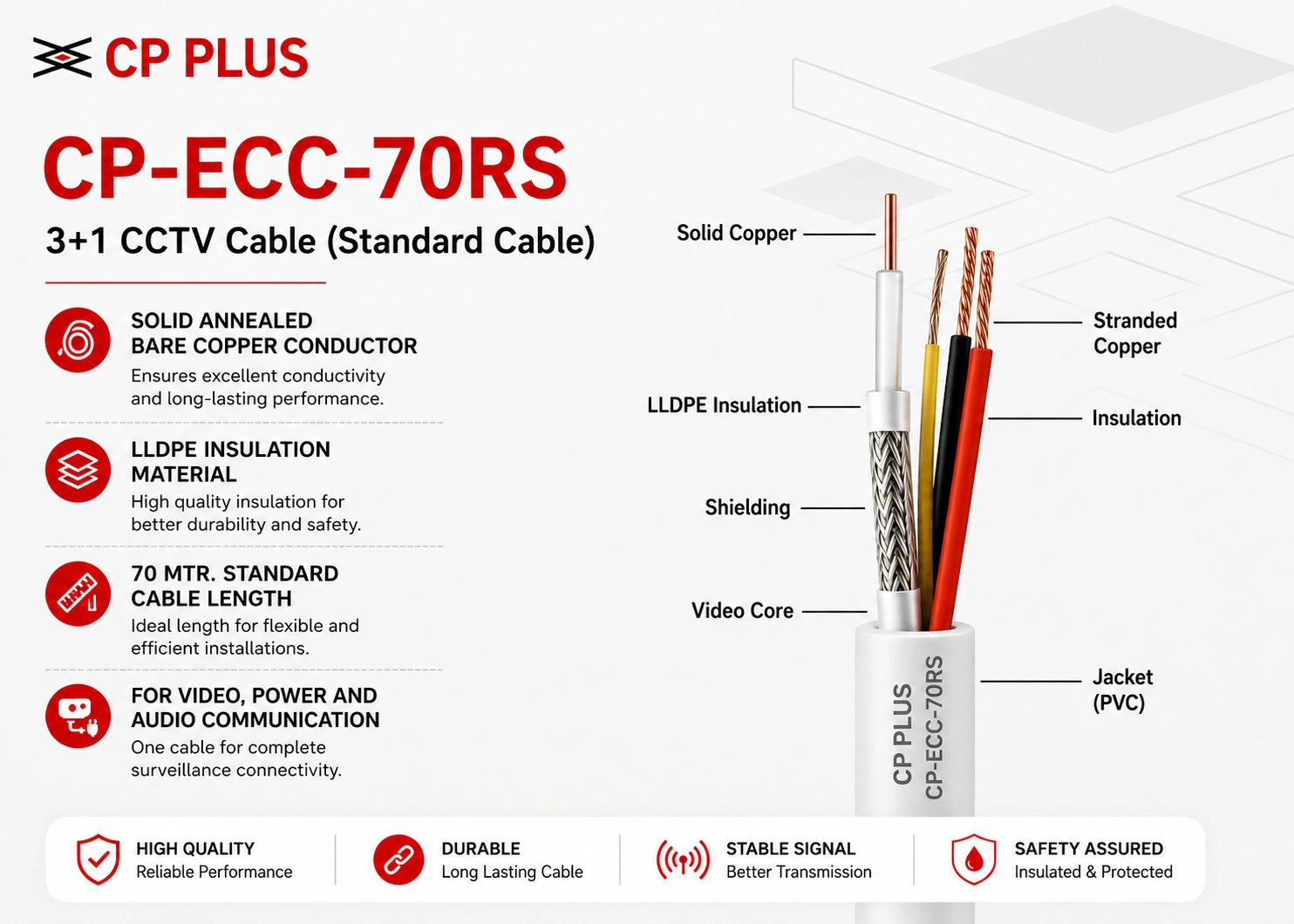

CP-ECC-70RS is a 70-meter 3+1 CCTV cable designed for analog CCTV camera installations, carrying video, power and audio communication through a single cable. It features a solid annealed bare copper video conductor, stranded copper power cores and protective insulation for reliable CCTV wiring.
Ideal For
- CCTV Camera Installation
- Analog CCTV Systems
- DVR Camera Wiring
- Home & Office Security
- Commercial CCTV Projects
