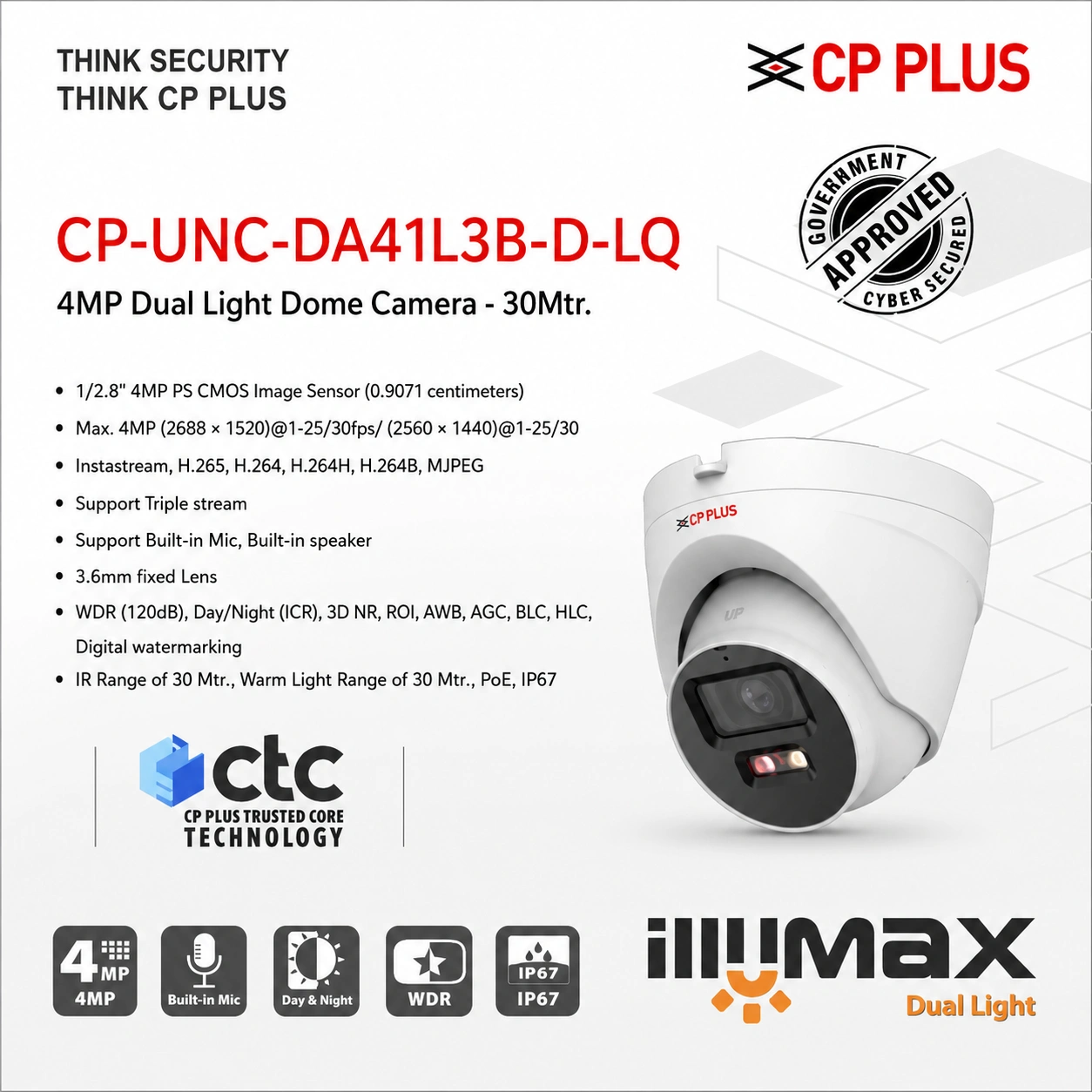

CP PLUS CP-UNC-DA41L3B-D-LQ 4MP Dual Light IP Dome Camera | 30M IR | PoE | Built-in Mic & Speaker | IP67
Key Features
- 4MP Ultra HD (2688 × 1520) Resolution
- 1/2.8" Progressive Scan CMOS Image Sensor
- Instastream, H.265 & H.264 Video Compression
- Smart Dual Light with IR & Warm Light
- 30 Meter IR Night Vision
- 30 Meter Warm Light Full-Color Illumination
- Built-in Microphone & Speaker
- AI Human & Vehicle Detection (IMD)
- 120dB True WDR for High-Contrast Scenes
- Triple Stream Video Support
- Smart Search with Compatible CP PLUS NVRs
- ONVIF Profile S, G & T Compatible
- PoE (IEEE 802.3af) Support
- IP67 Weatherproof Metal Housing
Technical Specifications
| Specification | Details |
|---|---|
| Brand | CP PLUS |
| Model | CP-UNC-DA41L3B-D-LQ |
| Camera Type | IP Dual Light Dome Camera |
| Image Sensor | 1/2.8" 4MP PS CMOS |
| Maximum Resolution | 2688 × 1520 (4MP) |
| Lens | 3.6mm Fixed Lens |
| Lens Mount | M12 |
| Aperture | F1.4 |
| Viewing Angle | H: 78°, V: 42°, D: 92° |
| Video Compression | Instastream, H.265, H.264, H.264H, H.264B, MJPEG |
| Stream Capability | Triple Stream |
| Frame Rate | Up to 30fps @ 4MP |
| Night Vision | Smart IR & Warm Light |
| IR Distance | Up to 30 Meters |
| Warm Light Distance | Up to 30 Meters |
| Audio | Built-in Microphone & Speaker |
| AI Features | Human & Vehicle Detection (IMD), Motion Detection, Smart Search, ROI |
| Image Enhancement | 120dB WDR, 3D NR, AWB, AGC, BLC, HLC |
| Ethernet | RJ-45 (10/100 Mbps) |
| Network Protocols | IPv4, IPv6, HTTP, HTTPS, RTSP, RTP, SFTP, ONVIF, DHCP, SMTP, NTP, SSL, TLS 1.2 and more |
| Browser Support | Chrome, Firefox, Internet Explorer |
| Memory | 128MB RAM, 128MB ROM |
| Power Supply | 12V DC / PoE (IEEE 802.3af) |
| Power Consumption | Max. 10W (PoE), Max. 8.5W (12V DC) |
| Weatherproof Rating | IP67 |
| Operating Temperature | -40°C to +60°C |
| Housing | Metal + Plastic |
| Dimensions | 100.9 × 109.9 mm |
| Weight | 320 g |
Product Description
The CP PLUS CP-UNC-DA41L3B-D-LQ is a 4MP Ultra HD IP Dual Light Dome Camera engineered for professional surveillance in commercial, industrial, and residential environments. Equipped with a 1/2.8" CMOS image sensor, Instastream technology, and H.265 compression, it delivers crystal-clear 4MP video while minimizing bandwidth and storage usage.
The camera combines 30-meter Smart IR and 30-meter Warm Light illumination for superior night-time visibility. Advanced features including 120dB True WDR, AI Human & Vehicle Detection, built-in microphone and speaker, Triple Stream support, and PoE connectivity provide intelligent monitoring and easy installation. Its IP67 weatherproof housing ensures dependable operation in demanding indoor and outdoor environments.
Applications
- Residential Security
- Office Buildings
- Retail Stores & Showrooms
- Warehouses
- Banks & ATMs
- Schools & Colleges
- Hospitals
- Hotels
- Parking Areas
- Industrial & Commercial Premises
Package Contents
- 1 × CP PLUS CP-UNC-DA41L3B-D-LQ 4MP IP Dual Light Dome Camera
- Mounting Kit
- Quick Installation Guide
