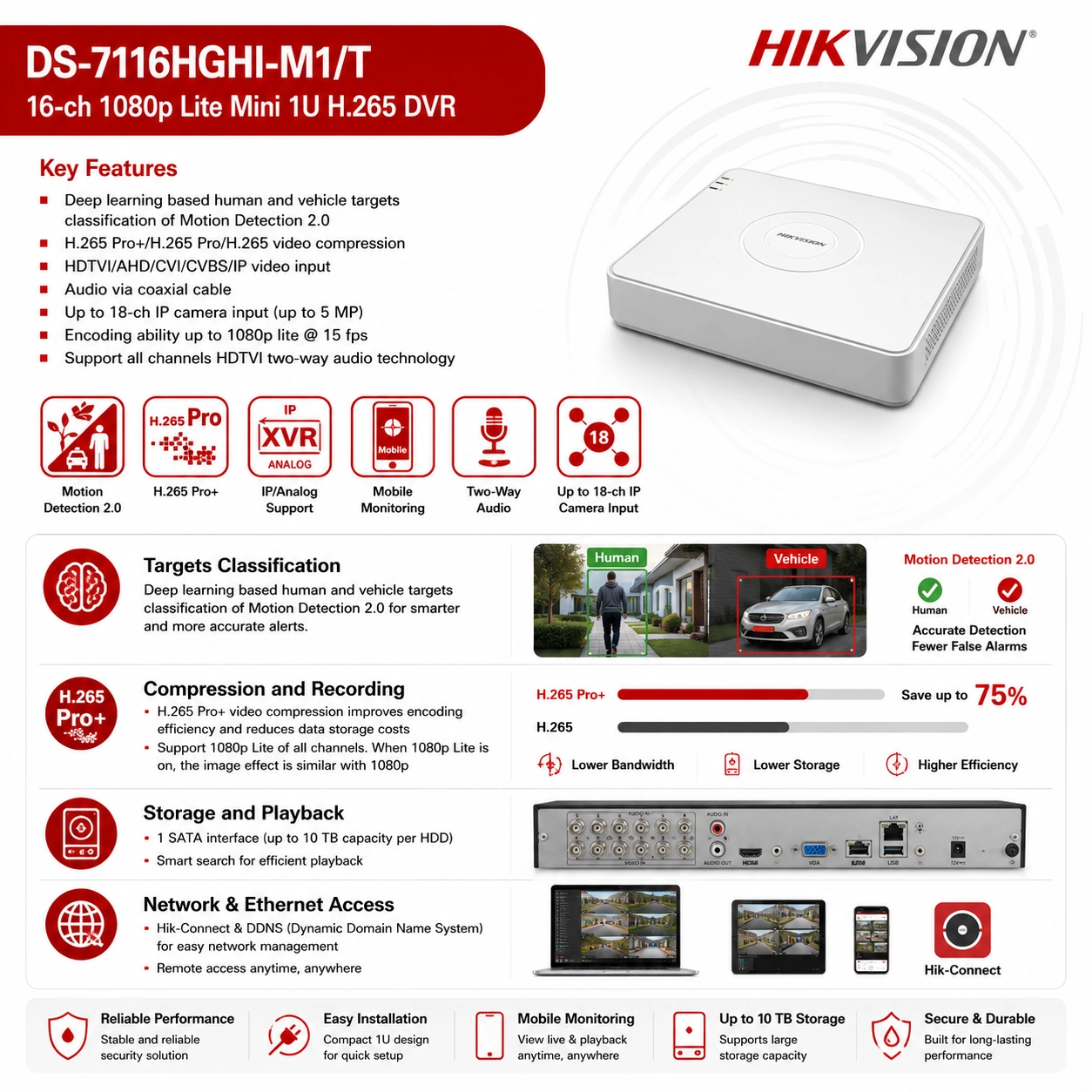

HIKVISION DS-7116HGHI-M1/T 16-Channel DVR | H.265 Pro+ | Motion Detection 2.0 | 5MP IP
Key Features
- 16 BNC analog camera inputs
- Supports HDTVI, AHD, HDCVI, CVBS and IP cameras
- Up to 18 IP camera channels
- Up to 5MP IP camera support
- Deep-learning human and vehicle classification
- Quick search by object or event type
- H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 compression
- 16-channel synchronous playback
- Hik-Connect remote monitoring
- 96 Mbps total network bandwidth
Technical Specifications
| Specification | Details |
|---|
| Brand | HIKVISION |
| Model | DS-7116HGHI-M1/T |
| Product Type | 16-Channel 1080p Lite DVR |
| Analog Inputs | 16 × BNC |
| IP Camera Inputs | Up to 18 channels |
| IP Camera Resolution | Up to 5MP |
| Video Inputs | HDTVI / AHD / HDCVI / CVBS / IP |
| Video Compression | H.265 Pro+, H.265 Pro, H.265, H.264+, H.264 |
| AI Detection | Human & Vehicle Classification |
| Motion Detection | Motion Detection 2.0 |
| Audio | 16-ch Coaxial + 1-ch RCA |
| Two-Way Audio | Supported |
| HDMI Output | 1920 × 1080 @ 60Hz |
| VGA Output | 1920 × 1080 @ 60Hz |
| HDD | 1 × SATA, up to 6TB |
| Network | RJ45 10/100 Mbps |
| USB | 2 × USB 2.0 |
| Remote Access | Hik-Connect |
| Network Bandwidth | 96 Mbps |
| Power | 12V DC, 2A |
| Dimensions | 285 × 210 × 48mm |
| Weight | ≤1.8kg without HDD |
Product Description
The HIKVISION DS-7116HGHI-M1/T is a 16-channel hybrid CCTV DVR supporting HDTVI, AHD, HDCVI, CVBS and IP cameras. Its Motion Detection 2.0 with human and vehicle classification helps reduce false alarms, while H.265 Pro+ compression provides efficient video storage. It supports up to 18 IP cameras and 6TB HDD capacity, making it suitable for medium-sized CCTV installations.
Ideal For
- Homes & Apartments
- Shops & Offices
- Warehouses
- Commercial Buildings
- Schools & Institutions
- Medium-Sized CCTV Systems
