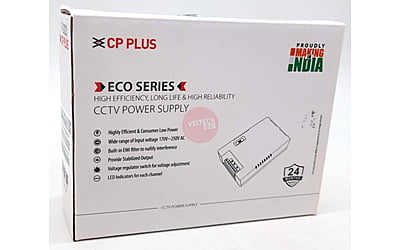

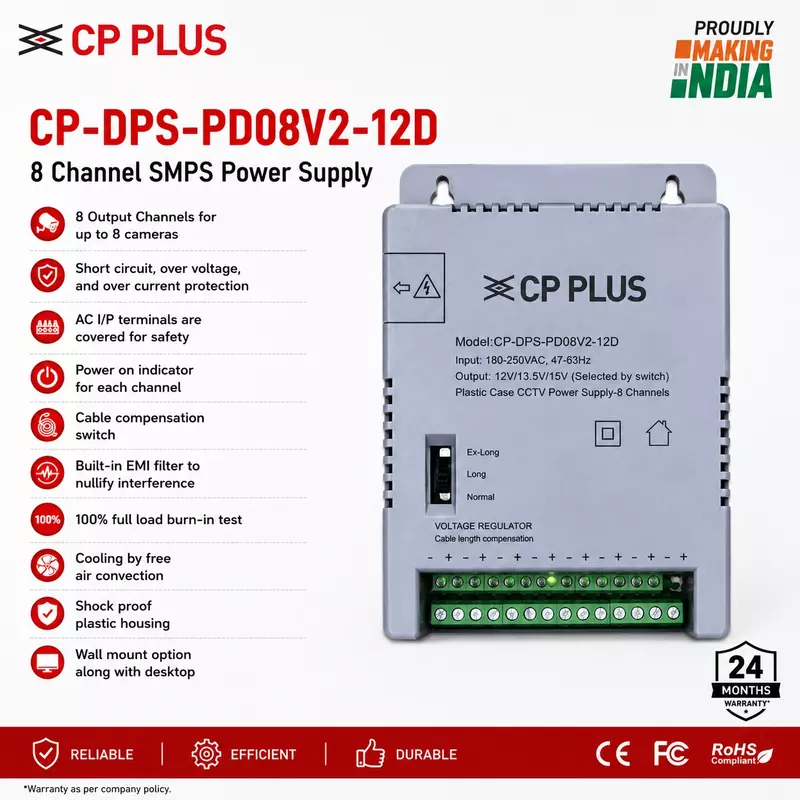

CP PLUS 8 Channel 12V DC Power Supply | Cable Compensation | CP-DPS-PD08V2-12D
Key Features
- 8 Independent Output Channels
- Stable 12V DC Output
- Individual LED Status Indicator for Each Channel
- Cable Compensation Switch for Voltage Adjustment
- Built-in EMI Filter to Reduce Electrical Noise
- Constant Current Limiting Circuit
- Automatic Overload Protection with Recovery
- 100% Full Load Burn-in Tested
- Free Air Convection Cooling
- Durable Plastic Housing
- Easy Installation and Maintenance
Technical Specifications
| Specification | Details |
|---|---|
| Brand | CP PLUS |
| Model | CP-DPS-PD08V2-12D |
| Product Type | 8 Channel Power Supply |
| Input Voltage | 200–240V AC |
| Input Frequency | 47–63Hz |
| Output Voltage | 12V DC |
| Output Channels | 8 |
| Output Current | Up to 5A |
| Voltage Adjustment | 11.4V–12.6V |
| Efficiency | 86% |
| Ripple & Noise | ≤120mVp-p |
| Protection | Overload Protection with Auto Recovery |
| EMI Filter | Built-in |
| Cooling | Free Air Convection |
| Housing | Plastic |
| Operating Temperature | -20°C to +45°C |
| Dimensions | 144 × 109.5 × 33 mm |
Product Description
The CP PLUS CP-DPS-PD08V2-12D is a high-performance 8-channel 12V DC power supply designed to power multiple CCTV cameras, 8 independent output channels, and individual LED indicators, it offers reliable and convenient power distribution for surveillance systems. The cable compensation switch ensures stable voltage over long cable runs, while the built-in EMI filter, constant current limiting circuit, and automatic overload protection provide dependable and safe operation. Its compact plastic housing and free air cooling design make it ideal for residential, commercial, and industrial security installations.
Applications
- CCTV Camera Installations
- Home Security Systems
- Office Surveillance
- Retail Stores
- Schools & Colleges
- Warehouses
- Commercial Security Systems
- 12V DC Security Devices
Package Contents
- 1 × CP PLUS CP-DPS-PD08V2-12D 8 Channel Power Supply
- User Manual
