CP PLUS : ECC-90R
*Specifications as per manufacturer, subject to change without notice.
Non-returnable
₹1,213.00
Available Offer
Share :
Product Details

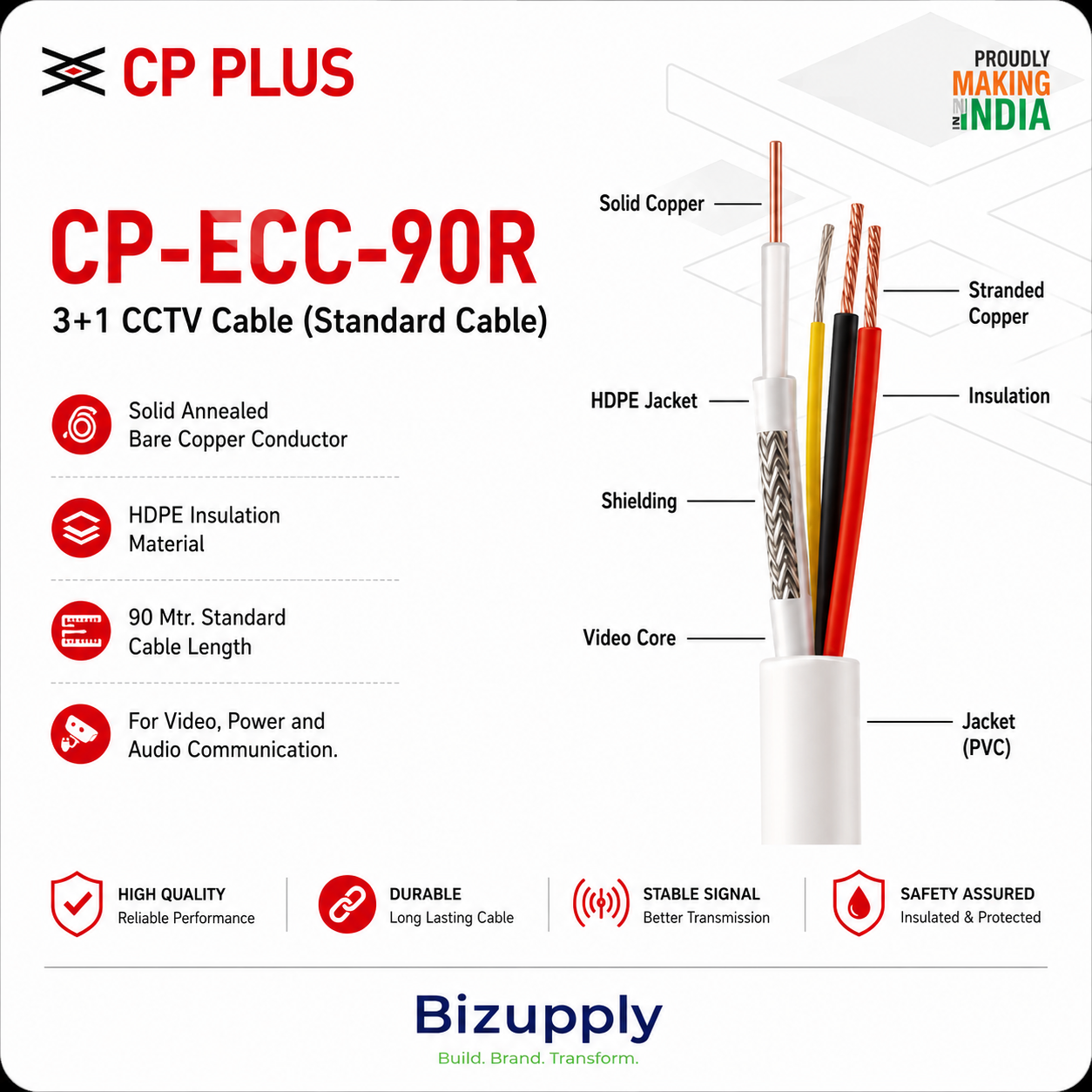

CP PLUS CP-ECC-90R 3+1 CCTV Cable 90 Meter | Bare Copper Conductor | HDPE Video Core | Power & Video Cable
Key Features
- Premium 3+1 CCTV Camera Cable
- 90 Meter Standard Roll
- Solid Annealed Bare Copper Video Conductor
- Three Stranded Power Conductors
- HDPE Insulated Video Core
- Aluminum Mylar Shielding
- High-Density CCA Braided Shield
- Low Signal Loss for Reliable Video Transmission
- Durable PVC Outer Jacket
- Sequential Meter Marking for Easy Installation
- Suitable for Analog CCTV Systems
- Ideal for Indoor & Outdoor CCTV Installations
Technical Specifications
| Specification | Details |
|---|---|
| Brand | CP PLUS |
| Model | CP-ECC-90R |
| Product Type | 3+1 CCTV Cable |
| Cable Length | 90 Meters |
| Video Conductor | Solid Annealed Bare Copper |
| Video Conductor Size | 1 × 0.60 ± 0.015 mm |
| Video Core Insulation | HDPE |
| Number of Video Cores | 1 |
| Video Core Color | Natural |
| Shielding | Aluminum Mylar |
| Braiding | CCA Braiding (48 × 0.12 ± 0.01 mm) |
| Video Core Jacket | HDPE |
| Video Core Diameter | 2.50 ± 0.20 mm |
| Power Conductor | Stranded Annealed Bare Copper |
| Power Conductor Size | 14 × 0.10 ± 0.010 mm |
| Number of Power Cores | 3 |
| Power Core Colors | Red, Yellow, Grey |
| Power Core Insulation | PVC |
| Power Core Diameter | 1.35 ± 0.10 mm |
| Outer Jacket Material | PVC |
| Outer Jacket Color | White |
| Video Jacket Color | Black |
| Outer Jacket Thickness | 0.65 mm (Nominal) |
| Outer Diameter | 5.70 ± 0.30 mm |
| Sequential Marking | Every Meter |
| Solid Conductor Resistance | 65 Ω/km @20°C (Max.) |
| Stranded Conductor Resistance | 175 Ω/km @20°C (Max.) |
| PVC Jacket Tensile Strength | Minimum 12.5 N/mm² |
| PVC Jacket Elongation | Minimum 150% |
Product Description
The CP PLUS CP-ECC-90R 3+1 CCTV Cable is a premium-quality surveillance cable designed for reliable power and video transmission in CCTV installations. Featuring a solid annealed bare copper video conductor with HDPE insulation, it ensures excellent signal quality with minimal attenuation over long distances.
The cable includes three stranded bare copper power cores with durable PVC insulation for stable power delivery to surveillance cameras. Enhanced with Aluminum Mylar shielding and high-density CCA braiding, it effectively minimizes electromagnetic interference, delivering clear and uninterrupted video signals.
Applications
- CCTV Camera Installations
- Analog HD Surveillance Systems
- Home Security Systems
- Office Buildings
- Retail Stores
- Warehouses
- Educational Institutions
- Hospitals
- Commercial Complexes
- Industrial Security Projects
Package Contents
- 1 × CP PLUS CP-ECC-90R 3+1 CCTV Cable (90 Meter Roll)
