CP PLUS : UNC-TA61L3C-LQ
Share :

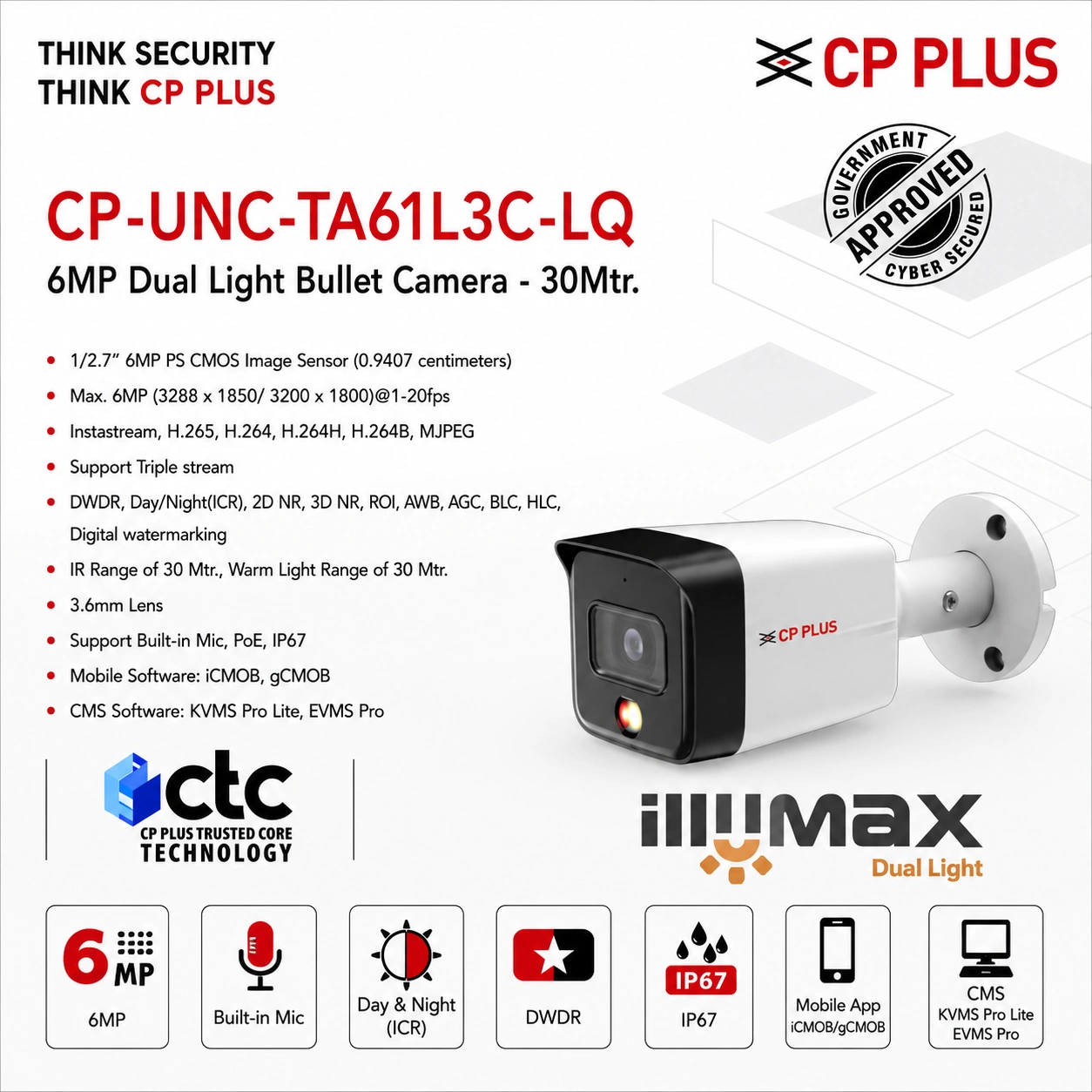

CP PLUS CP-UNC-TA61L3C-LQ 6MP Dual Light IP Bullet Camera | 30M IR | PoE | Built-in Mic | IP67
Key Features
- 6MP Ultra HD (3200 × 1800) Resolution
- 1/2.7" Progressive Scan CMOS Image Sensor
- Instastream, H.265 & H.264 Video Compression
- Smart Dual Light Technology
- 30 Meter IR Night Vision
- 30 Meter Warm Light Full-Color Illumination
- Built-in Microphone for Audio Recording
- AI Human & Vehicle Detection (IMD)
- DWDR, 2D NR & 3D NR Image Enhancement
- Triple Stream Video Support
- Smart Search with CP PLUS AI NVR
- OTA (Over-the-Air) Firmware Upgrade
- PoE (IEEE 802.3af) Support
- ONVIF Profile S, G & T Compatible
- IP67 Weatherproof Metal Housing
Technical Specifications
| Specification | Details |
|---|---|
| Brand | CP PLUS |
| Model | CP-UNC-TA61L3C-LQ |
| Camera Type | IP Dual Light Bullet Camera |
| Image Sensor | 1/2.7" 6MP PS CMOS |
| Maximum Resolution | 3200 × 1800 (6MP) |
| Lens | 3.6mm Fixed Lens |
| Lens Mount | M12 |
| Aperture | F1.4 |
| Viewing Angle | H: 91°, V: 46°, D: 110° |
| Video Compression | Instastream, H.265, H.264, H.264H, H.264B, MJPEG |
| Stream Capability | Triple Stream |
| Frame Rate | Up to 20fps @ 6MP |
| Night Vision | Smart IR & Warm Light |
| IR Distance | Up to 30 Meters |
| Warm Light Distance | Up to 30 Meters |
| Audio | Built-in Microphone |
| AI Features | Human & Vehicle Detection (IMD), Smart Search, Motion Detection, ROI |
| Image Enhancement | DWDR, 2D NR, 3D NR, AWB, AGC, BLC, HLC |
| Memory | 256MB RAM, 128MB ROM |
| Ethernet | RJ-45 (10/100 Mbps) |
| Network Protocols | IPv4, IPv6, HTTP, HTTPS, RTSP, RTP, ONVIF, DHCP, SMTP, TLS 1.2/1.3, InstaOn, SFTP, UPNP and more |
| Browser Support | Chrome, Firefox, Microsoft Edge, Internet Explorer |
| Storage Support | NAS, SFTP |
| Power Supply | 12V DC / PoE (IEEE 802.3af) |
| Power Consumption | Max. 5.3W (PoE), Max. 4W (12V DC) |
| Weatherproof Rating | IP67 |
| Operating Temperature | -40°C to +55°C |
| Housing | Metal + Plastic |
| Dimensions | 178.6 × 70 × 68.3 mm |
| Weight | 350 g |
Product Description
The CP PLUS CP-UNC-TA61L3C-LQ is a 6MP Ultra HD IP Dual Light Bullet Camera built for professional surveillance where superior image quality and intelligent monitoring are essential. Equipped with a 1/2.7" Progressive Scan CMOS sensor, Instastream technology, and H.265 video compression, it captures crystal-clear Ultra HD video while reducing storage and bandwidth requirements.
Featuring 30-meter Smart IR and 30-meter Warm Light illumination, the camera delivers excellent visibility in both complete darkness and low-light environments. Advanced capabilities such as AI Human & Vehicle Detection, built-in microphone, DWDR, 2D/3D Noise Reduction, Triple Stream support, PoE connectivity, and OTA firmware updates make it ideal for modern surveillance systems. Its rugged IP67-rated weatherproof housing ensures reliable operation in challenging indoor and outdoor environments.
Applications
- Residential Security
- Office Buildings
- Retail Stores & Shopping Malls
- Warehouses & Logistics Centers
- Banks & Financial Institutions
- Schools & Universities
- Hospitals
- Hotels & Resorts
- Parking Areas
- Industrial & Manufacturing Facilities
Package Contents
- 1 × CP PLUS CP-UNC-TA61L3C-LQ 6MP IP Dual Light Bullet Camera
- Mounting Kit
- Quick Installation Guide
