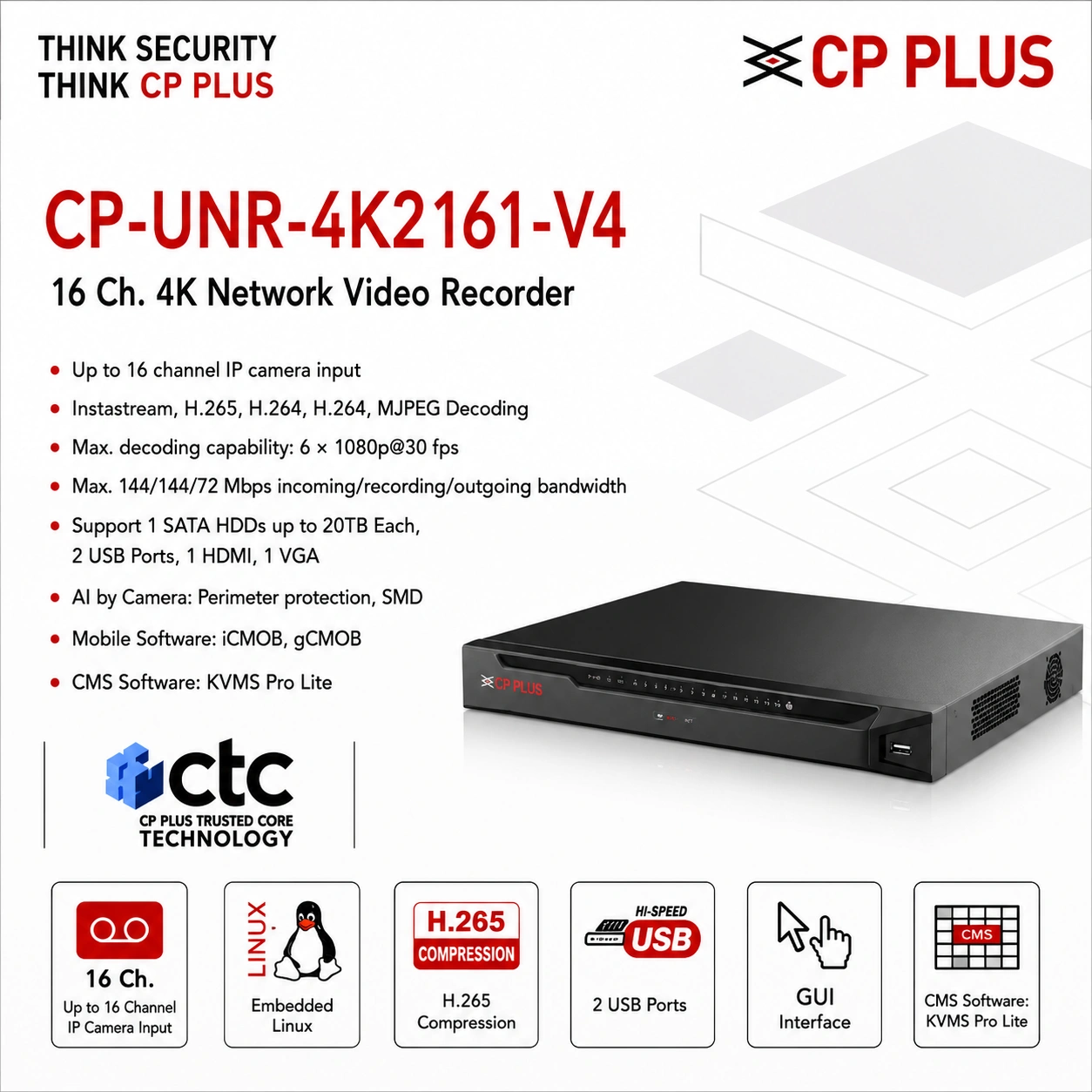

CP PLUS : UNR-4K2161-V4
- 16 Channel 4K Network Video Recorder
- Supports Up to 8MP IP Cameras
- 144Mbps Incoming Bandwidth
- HDMI 4K & VGA Video Output
- Supports 1 SATA HDD up to 20TB
- 2 years brand warranty
Available Offer
Share :
CP PLUS CP-UNR-4K2161-V4 16 Channel 4K Network Video Recorder | 16CH | H.265 | 144Mbps | AI NVR | 20TB HDD Support
Key Features
- Supports Up to 16 IP Camera Channels
- Supports Cameras Up to 8MP Resolution
- Instastream, H.265, H.264+, H.264 & MJPEG Decoding
- 144Mbps Incoming & Recording Bandwidth
- HDMI 4K (3840×2160) Video Output
- AI by Camera: Perimeter Protection & Smart Motion Detection (SMD)
- AI by NVR: Smart Motion Detection (SMD)
- Smart Playback & Event Playback
- Multi-Brand Camera Compatibility
- ONVIF Profile S, G & T Support
- Gigabit Ethernet Port
- Supports 1 SATA HDD up to 20TB
- USB & Network Backup
- Embedded Linux Operating System
Technical Specifications
| Specification | Details |
|---|---|
| Brand | CP PLUS |
| Model | CP-UNR-4K2161-V4 |
| Product Type | 16 Channel 4K Network Video Recorder (NVR) |
| Processor | Industrial-grade Processor |
| Operating System | Embedded Linux |
| IP Camera Channels | 16 |
| Maximum Camera Resolution | Up to 8MP |
| Video Compression | Instastream, H.265, H.264+, H.264, MJPEG |
| AI Features | Perimeter Protection, SMD (AI by Camera & AI by NVR) |
| Incoming Bandwidth | 144 Mbps (AI Disabled), 72 Mbps (AI Enabled) |
| Recording Bandwidth | 144 Mbps (AI Disabled), 72 Mbps (AI Enabled) |
| Outgoing Bandwidth | 72 Mbps (AI Disabled), 36 Mbps (AI Enabled) |
| Decoding Capability | Up to 6 × 1080p @ 30fps |
| Video Output | 1 × HDMI (Up to 4K), 1 × VGA |
| HDMI Resolution | 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 |
| VGA Resolution | 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Display Split | 1 / 4 / 8 / 9 / 16 |
| HDD Support | 1 × SATA HDD (Up to 20TB) |
| Audio Input | 1 × RCA |
| Audio Output | 1 × RCA |
| Audio Compression | G.711a, G.711u, PCM, G.726, AAC |
| Playback | Instant, Event, Smart, Tag & General Playback |
| Multi-Channel Playback | Up to 16 Channels |
| Backup | USB Device & Network |
| Ethernet | 1 × Gigabit RJ-45 (10/100/1000 Mbps) |
| USB Ports | 2 × USB 2.0 (Front & Rear) |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, DHCP, DNS, SMTP, ONVIF Profile S/G/T, CGI, SDK, InstaOn |
| Mobile Apps | iCMOB, gCMOB |
| CMS Software | KVMS Pro Lite |
| Browser Support | Chrome, Firefox, Edge, Safari, Internet Explorer |
| Power Supply | 12V DC, 1.5A |
| Power Consumption | Less than 10W (Without HDD) |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -20°C to +60°C |
| Dimensions | 260 × 232.5 × 47.6 mm |
| Weight | 0.85 kg |
Product Description
The CP PLUS CP-UNR-4K2161-V4 is a 16 Channel 4K AI Network Video Recorder (NVR) designed for professional surveillance systems requiring intelligent analytics and high-resolution recording. Supporting up to 16 IP cameras with resolutions up to 8MP, it utilizes Instastream, H.265, and H.264+ compression technologies to deliver efficient storage while maintaining exceptional video quality.
Equipped with 144Mbps network bandwidth, 4K HDMI output, AI-powered Perimeter Protection, and Smart Motion Detection (SMD), this NVR significantly reduces false alarms and enhances event accuracy. It supports multi-brand ONVIF cameras, Gigabit Ethernet, 1 SATA HDD up to 20TB, and advanced playback features including event, tag, and smart playback. Remote access through iCMOB, gCMOB, and KVMS Pro Lite makes surveillance management convenient from anywhere.
Applications
- Commercial Buildings
- Shopping Malls & Retail Chains
- Warehouses & Distribution Centers
- Manufacturing Facilities
- Educational Institutions
- Hospitals & Healthcare Facilities
- Hotels & Hospitality
- Residential Apartments & Villas
- Banking & Financial Institutions
- Enterprise & Government Surveillance
Package Contents
- 1 × CP PLUS CP-UNR-4K2161-V4 16 Channel 4K Network Video Recorder
- Power Adapter
- USB Mouse
- Quick Installation Guide
