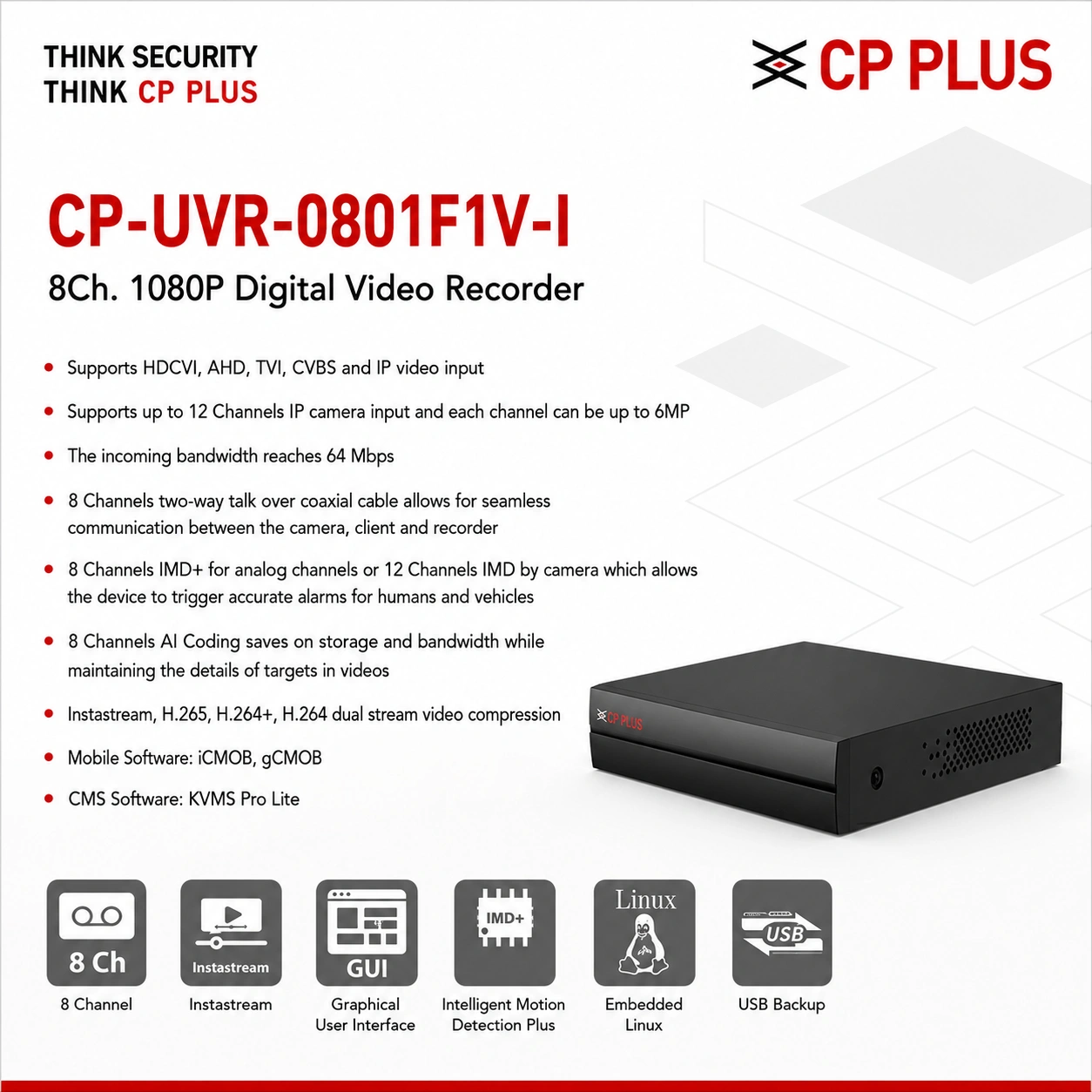

CP PLUS : UVR-0801F1V-I
- 8 Channel Full HD 5MP Supported AI Digital Video Recorder
- AI Human & Vehicle Detection (IMD+)
- 8-Channel Two-Way Talk over Coaxial Cable
- 2 year brand warranty
Available Offer
Share :
CP PLUS CP-UVR-0801F1V-I 8 Channel 1080P AI Digital Video Recorder | H.265 | 12CH IP Support | AI Coding | IMD+
Key Features
- 8-Channel AI Hybrid Digital Video Recorder
- Supports HDCVI, AHD, TVI, CVBS & IP Cameras
- Supports Up to 12 IP Cameras (4 Default IP + 8 Convertible Channels)
- AI IMD+ Human & Vehicle Detection
- AI Coding for Reduced Storage & Bandwidth
- Instastream, H.265, H.264+ & H.264 Compression
- 64 Mbps Incoming, Recording & Outgoing Bandwidth
- 8-Channel Two-Way Audio over Coaxial Cable
- HDMI & VGA Simultaneous Full HD Output
- Smart Playback & Event Playback
- Supports Up to 16TB SATA Hard Drive
- ONVIF Profile T, S & G Compatible
- Remote Monitoring via iCMOB & gCMOB
- KVMS Pro Lite CMS Support
Technical Specifications
| Specification | Details |
|---|---|
| Brand | CP PLUS |
| Model | CP-UVR-0801F1V-I |
| DVR Type | 8 Channel AI Digital Video Recorder |
| Processor | Industrial Grade Processor |
| Operating System | Embedded Linux |
| Analog Camera Input | 8 BNC Ports (HDCVI / AHD / TVI / CVBS Auto Detection) |
| IP Camera Support | Up to 12 Channels (4 Default IP + 8 Convertible Analog Channels) |
| Maximum IP Camera Resolution | Up to 6MP |
| Incoming Bandwidth | 64 Mbps |
| Recording Bandwidth | 64 Mbps |
| Outgoing Bandwidth | 64 Mbps |
| Video Compression | AI Coding, Instastream, H.265, H.264+, H.264 |
| AI Features | IMD+ Human & Vehicle Detection, Irregular Black Block Masking |
| IMD by Camera | Up to 12 Channels |
| Video Output | 1 × HDMI, 1 × VGA (Up to 1920 × 1080) |
| Video Display | 1 / 4 / 8 / 9 / 16 Split Screen |
| Stream Type | Dual Stream |
| Recording Modes | General, Alarm, Motion Detection |
| Playback | Instant, General, Event, Tag & Smart Playback |
| Playback Channels | 1 / 4 / 9 Channels |
| Audio Input | 1 RCA + 8 BNC Coaxial Audio |
| Audio Output | 1 RCA |
| Two-Way Audio | 8-Channel Coaxial Two-Way Talk |
| Audio Compression | G.711a, G.711u, PCM, AAC |
| HDD Support | 1 SATA HDD up to 16TB |
| USB Ports | 2 × USB 2.0 |
| Network Interface | 1 × RJ45 10/100 Mbps Ethernet |
| Supported Protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, DHCP, DNS, FTP, SMTP, DDNS, ONVIF Profile T/S/G, CGI, SDK |
| Smartphone Support | Android & iOS |
| Web Browser Support | Chrome, Edge, Firefox, Safari, Internet Explorer |
| Backup | USB & Network |
| Power Supply | 12V DC, 1.5A |
| Power Consumption | Less than 7W (Without HDD) |
| Operating Temperature | -10°C to +45°C |
| Operating Humidity | 10%–90% RH (Non-Condensing) |
| Dimensions | 197 × 204.3 × 41.5 mm |
| Weight | 590 g |
Product Description
The CP PLUS CP-UVR-0801F1V-I is an 8 Channel Full HD AI Digital Video Recorder (DVR) engineered for advanced hybrid surveillance systems. Supporting HDCVI, AHD, TVI, CVBS, and IP cameras, it provides exceptional flexibility for upgrading existing CCTV installations or deploying new security systems. With support for up to 12 IP cameras (up to 6MP each) and 64 Mbps bandwidth, this DVR delivers smooth, high-quality recording for homes, offices, retail stores, warehouses, educational institutions, and commercial facilities.
Powered by AI IMD+ Human & Vehicle Detection, the recorder intelligently distinguishes people and vehicles from environmental movements, significantly reducing false alarms. AI Coding, Instastream, H.265, and H.264+ compression optimize storage efficiency and network bandwidth without compromising image quality. Additional features including 8-channel two-way talk over coaxial cable, HDMI & VGA Full HD output, up to 16TB SATA storage, and remote monitoring through iCMOB, gCMOB, and KVMS Pro Lite make it an ideal solution for professional CCTV surveillance.
Applications
- Residential Security Systems
- Office Buildings
- Retail Stores & Shopping Malls
- Warehouses & Industrial Facilities
- Schools & Educational Campuses
- Hospitals & Healthcare Facilities
- Hotels & Hospitality
- Banks & Financial Institutions
- Apartment & Gated Communities
- Commercial & Enterprise Surveillance
Package Contents
- 1 × CP PLUS CP-UVR-0801F1V-I AI Digital Video Recorder
- Power Adapter
- USB Mouse
- User Manual
