CP PLUS : UNP-D2521L10-DAQ
- 2MP Full HD Network PTZ Camera
- 25X Optical Zoom & 16X Digital Zoom
- 100M Smart IR Night Vision
- Starlight Low-Light Technology
- AI Intelligent Video Analytics
- IP66 Weatherproof PTZ Camera
- 2 years brand warranty
Available Offer
Share :

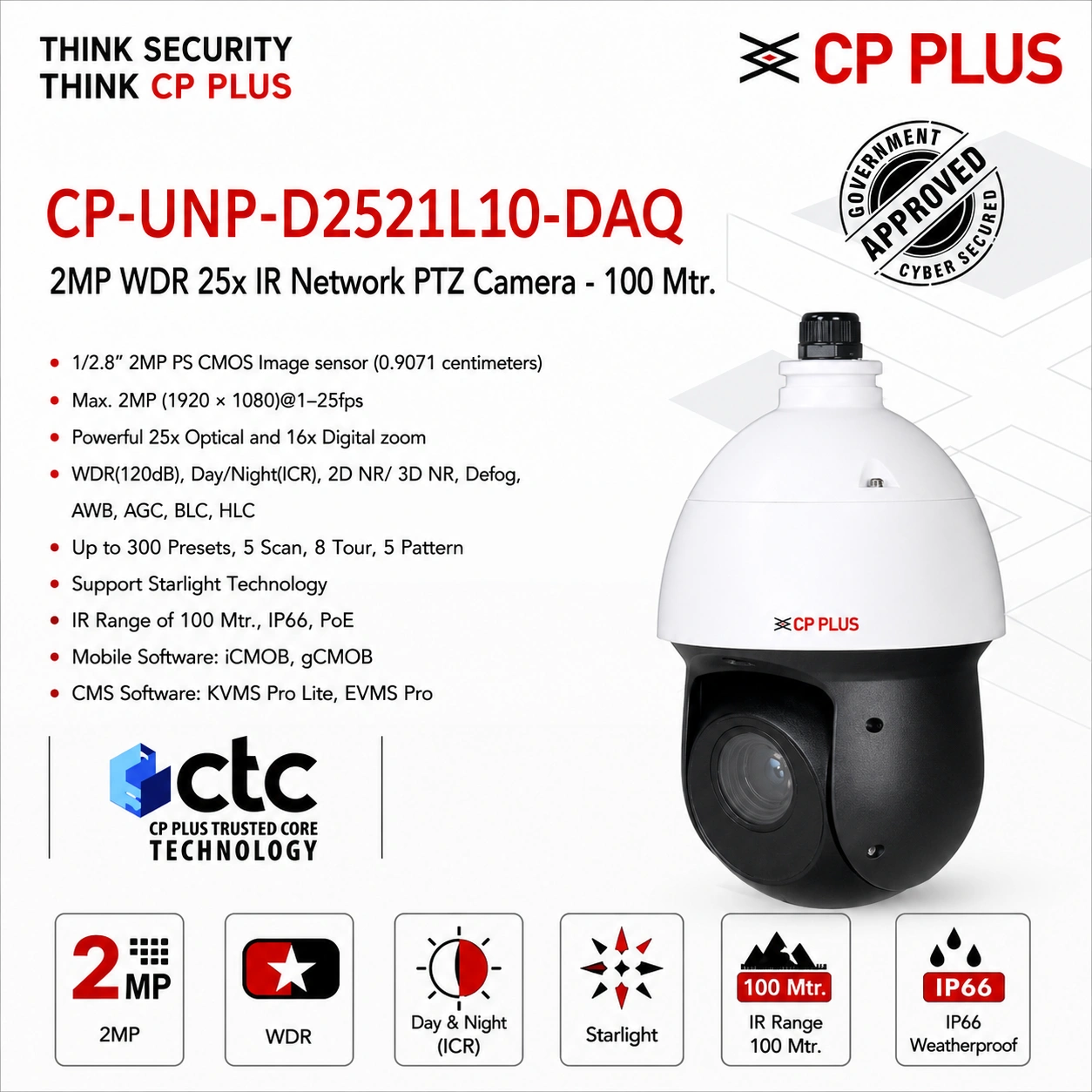

CP PLUS CP-UNP-D2521L10-DAQ 2MP WDR 25X IR Network PTZ Camera | 100M IR | Starlight | PoE | IP66
Key Features
- 2MP Full HD (1920 × 1080) Resolution
- 1/2.8" Progressive Scan CMOS Image Sensor
- 25X Optical Zoom with 16X Digital Zoom
- 4.8mm–120mm Motorized Lens
- Starlight Technology for Superior Low-Light Performance
- 100 Meter Smart IR Night Vision
- 120dB True WDR
- 2D & 3D Noise Reduction
- 360° Endless Pan & -15° to +90° Tilt
- Up to 300 Presets, 8 Tours, 5 Patterns & 5 Scans
- AI Perimeter Protection & Intelligent Motion Detection
- Face Detection & Smart Event Analytics
- Penta Stream Video Support
- PoE Support
- ONVIF Profile S, G & T Compatible
- IP66 Weatherproof with Surge & Lightning Protection
Technical Specifications
| Specification | Details |
|---|---|
| Brand | CP PLUS |
| Model | CP-UNP-D2521L10-DAQ |
| Camera Type | Network PTZ Camera |
| Image Sensor | 1/2.8" 2MP PS CMOS |
| Maximum Resolution | 1920 × 1080 (Full HD) |
| Lens | 4.8mm–120mm Motorized Lens |
| Optical Zoom | 25X |
| Digital Zoom | 16X |
| Maximum Aperture | F1.6–F3.5 |
| Viewing Angle | H: 60.6°–3.2°, V: 34.1°–1.8°, D: 69.4°–3.7° |
| Video Compression | H.265, H.264 |
| Stream Capability | Penta Stream |
| Frame Rate | Up to 25fps @ 2MP |
| Night Vision | Smart IR |
| IR Distance | Up to 100 Meters |
| Low-Light Technology | Starlight |
| Image Enhancement | 120dB WDR, 2D NR, 3D NR, Defog, AWB, AGC, BLC, HLC |
| PTZ Functions | 360° Endless Pan, -15° to +90° Tilt, Auto Flip |
| Presets | Up to 300 |
| Tours | 8 |
| Patterns | 5 |
| Scans | 5 |
| AI Features | Face Detection, IMD, Perimeter Protection, Tripwire, Intrusion Detection, Crowd Gathering, Parking Detection, Loitering Detection, Missing Object Detection |
| Audio | 1 Audio In, 1 Audio Out |
| Alarm Interface | 2 Alarm In, 1 Alarm Out |
| Storage | MicroSD Card (Up to 512GB), NAS, SFTP |
| Ethernet | RJ-45 (10/100 Mbps) |
| Network Protocols | IPv4, IPv6, HTTP, HTTPS, RTSP, RTP, ONVIF, TLS 1.2/1.3, DHCP, SMTP, QoS, UPnP and more |
| Browser Support | Chrome, Firefox, Microsoft Edge, Internet Explorer |
| Memory | 512MB RAM, 256MB ROM |
| Power Supply | 12V DC / PoE |
| Power Consumption | Basic 6.5W, Max. 17.25W |
| Weatherproof Rating | IP66 |
| Protection | TVS 6000V Lightning, Surge & Voltage Transient Protection |
| Operating Temperature | -40°C to +65°C |
| Dimensions | 270.4 × 160 mm |
| Weight | 2.4 kg |
Product Description
The CP PLUS CP-UNP-D2521L10-DAQ is a 2MP Full HD Network PTZ Camera engineered for professional surveillance across large outdoor and high-security environments. Equipped with a 1/2.8" Progressive Scan CMOS sensor, 25X optical zoom, 16X digital zoom, and Starlight technology, it captures exceptional image clarity even in challenging lighting conditions.
Its 100-meter Smart IR illumination, 120dB True WDR, 360° endless pan, and high-speed PTZ control enable comprehensive monitoring of expansive areas. Advanced AI functions such as Face Detection, Perimeter Protection, Tripwire, Intrusion Detection, Crowd Gathering Detection, and Intelligent Motion Detection (IMD) enhance situational awareness and reduce false alarms. With PoE support, MicroSD storage up to 512GB, IP66 weatherproof protection, and built-in surge protection, this PTZ camera is ideal for demanding commercial and industrial surveillance applications.
Applications
- City Surveillance
- Highways & Toll Plazas
- Airports & Railway Stations
- Industrial Plants
- Warehouses & Logistics Parks
- Educational Campuses
- Commercial Complexes
- Stadiums & Public Venues
- Smart City Projects
- Critical Infrastructure & Perimeter Security
Package Contents
- 1 × CP PLUS CP-UNP-D2521L10-DAQ 2MP Network PTZ Camera
- Mounting Accessories
- Power Connector
- Quick Installation Guide
