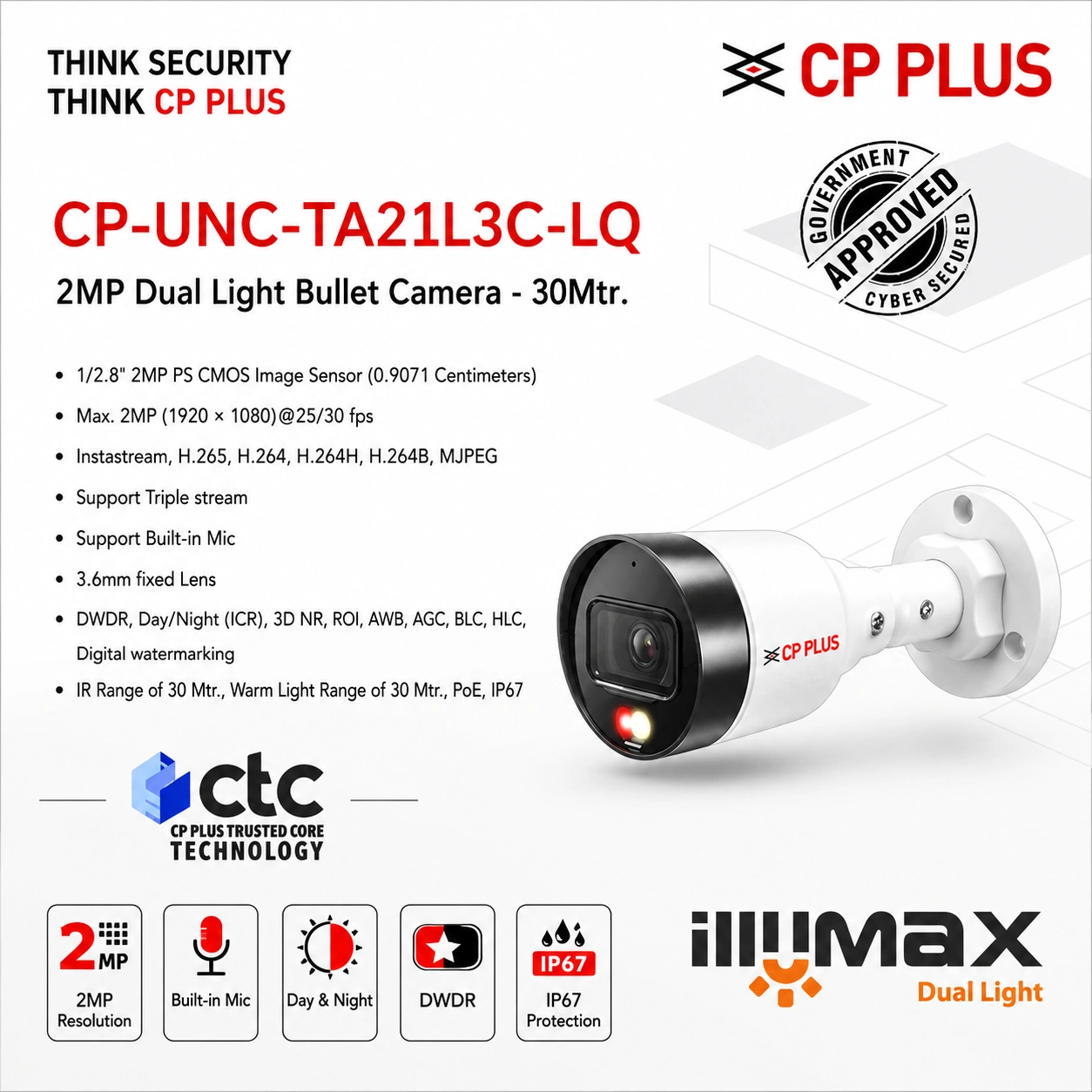

CP PLUS CP-UNC-TA21L3C-LQ 2MP Dual Light IP Bullet Camera | 30M IR | PoE | Built-in Mic | IP67
Key Features
- 2MP Full HD (1920 × 1080) Resolution
- 1/2.8" Progressive Scan CMOS Image Sensor
- Instastream, H.265 & H.264 Video Compression
- Smart Dual Light Technology
- 30 Meter IR Night Vision
- 30 Meter Warm Light Full-Color Illumination
- Built-in Microphone for Audio Recording
- AI Human & Vehicle Detection (IMD)
- DWDR, 3D Noise Reduction & ROI
- Triple Stream Video Support
- Smart Search with Compatible CP PLUS NVRs
- PoE (IEEE 802.3af) Support
- ONVIF Profile S, G & T Compatible
- IP67 Weatherproof Metal Housing
Technical Specifications
| Specification | Details |
|---|---|
| Brand | CP PLUS |
| Model | CP-UNC-TA21L3C-LQ |
| Camera Type | IP Dual Light Bullet Camera |
| Image Sensor | 1/2.8" 2MP PS CMOS |
| Maximum Resolution | 1920 × 1080 (Full HD) |
| Lens | 3.6mm Fixed Lens |
| Lens Mount | M12 |
| Aperture | F1.6 |
| Viewing Angle | H: 87°, V: 44°, D: 105° |
| Video Compression | Instastream, H.265, H.264, H.264H, H.264B, MJPEG |
| Stream Capability | Triple Stream |
| Frame Rate | Up to 30fps @ 2MP |
| Night Vision | Smart IR & Warm Light |
| IR Distance | Up to 30 Meters |
| Warm Light Distance | Up to 30 Meters |
| Audio | Built-in Microphone |
| AI Features | Human & Vehicle Detection (IMD), Motion Detection, Smart Search, ROI |
| Image Enhancement | DWDR, 3D NR, AWB, AGC, BLC, HLC |
| Network | RJ-45 (10/100 Mbps Ethernet) |
| Network Protocols | IPv4, IPv6, HTTP, HTTPS, RTSP, RTMP, RTP, ONVIF, DHCP, SMTP, TLS 1.2, SSL and more |
| Browser Support | Chrome, Firefox, Internet Explorer |
| Memory | 128MB RAM, 128MB ROM |
| Power Supply | 12V DC / PoE (IEEE 802.3af) |
| Power Consumption | Max. 4.4W (PoE), Max. 3.3W (12V DC) |
| Weatherproof Rating | IP67 |
| Operating Temperature | -40°C to +60°C |
| Housing | Metal + Plastic |
| Dimensions | 162.6 × 70 × 70 mm |
| Weight | 220 g |
Product Description
The CP PLUS CP-UNC-TA21L3C-LQ is a 2MP Full HD IP Dual Light Bullet Camera designed to provide reliable surveillance for residential, commercial, and industrial security applications. Equipped with a 1/2.8" Progressive Scan CMOS image sensor, Instastream technology, and H.265 video compression, it delivers clear Full HD video while optimizing bandwidth and storage efficiency.
Featuring 30-meter Smart IR and 30-meter Warm Light illumination, the camera ensures excellent visibility in both complete darkness and low-light environments. With AI-powered Human & Vehicle Detection, a built-in microphone, Triple Stream support, PoE connectivity, and an IP67 weatherproof housing, it offers intelligent monitoring and dependable performance for indoor and outdoor installations.
Applications
- Residential Security
- Office Buildings
- Retail Stores & Showrooms
- Warehouses
- Schools & Colleges
- Hospitals
- Banks & ATMs
- Parking Areas
- Industrial Facilities
- Building Perimeter Monitoring
Package Contents
- 1 × CP PLUS CP-UNC-TA21L3C-LQ 2MP IP Dual Light Bullet Camera
- Mounting Kit
- Quick Installation Guide
