CP PLUS : UNR-4K4322-V4
*Specifications as per manufacturer, subject to change without notice.
Available Offer
Share :

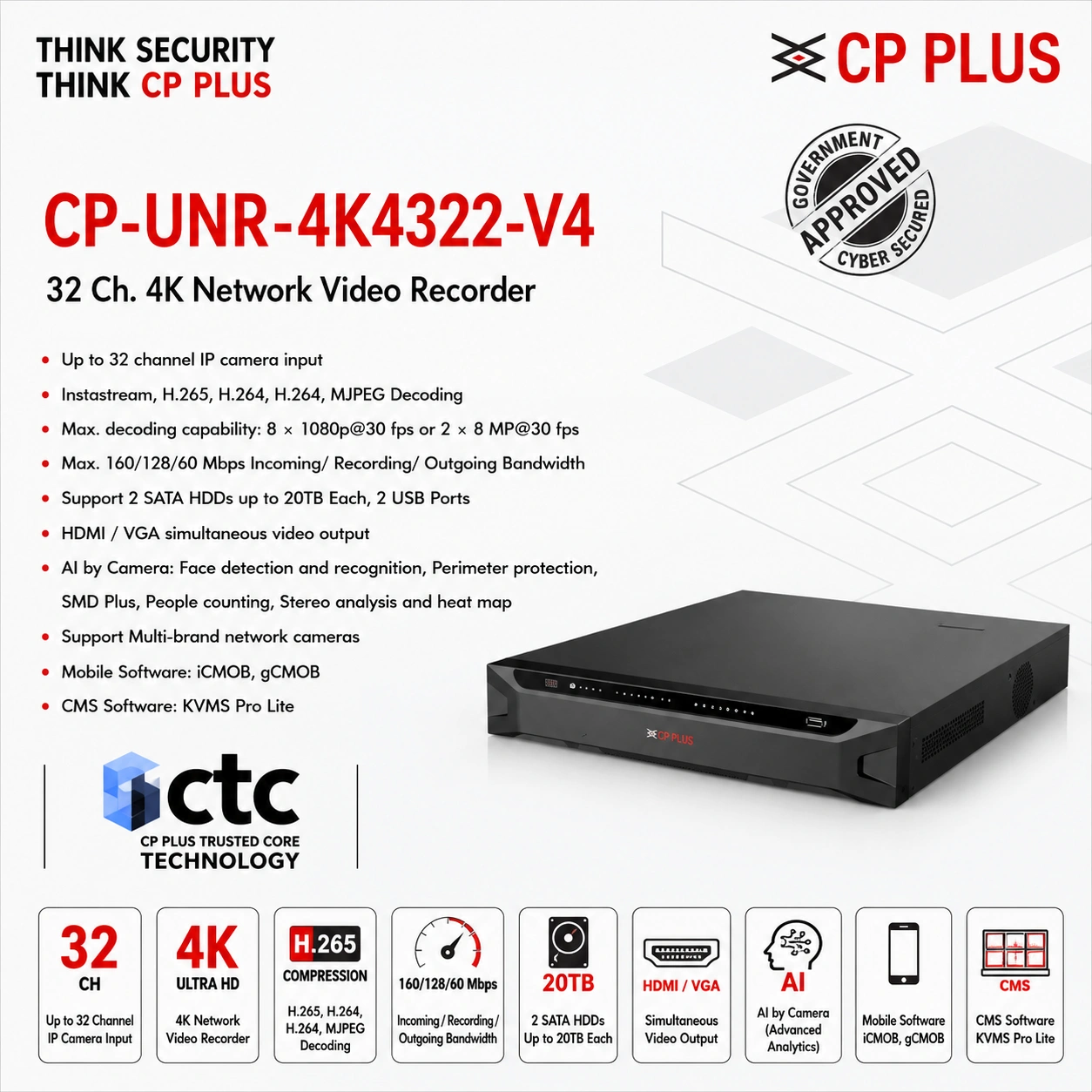

CP PLUS CP-UNR-4K4322-V4 32 Channel 4K AI Network Video Recorder | 32CH | H.265 | 160Mbps | Dual SATA | 20TB × 2
Key Features
- Supports Up to 32 IP Camera Channels
- Supports Cameras up to 8MP Decoding
- Instastream, H.265, H.264+ & H.264 Video Compression
- Maximum 160Mbps Incoming Bandwidth
- HDMI 4K & VGA Simultaneous Video Output
- AI Face Detection & Face Recognition
- AI Perimeter Protection
- Smart Motion Detection Plus (SMD Plus)
- AI People Counting, Heat Map & Stereo Analysis
- Dual SATA HDD Support (Up to 20TB Each)
- Gigabit Ethernet Port
- Multi-Brand ONVIF Camera Compatibility
- Smart Event & AI Playback
- USB & Network Backup
- Embedded Linux Operating System
Technical Specifications
| Specification | Details |
|---|---|
| Brand | CP PLUS |
| Model | CP-UNR-4K4322-V4 |
| Product Type | 32 Channel 4K AI Network Video Recorder (NVR) |
| Processor | Industrial-grade Processor |
| Operating System | Embedded Linux |
| IP Camera Channels | 32 |
| Maximum Decoding Capability | 8 × 1080p @ 30fps or 2 × 8MP @ 30fps |
| Video Compression | Instastream, H.265, H.264+, H.264 |
| AI by Camera | Face Detection & Recognition, Perimeter Protection, SMD Plus, People Counting, Stereo Analysis, Heat Map |
| AI by NVR | Smart Motion Detection Plus (SMD Plus) |
| Face Detection Channels | Up to 6 Channels |
| Perimeter Protection Channels | Up to 6 Channels |
| Incoming Bandwidth | 160 Mbps (AI Disabled), 80 Mbps (AI Enabled) |
| Recording Bandwidth | 128 Mbps (AI Disabled), 80 Mbps (AI Enabled) |
| Outgoing Bandwidth | 60 Mbps |
| Video Output | 1 × HDMI, 1 × VGA (Simultaneous) |
| HDMI Resolution | Up to 3840 × 2160 (4K) |
| VGA Resolution | Up to 1920 × 1080 |
| Display Split | Up to 36 Split Screen |
| Audio Input | 1 × RCA |
| Audio Output | 2 × RCA |
| Audio Compression | G.711a, G.711u, PCM |
| HDD Support | 2 × SATA HDD (Up to 20TB Each) |
| Multi-channel Playback | Up to 16 Channels |
| Playback Modes | Instant, General, Event, Tag & Smart Playback |
| Backup | USB Device & Network |
| Ethernet | 1 × Gigabit RJ-45 (10/100/1000 Mbps) |
| USB Ports | 2 × USB 2.0 (Front & Rear) |
| Supported Protocols | HTTPS, TCP/IP, IPv4, IPv6, DHCP, DNS, SMTP, FTP, SNMP, DDNS, UPnP, InstaOn, ONVIF Profile S/G/T, CGI, SDK |
| Browser Support | Chrome, Firefox, Edge, Safari, Internet Explorer |
| Mobile Apps | iCMOB, gCMOB |
| CMS Software | KVMS Pro Lite |
| Power Supply | 12V DC, 2A |
| Power Consumption | Less than 10W (Without HDD) |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | 10%–93% RH |
| Dimensions | 375 × 282.9 × 53 mm |
| Weight | 1.49 kg |
Product Description
The CP PLUS CP-UNR-4K4322-V4 is a 32 Channel 4K AI Network Video Recorder (NVR) built for enterprise-grade surveillance systems requiring intelligent analytics, large-scale camera management, and reliable video recording. Supporting up to 32 IP cameras with 8MP decoding capability, it utilizes Instastream, H.265, and H.264+ compression technologies to maximize storage efficiency while delivering high-quality video.
Powered by advanced AI by Camera and AI by NVR, this recorder supports Face Detection & Recognition, Perimeter Protection, Smart Motion Detection Plus (SMD Plus), People Counting, Stereo Analysis, and Heat Map Analytics to enhance security and business intelligence. Featuring 160Mbps incoming bandwidth, 4K HDMI output, dual SATA HDD support up to 20TB each, Gigabit Ethernet, and multi-brand ONVIF compatibility, it is an ideal solution for enterprise, industrial, and smart city surveillance deployments.
Applications
- Enterprise & Corporate Offices
- Smart City Surveillance
- Airports & Railway Stations
- Manufacturing Plants
- Warehouses & Logistics Parks
- Shopping Malls & Commercial Complexes
- Educational Campuses
- Hospitals & Healthcare Facilities
- Government & Public Infrastructure
- Banking & Financial Institutions
Package Contents
- 1 × CP PLUS CP-UNR-4K4322-V4 32 Channel 4K AI Network Video Recorder
- Power Adapter
- USB Mouse
- Quick Installation Guide
