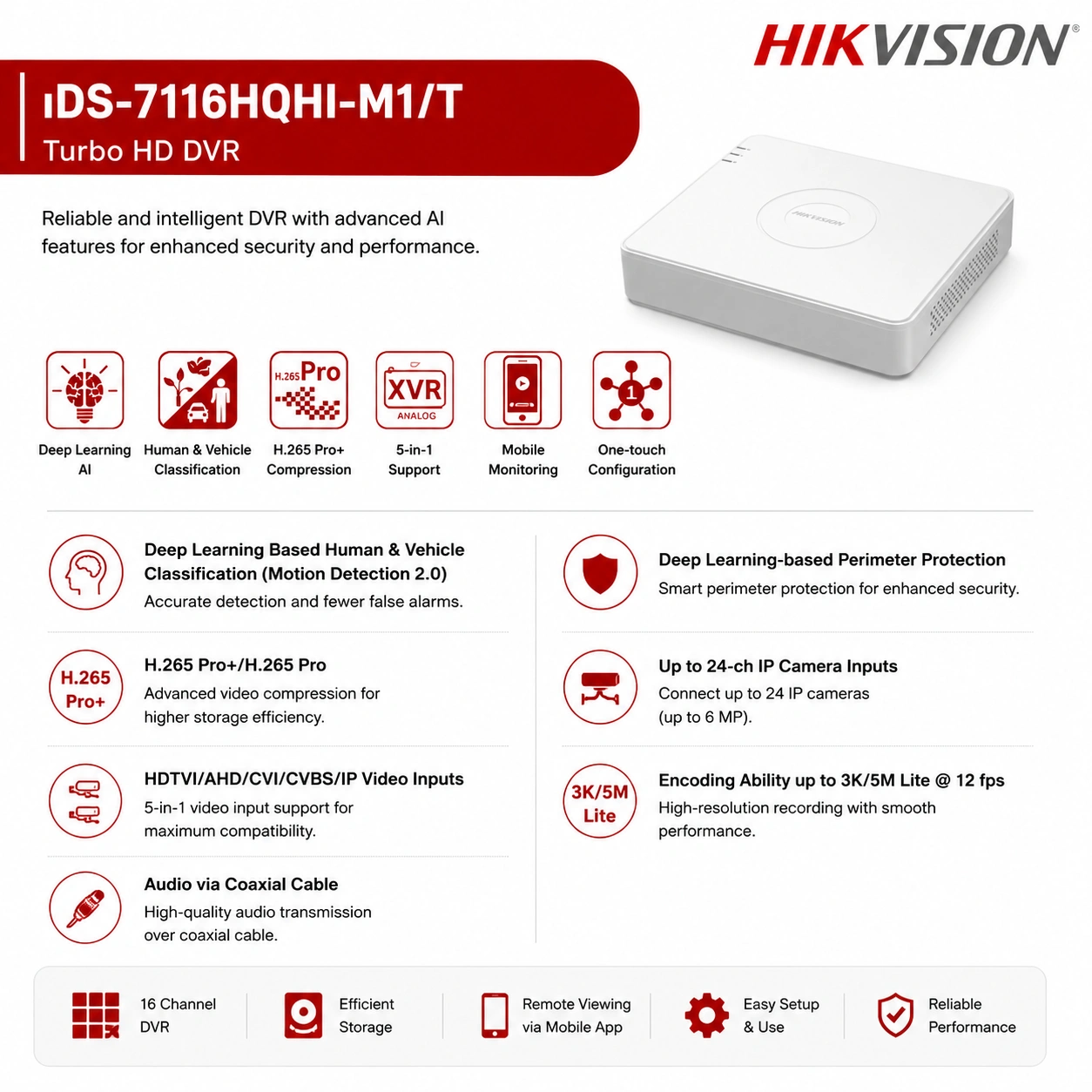

HIKVISION iDS-7116HQHI-M1/T 16CH AcuSense DVR | 5MP Lite | AI Human & Vehicle Detection
Key Features
- Deep-learning AI reduces false alarms from non-human/non-vehicle movement.
- Supports 16 analog cameras plus expanded IP camera connectivity.
- Enhanced IP mode supports up to 24 IP channels.
- 4-channel intelligent perimeter protection.
- Facial detection and face-picture search.
- Supports 3K, 5MP Lite, 4MP Lite, 3MP, 2K and 1080P recording.
- Hik-Connect remote monitoring and ONVIF support.
- Up to 10TB HDD capacity.
Technical Specifications
| Specification | Details |
|---|
| Brand | HIKVISION |
| Model | iDS-7116HQHI-M1/T |
| Product Type | 16-Channel AcuSense DVR |
| Analog Video Input | 16 BNC |
| IP Camera Input | Up to 24 Channels |
| IP Camera Resolution | Up to 6MP |
| AI Detection | Human & Vehicle |
| Motion Detection | Motion Detection 2.0 |
| Perimeter Protection | 4 Channels |
| Facial Detection | Supported |
| Max Recording | 3K/5MP Lite @ 12fps |
| Video Compression | H.265 Pro+, H.265 Pro, H.265, H.264+, H.264 |
| HDMI Output | Up to 4K @ 30Hz |
| VGA Output | 1920 × 1080 |
| Audio | Coaxial Audio + Two-Way Audio |
| HDD Support | 1 SATA, up to 10TB |
| Network | 10/100/1000 Mbps RJ45 |
| Remote Access | Hik-Connect |
| USB | 2 × USB 2.0 |
| Power Supply | 12V DC, 2A |
| Power Consumption | ≤24W without HDD |
| Operating Temperature | –10°C to +55°C |
| Dimensions | 285 × 210 × 48 mm |
| Weight | ≤1 kg |
Product Description
The HIKVISION iDS-7116HQHI-M1/T is a 16-channel AcuSense CCTV DVR designed for advanced security systems. It combines AI human and vehicle detection, 4-channel perimeter protection and facial detection with support for HDTVI, AHD, HDCVI, CVBS and IP cameras.
With support for up to 24 IP cameras, 6MP IP input, 5MP Lite/3K recording, H.265 Pro+ compression, 4K HDMI output and Hik-Connect remote monitoring, it is suitable for medium-sized commercial and residential surveillance installations.
Ideal For
- Commercial Buildings
- Offices & Warehouses
- Retail Stores
- Schools & Institutions
- Residential Projects
- CCTV Upgrade Projects
