Key Features
- 8 × 10/100Mbps PoE Ports
- 2 × 10/100Mbps Uplink Ports
- Supports IEEE 802.3af/at/bt PoE Standards
- Up to 60W High-Power PoE (Ports 7 & 8)
- Built-in PoE Watchdog Function
- Plug & Play Installation
Technical Specifications
| Specification | Details |
|---|
| Brand | CP PLUS |
| Model | CP-ANW-HPU8H2-N12 |
| Product Type | 8 Port PoE Switch |
| PoE Ports | 8 × 10/100Mbps RJ45 |
| Uplink Ports | 2 × 10/100Mbps RJ45 |
| PoE Standard | IEEE 802.3af/at/bt |
|
|
| High Power PoE | 60W (Ports 7 & 8) |
| Switching Capacity | 2.0 Gbps |
|
|
| Lightning Protection | 6KV |
| ESD Protection | 8KV |
| Power Input | AC 90–240V |
| Operating Temperature | -30°C to 60°C |
Product Description

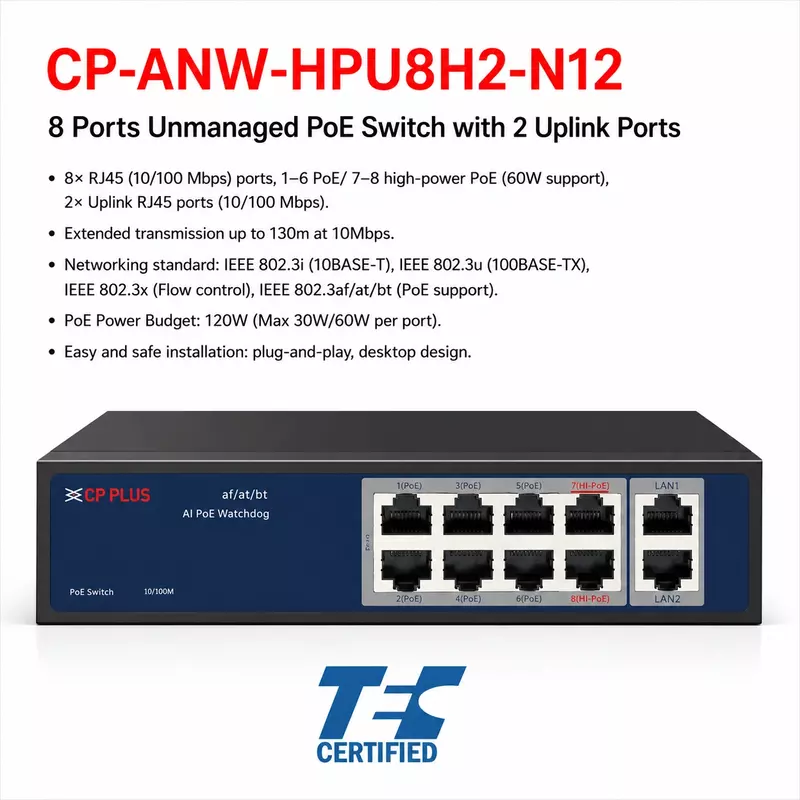

The CP PLUS CP-ANW-HPU8H2-N12 8 Port PoE Switch is designed for reliable CCTV surveillance and networking applications. It provides 8 Fast Ethernet PoE ports and 2 dedicated uplink ports, allowing seamless connectivity for IP cameras, wireless access points, VoIP phones, and other PoE-enabled devices.
With a 120W PoE power budget, support for IEEE 802.3af/at/bt standards, and 60W high-power PoE on Ports 7 & 8, it can power demanding devices without additional adapters. Built-in PoE Watchdog, ensure stable and secure operation in commercial and industrial environments.
Applications
- IP CCTV Surveillance Systems
- Security Camera Installations
- Offices & Commercial Buildings
- Retail Stores
- Warehouses
- Schools & Colleges
- Hotels & Hospitals
- Wireless Access Points
- VoIP Phone Networks
- Small Business Networks
Package Contents
- 1 × CP PLUS 8 Port PoE Switch (CP-ANW-HPU8H2-N12)
- AC Power Cable
- User Manual
