CP PLUS : URC-DC51PL3C-L-V2
Available Offer
Share :

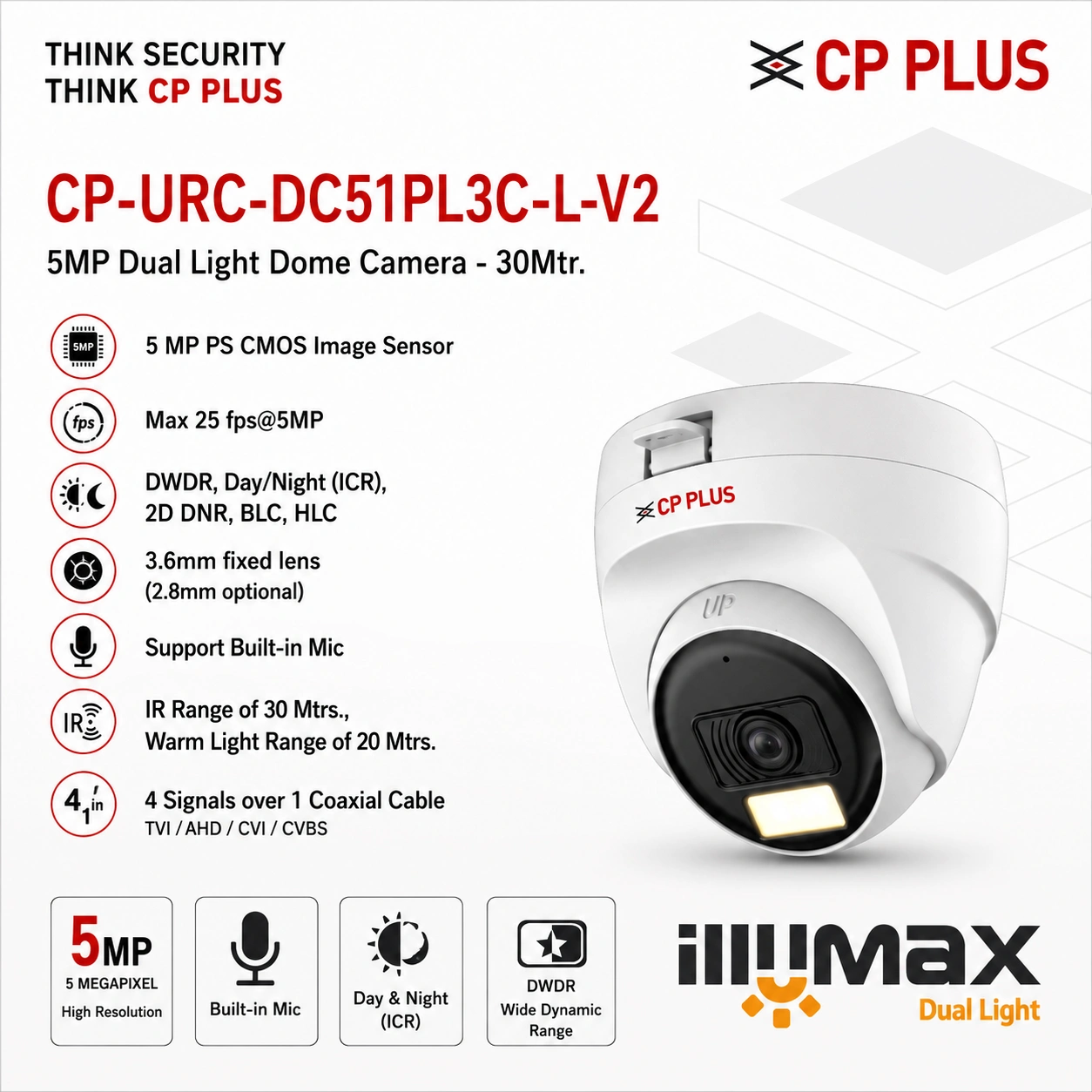

CP PLUS CP-URC-DC51PL3C-L-V2 5MP Dual Light Dome Camera | 30M Smart IR | 20M Warm Light | Built-in Mic | 4-in-1 HD Analog Camera
Key Features
- 5MP Progressive Scan CMOS Image Sensor
- Maximum Resolution up to 2880 × 1620
- 5MP Recording at Up to 25fps
- Dual Light Technology (IR + Warm Light)
- 30 Meter Smart IR Night Vision
- 20 Meter Warm Light Full-Color Night Vision
- Built-in Microphone for Audio Surveillance
- DWDR (Digital Wide Dynamic Range)
- 2D Digital Noise Reduction (2D DNR)
- Day/Night ICR Switching
- 3.6mm Fixed Lens (2.8mm Optional)
- 4 Video Signals over Single Coaxial Cable
- CVI / TVI / AHD / CVBS Switchable Output
- Privacy Mask Support
Technical Specifications
| Specification | Details |
|---|---|
| Brand | CP PLUS |
| Model | CP-URC-DC51PL3C-L-V2 |
| Camera Type | HD Analog Dual Light Dome Camera |
| Image Sensor | 5MP Progressive Scan CMOS |
| Maximum Resolution | 2880 × 1620 |
| Effective Video Resolution | 5MP @ 25fps |
| Lens | 3.6mm Fixed Lens (2.8mm Optional) |
| Lens Type | Fixed Focal |
| Lens Mount | M12 |
| Maximum Aperture | F2.0 |
| Viewing Angle | 3.6mm: H 92°, V 48° • 2.8mm: H 106°, V 56°, D 125° |
| Minimum Illumination | 0.02 Lux (Color), 0.002 Lux (B/W), 0 Lux with IR |
| IR Distance | Up to 30 Meters |
| Warm Light Distance | Up to 20 Meters |
| Day/Night | Auto (ICR) / Color / B&W |
| Image Enhancement | DWDR, BLC, HLC, 2D DNR |
| White Balance | Auto, Area White Balance |
| Gain Control | Auto (AGC) |
| Video Output | CVI / TVI / AHD / CVBS (Switchable) |
| Streaming Resolution | 5MP, 4MP, 2MP, 960H |
| Built-in Audio | Yes (Built-in Microphone) |
| Privacy Mask | Up to 4 Configurable Areas |
| Mirror Function | Supported |
| DORI Distance (3.6mm) | Detect: 76m • Observe: 30.4m • Recognize: 15.2m • Identify: 7.6m |
| Angle Adjustment | Pan: 0°–360° • Tilt: 0°–78° • Rotation: 0°–360° |
| Power Supply | 12V DC ±30% |
| Power Consumption | Maximum 2.6W |
| Operating Temperature | -40°C to +55°C |
| Operating Humidity | Less than 95% RH |
| Dimensions | 85 × 77.1 mm |
| Weight | 110 g |
Product Description
The CP PLUS CP-URC-DC51PL3C-L-V2 is a 5MP Ultra HD Dual Light Dome Camera engineered to deliver exceptional image clarity and reliable surveillance for indoor security applications. Featuring a 5MP Progressive Scan CMOS sensor with a maximum resolution of 2880 × 1620, it captures sharp and detailed footage suitable for homes, offices, retail outlets, educational institutions, and commercial premises.
Its Dual Light Technology intelligently combines 30-meter Smart IR and 20-meter Warm Light to provide clear black-and-white or full-color images during nighttime. The built-in microphone enables synchronized audio recording, while DWDR, 2D Digital Noise Reduction, and Smart Day/Night (ICR) ensure superior image quality under varying lighting conditions. Supporting CVI, TVI, AHD, and CVBS video formats over a single coaxial cable, this camera offers excellent compatibility with most HD DVR systems.
Applications
- Homes & Residential Buildings
- Offices & Commercial Spaces
- Retail Stores & Showrooms
- Banks & Financial Institutions
- Educational Institutions
- Hospitals & Clinics
- Hotels & Restaurants
- Reception & Lobby Areas
- Indoor Corridors
- Small & Medium Business Surveillance
Package Contents
- 1 × CP PLUS CP-URC-DC51PL3C-L-V2 5MP Dual Light Dome Camera
- Mounting Screws
- Installation Guide
