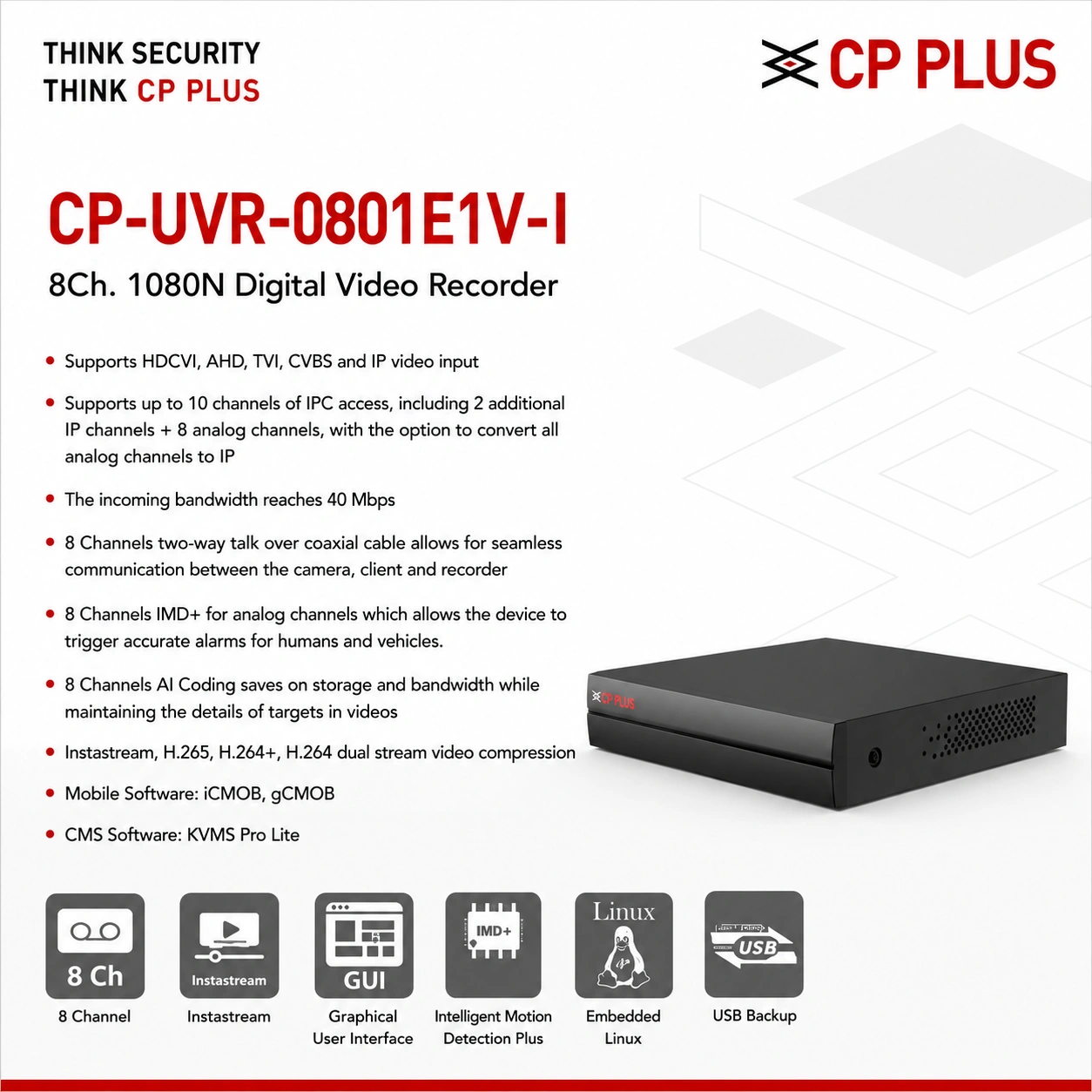

CP PLUS CP-UVR-0801E1V-I 8 Channel 1080N AI Digital Video Recorder | H.265 | 10CH IP Support | AI Coding | IMD+
Key Features
- 8-Channel AI Hybrid Digital Video Recorder
- Supports HDCVI, AHD, TVI, CVBS & IP Cameras
- Supports Up to 10 IP Cameras (2 Default IP + 8 Convertible Channels)
- AI IMD+ Human & Vehicle Detection
- AI Coding for Reduced Storage & Bandwidth
- Instastream, H.265, H.264+ & H.264 Compression
- 40 Mbps Incoming, Recording & Outgoing Bandwidth
- 8-Channel Two-Way Audio over Coaxial Cable
- HDMI & VGA Simultaneous Full HD Output
- Smart Playback & Event Playback
- ONVIF Profile T, S & G Compatible
- Supports 1 SATA HDD up to 6TB
- Remote Monitoring via iCMOB & gCMOB
- KVMS Pro Lite CMS Support
Technical Specifications
| Specification | Details |
|---|---|
| Brand | CP PLUS |
| Model | CP-UVR-0801E1V-I |
| DVR Type | 8 Channel AI Digital Video Recorder |
| Processor | Industrial Grade Processor |
| Operating System | Embedded Linux |
| Analog Camera Input | 8 BNC Ports (HDCVI / AHD / TVI / CVBS Auto Detection) |
| IP Camera Support | Up to 10 Channels (2 Default IP + 8 Convertible Analog Channels) |
| Incoming Bandwidth | 40 Mbps |
| Recording Bandwidth | 40 Mbps |
| Outgoing Bandwidth | 40 Mbps |
| Video Compression | AI Coding, Instastream, H.265, H.264+, H.264 |
| AI Features | IMD+ Human & Vehicle Detection |
| IMD by Camera | Up to 10 Channels |
| Video Output | 1 × HDMI, 1 × VGA (Up to 1920 × 1080) |
| Video Display | 1 / 4 / 8 / 9 / 16 Split Screen |
| Stream Type | Dual Stream |
| Recording Modes | General, Alarm, Motion Detection |
| Playback | Instant, General, Event, Tag & Smart Playback |
| Playback Channels | 1 / 4 / 9 Channels |
| Audio Input | 1 RCA + 8 BNC Coaxial Audio |
| Audio Output | 1 RCA |
| Two-Way Audio | 8-Channel Coaxial Two-Way Talk |
| Audio Compression | G.711a, G.711u, PCM, AAC |
| HDD Support | 1 SATA HDD up to 6TB |
| USB Ports | 2 × USB 2.0 |
| Network Interface | 1 × RJ45 10/100 Mbps Ethernet |
| Supported Protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, DHCP, DNS, FTP, SMTP, DDNS, ONVIF, CGI, SDK |
| Smartphone Support | Android & iOS |
| Web Browser Support | Chrome, Edge, Firefox, Safari, Internet Explorer |
| Backup | USB & Network |
| Power Supply | 12V DC, 1.5A |
| Power Consumption | Less than 7W (Without HDD) |
| Operating Temperature | -10°C to +45°C |
| Storage Temperature | -20°C to +60°C |
| Dimensions | 197 × 204.3 × 41.5 mm |
| Weight | 570 g |
Product Description
The CP PLUS CP-UVR-0801E1V-I is an 8 Channel AI Digital Video Recorder (DVR) designed for professional hybrid CCTV surveillance systems. It supports HDCVI, AHD, TVI, CVBS, and IP cameras, allowing seamless integration of analog and IP surveillance devices. With support for up to 10 IP cameras and 40 Mbps bandwidth, this DVR provides reliable Full HD recording for homes, offices, retail stores, warehouses, and commercial facilities.
Featuring AI IMD+ Human & Vehicle Detection, the recorder intelligently reduces false alarms by distinguishing people and vehicles from environmental movements such as rain, shadows, and leaves. AI Coding, Instastream, and H.265 compression minimize storage requirements and network bandwidth while maintaining excellent video quality. The DVR also offers 8-channel two-way talk over coaxial cable, HDMI & VGA Full HD video output, remote access through iCMOB and gCMOB, and centralized management with KVMS Pro Lite, making it an ideal solution for modern surveillance installations.
Applications
- Residential CCTV Systems
- Office Buildings
- Retail Stores & Shopping Malls
- Warehouses & Factories
- Educational Institutions
- Hospitals & Clinics
- Hotels & Hospitality
- Banks & Financial Institutions
- Apartment Complexes
- Commercial Security Systems
Package Contents
- 1 × CP PLUS CP-UVR-0801E1V-I AI Digital Video Recorder
- Power Adapter
- USB Mouse
- User Manual
