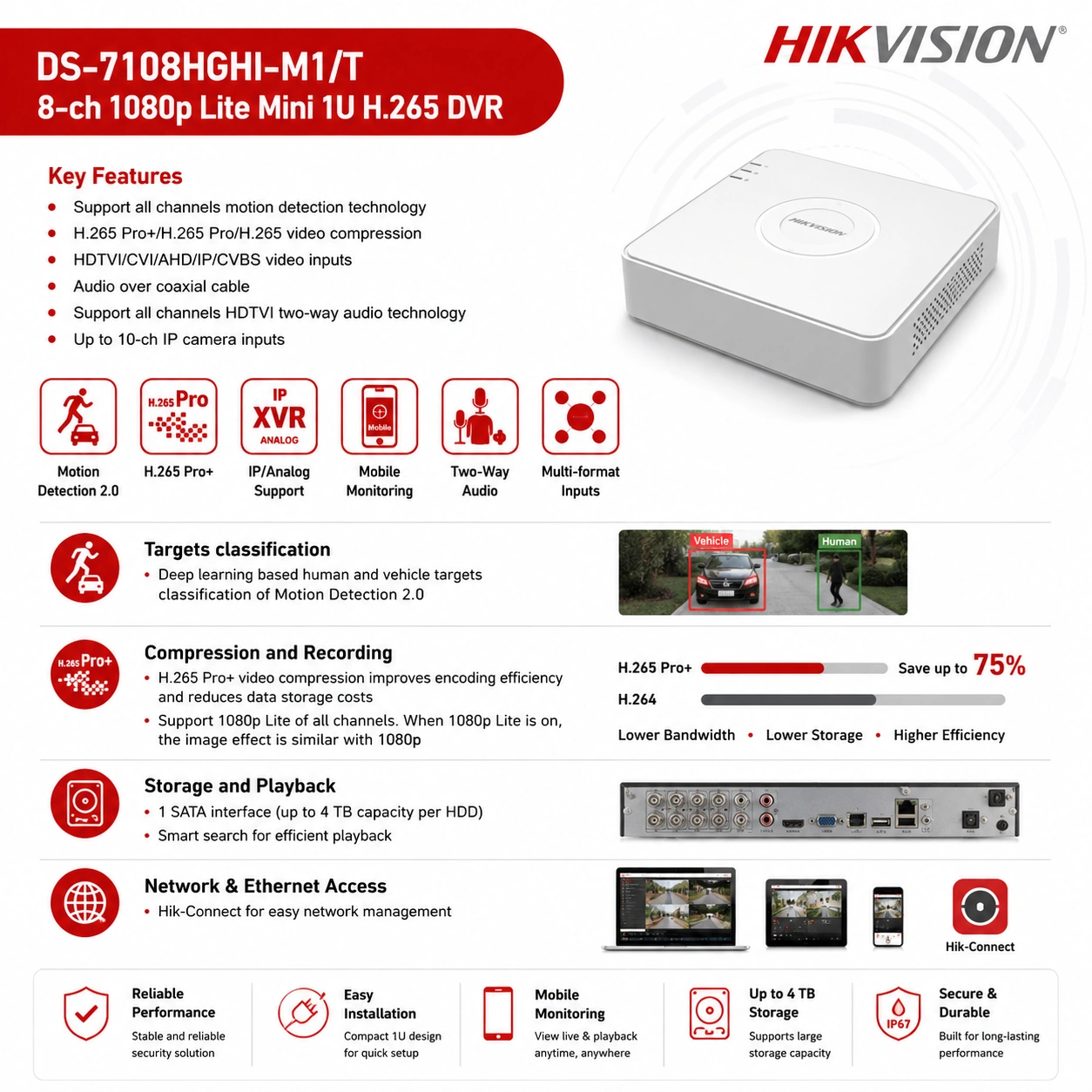

HIKVISION DS-7108HGHI-M1/T 8-Channel 1080p Lite DVR | H.265 Pro+ | Motion Detection 2.0
Key Features
- 8 analog BNC camera inputs
- Supports HDTVI, HDCVI, AHD, CVBS and IP cameras
- Up to 10 IP camera channels
- Up to 5MP IP camera support
- Deep-learning-based human/vehicle motion detection
- Quick search by object or event type
- H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 compression
- Hik-Connect for remote monitoring
- 8-channel synchronous playback
Technical Specifications
| Specification | Details |
|---|
| Brand | HIKVISION |
| Model | DS-7108HGHI-M1/T |
| Product Type | 8-Channel 1080p Lite DVR |
| Analog Inputs | 8 × BNC |
| IP Camera Inputs | Up to 10 channels |
| IP Resolution | Up to 5MP |
| Video Inputs | HDTVI / HDCVI / AHD / CVBS / IP |
| Video Compression | H.265 Pro+, H.265 Pro, H.265, H.264+, H.264 |
| Motion Detection | Motion Detection 2.0 |
| AI Detection | Human & Vehicle Classification |
| Audio | 8-ch Coaxial + 1-ch RCA |
| Two-Way Audio | Supported |
| HDMI Output | 1920 × 1080 @ 60Hz |
| VGA Output | 1920 × 1080 @ 60Hz |
| HDD | 1 × SATA, up to 4TB |
| Network | RJ45 10/100 Mbps |
| USB | 2 × USB 2.0 |
| Remote Access | Hik-Connect |
| Power | 12V DC, 1.5A |
| Dimensions | 200 × 200 × 48mm |
| Weight | ≤1kg without HDD |
Product Description
The HIKVISION DS-7108HGHI-M1/T is an 8-channel hybrid DVR supporting HDTVI, HDCVI, AHD, CVBS and IP cameras. Its Motion Detection 2.0 with human and vehicle classification helps reduce false alarms, while H.265 Pro+ compression improves storage efficiency. It is suitable for residential, commercial and small-business CCTV systems.
Ideal For
- Homes & Apartments
- Shops & Offices
- Warehouses
- Small Businesses
- Commercial CCTV Systems
- Existing Analog-to-IP CCTV Upgrades
