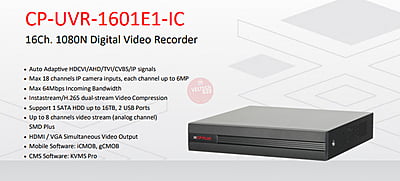

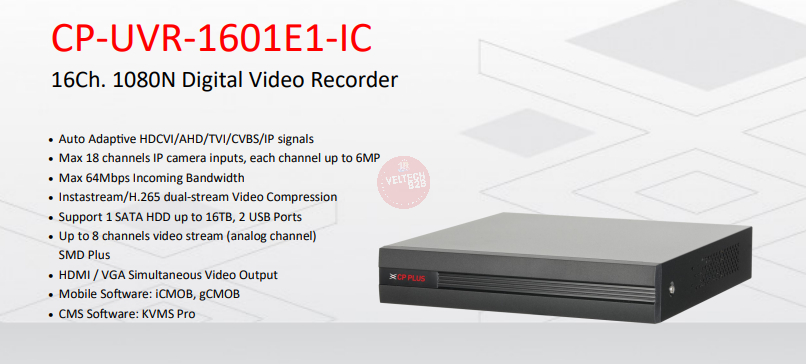

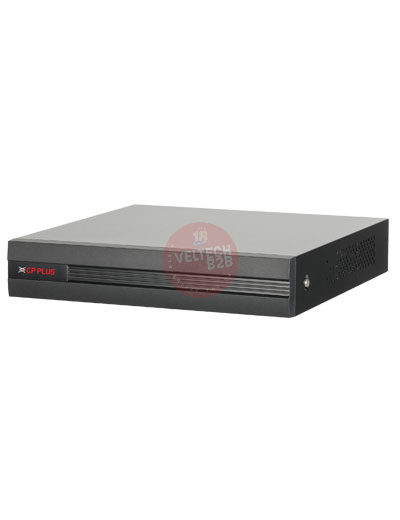

CP PLUS CP-UVR-1601E1-IC2 16 Channel 1080N AI Digital Video Recorder | H.265 | 18CH IP Support | SMD Plus | 16TB HDD
Key Features
- 16-Channel Hybrid AI Digital Video Recorder
- Auto Adaptive HDCVI, AHD, TVI, CVBS & IP Camera Support
- Supports Up to 18 IP Cameras (Up to 6MP Resolution)
- 64 Mbps Incoming, Recording & Outgoing Bandwidth
- AI SMD Plus Human & Vehicle Detection (8 Analog Channels)
- AI Instastream & Instastream Technology
- H.265+, H.264+ & H.264 Compression
- HDMI & VGA Simultaneous Full HD Output
- Supports 1 SATA HDD up to 16TB
- 16-Channel Coaxial Audio Support
- Smart Event Playback
- ONVIF Compatible
- Remote Monitoring via iCMOB & gCMOB
- KVMS Pro Lite CMS Support
Technical Specifications
Specification Details Brand CP PLUS Model CP-UVR-1601E1-IC2 DVR Type 16 Channel AI Digital Video Recorder Processor Industrial Grade Processor Operating System Embedded Linux Analog Camera Input 16 BNC Ports (HDCVI / AHD / TVI / CVBS Auto Adaptive) IP Camera Support Up to 18 Channels (2 Default IP + 16 Convertible Analog Channels) Maximum IP Camera Resolution Up to 6MP Incoming Bandwidth 64 Mbps Recording Bandwidth 64 Mbps Outgoing Bandwidth 64 Mbps AI Features SMD Plus Human & Vehicle Detection (Up to 8 Analog Channels) Video Compression AI Instastream, Instastream, H.265+, H.264+, H.264 Video Output 1 × HDMI, 1 × VGA (Up to 1920 × 1080) Display Split 1 / 4 / 8 / 9 / 16 Split Screen Recording Capacity Main Stream & Dual Stream Recording Playback Channels 1 / 4 / 9 Channels Playback Modes Instant, General, Event & Tag Playback Audio Input 1 RCA + 16 BNC Coaxial Audio Audio Compression G.711A, G.711U, PCM Two-Way Audio Supported (Shares First Audio Input) HDD Support 1 SATA HDD up to 16TB USB Ports 2 × USB 2.0 Network Interface 1 × Gigabit RJ45 Ethernet (10/100/1000 Mbps) Supported Protocols HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, DHCP, DNS, DDNS, P2P, ONVIF, CGI Smartphone Support Android, iPhone & iPad Power Supply 12V DC, 1.5A Power Consumption Less than 10W (Without HDD) Operating Temperature -10°C to +55°C Operating Humidity Up to 90% RH (Non-Condensing) Dimensions 260 × 231.4 × 47.6 mm Weight 1.42 kg
| Specification | Details |
|---|---|
| Brand | CP PLUS |
| Model | CP-UVR-1601E1-IC2 |
| DVR Type | 16 Channel AI Digital Video Recorder |
| Processor | Industrial Grade Processor |
| Operating System | Embedded Linux |
| Analog Camera Input | 16 BNC Ports (HDCVI / AHD / TVI / CVBS Auto Adaptive) |
| IP Camera Support | Up to 18 Channels (2 Default IP + 16 Convertible Analog Channels) |
| Maximum IP Camera Resolution | Up to 6MP |
| Incoming Bandwidth | 64 Mbps |
| Recording Bandwidth | 64 Mbps |
| Outgoing Bandwidth | 64 Mbps |
| AI Features | SMD Plus Human & Vehicle Detection (Up to 8 Analog Channels) |
| Video Compression | AI Instastream, Instastream, H.265+, H.264+, H.264 |
| Video Output | 1 × HDMI, 1 × VGA (Up to 1920 × 1080) |
| Display Split | 1 / 4 / 8 / 9 / 16 Split Screen |
| Recording Capacity | Main Stream & Dual Stream Recording |
| Playback Channels | 1 / 4 / 9 Channels |
| Playback Modes | Instant, General, Event & Tag Playback |
| Audio Input | 1 RCA + 16 BNC Coaxial Audio |
| Audio Compression | G.711A, G.711U, PCM |
| Two-Way Audio | Supported (Shares First Audio Input) |
| HDD Support | 1 SATA HDD up to 16TB |
| USB Ports | 2 × USB 2.0 |
| Network Interface | 1 × Gigabit RJ45 Ethernet (10/100/1000 Mbps) |
| Supported Protocols | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, DHCP, DNS, DDNS, P2P, ONVIF, CGI |
| Smartphone Support | Android, iPhone & iPad |
| Power Supply | 12V DC, 1.5A |
| Power Consumption | Less than 10W (Without HDD) |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | Up to 90% RH (Non-Condensing) |
| Dimensions | 260 × 231.4 × 47.6 mm |
| Weight | 1.42 kg |
Product Description
The CP PLUS CP-UVR-1601E1-IC2 is a 16 Channel AI Hybrid Digital Video Recorder (DVR) built for medium to large-scale surveillance installations. It supports HDCVI, AHD, TVI, CVBS, and IP cameras, allowing seamless integration with existing analog systems while providing easy migration to IP surveillance. With support for up to 18 IP cameras (up to 6MP each) and 64 Mbps bandwidth, this DVR delivers reliable, high-quality video recording for commercial, industrial, institutional, and enterprise security applications.
Powered by AI SMD Plus, the recorder intelligently distinguishes humans and vehicles from environmental disturbances such as rain, leaves, and lighting changes, significantly reducing false alarms. AI Instastream, H.265+, and H.264+ compression optimize storage and network bandwidth while maintaining exceptional video quality. Additional features including Gigabit Ethernet, HDMI & VGA Full HD output, 16-channel coaxial audio, 16TB HDD support, and remote monitoring via iCMOB, gCMOB, and KVMS Pro Lite make it an ideal choice for professional surveillance deployments.
