CP PLUS : UVR-1601F1-IC
- 16 Channel 5M-N AI Digital Video Recorder
- Full-Channel AI Instastream & SMD Plus
- 2 years brand warranty
Available Offer
Share :

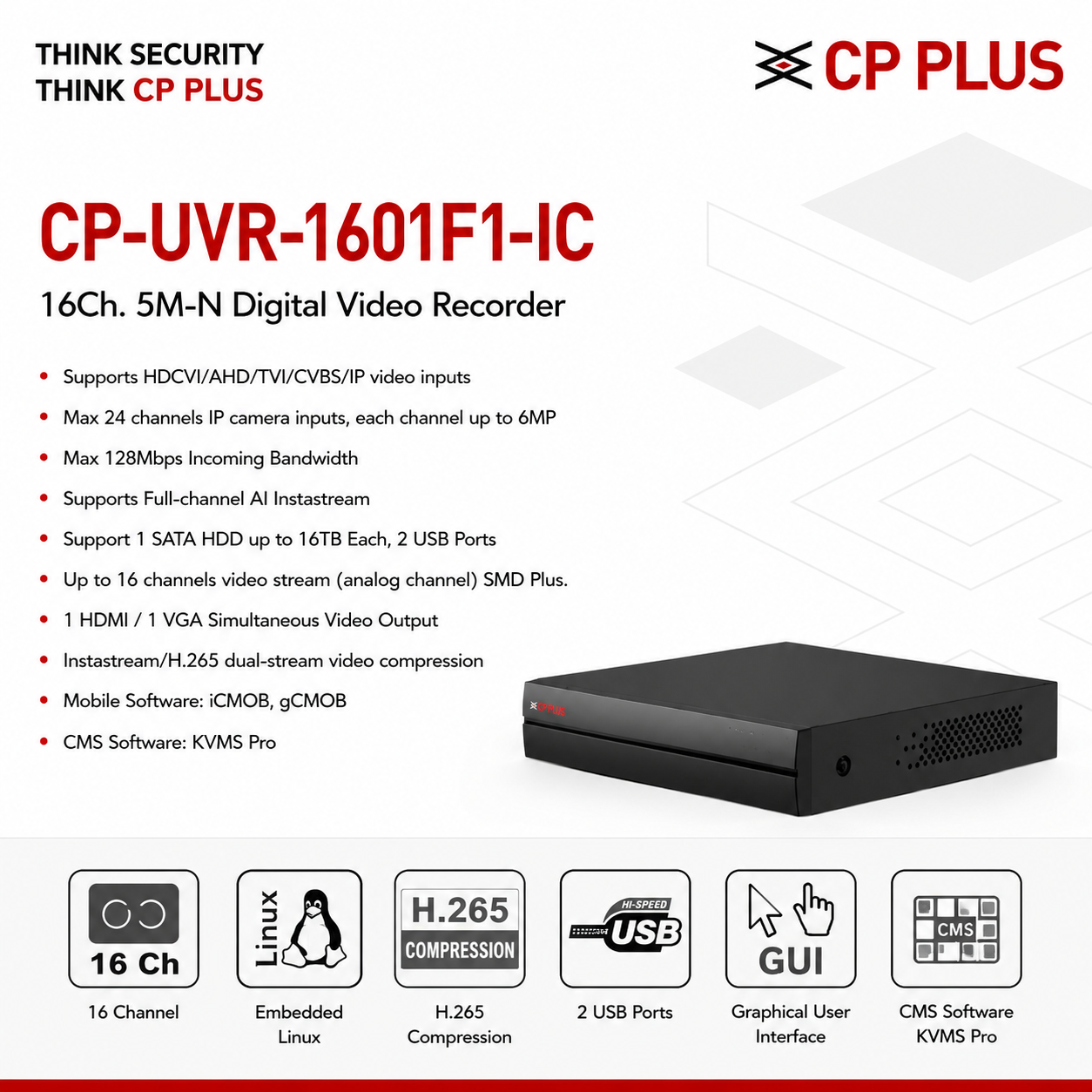

CP PLUS CP-UVR-1601F1-IC 16 Channel 5M-N AI Digital Video Recorder | H.265 | 24CH IP Support | AI Instastream | SMD Plus
Key Features
- 16-Channel AI Hybrid Digital Video Recorder
- Supports HDCVI, AHD, TVI, CVBS & IP Camera Inputs
- Supports Up to 24 IP Cameras (Up to 6MP Resolution)
- Full-Channel AI Instastream Technology
- Up to 16 Channels SMD Plus Human & Vehicle Detection
- H.265, H.264+, H.264 & Instastream Compression
- HDMI & VGA Simultaneous Full HD Video Output
- Supports 1 SATA HDD up to 16TB
- Gigabit Ethernet for High-Speed Networking
- Smart Search & Intelligent Playback
- Two-Way Audio via RCA
- Supports Up to 128 User Accounts
- Remote Monitoring via iCMOB & gCMOB
- Compatible with KVMS Pro CMS
Technical Specifications
| Specification | Details |
|---|---|
| Brand | CP PLUS |
| Model | CP-UVR-1601F1-IC |
| DVR Type | 16 Channel 5M-N AI Digital Video Recorder |
| Processor | Embedded Processor |
| Operating System | Embedded Linux |
| Analog Camera Input | 16 BNC Ports (HDCVI / AHD / TVI / CVBS) |
| IP Camera Support | Up to 24 Channels (16 Analog + 8 IP) |
| Maximum IP Camera Resolution | Up to 6MP |
| AI Features | Full-Channel AI Instastream, Up to 16-Channel SMD Plus |
| Video Compression | AI Instastream, Instastream, H.265, H.264+, H.264 |
| Video Output | 1 × HDMI, 1 × VGA |
| Maximum Display Resolution | 1920 × 1080 |
| Display Split | 1 / 4 / 8 / 9 / 16 Split Screen |
| Recording Resolution | 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF |
| Bit Rate | 32 kbps–6144 kbps per Channel |
| Audio Input | 1 RCA + 16 BNC Coaxial Audio |
| Audio Output | 1 RCA |
| Audio Compression | G.711A, G.711U, PCM |
| Two-Way Audio | Supported (RCA Audio In/Out) |
| Motion Detection | Supported |
| Video Loss Detection | Supported |
| Search Modes | Time/Date, Motion Detection, Exact Search |
| Playback Controls | Play, Pause, Stop, Fast/Slow Playback, Digital Zoom, Backup |
| Maximum User Accounts | 128 |
| HDD Support | 1 SATA HDD up to 16TB |
| USB Ports | 2 × USB 2.0 |
| Network Interface | 1 × RJ45 Gigabit Ethernet (10/100/1000 Mbps) |
| Supported Protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, DHCP, DNS, FTP, DDNS, ONVIF, CGI, Wi-Fi, 3G/4G |
| Smartphone Support | Android, iPhone & iPad |
| Power Supply | 12V DC, 2A |
| Power Consumption | Less than 12W (Without HDD) |
| Operating Temperature | -10°C to +45°C |
| Operating Humidity | Up to 90% RH (Non-Condensing) |
| Dimensions | 260 × 231.4 × 47.6 mm |
| Weight | 0.93 kg (Without HDD) |
Product Description
The CP PLUS CP-UVR-1601F1-IC is a 16 Channel 5M-N AI Hybrid Digital Video Recorder (DVR) designed for professional surveillance systems requiring high-performance recording, intelligent analytics, and flexible expansion. It supports HDCVI, AHD, TVI, CVBS, and IP cameras, with the ability to connect up to 24 IP cameras at resolutions of up to 6MP.
Equipped with Full-Channel AI Instastream and SMD Plus, the DVR intelligently detects humans and vehicles while minimizing false alarms caused by environmental factors. Advanced H.265, H.264+, and Instastream compression technologies significantly reduce storage requirements and network bandwidth without compromising image quality.
With Gigabit Ethernet, HDMI & VGA simultaneous output, 16TB HDD support, 128-user management, intelligent playback functions, and remote monitoring through iCMOB, gCMOB, and KVMS Pro, this DVR is an ideal solution for commercial, industrial, educational, healthcare, and enterprise-grade CCTV installations.
Applications
- Enterprise Surveillance Systems
- Commercial Buildings
- Corporate Offices
- Shopping Malls & Retail Chains
- Manufacturing Plants
- Warehouses & Logistics Centers
- Educational Institutions
- Hospitals & Healthcare Facilities
- Hotels & Hospitality
- Apartment & Gated Communities
Package Contents
- 1 × CP PLUS CP-UVR-1601F1-IC 16 Channel AI Digital Video Recorder
- Power Adapter
- USB Mouse
- User Manual
