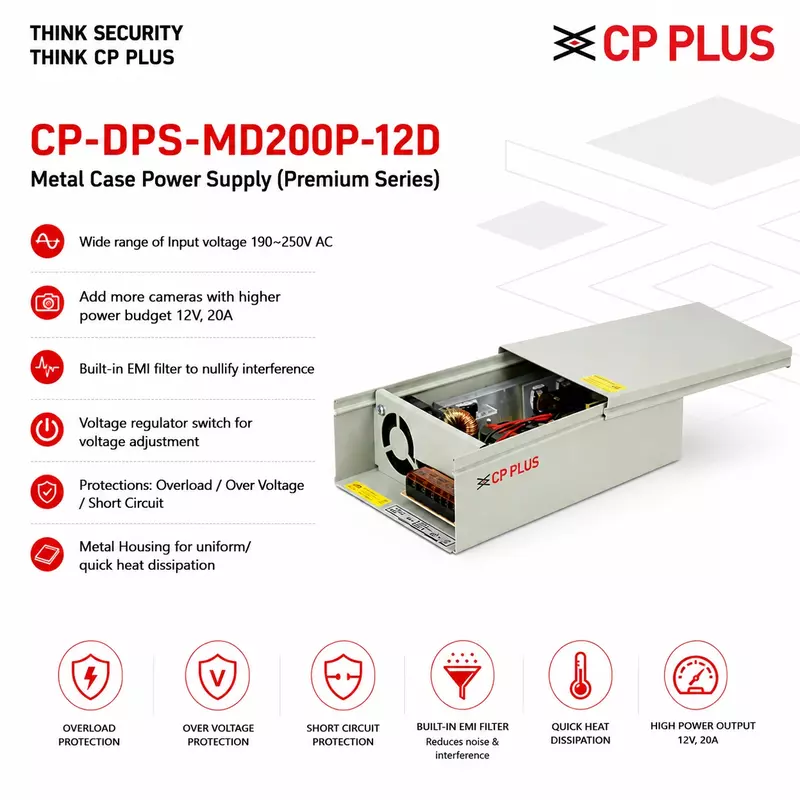

CP PLUS 12V 20A Metal SMPS Power Supply | 240W Premium Series | CP-DPS-MD200P-12D
Key Features
- Stable 12V DC Power Output
- High 20A Current Capacity
- 240W Rated Power
- Wide AC Input Voltage Range
- Built-in EMI Filter
- Adjustable Output Voltage
- Premium Metal Enclosure
- Fast Heat Dissipation Design
- Overload Protection
- Over Voltage Protection
- Short Circuit Protection
- Easy Installation
Technical Specifications
| Specification | Details |
|---|
| Brand | CP PLUS |
| Model | CP-DPS-MD200P-12D |
| Product Type | Metal Case SMPS Power Supply |
| Input Voltage | 190–250V AC |
| Input Frequency | 47–63Hz |
| Output Voltage | 12V DC |
| Output Current | 20A |
| Rated Power | 240W |
| Output Voltage Adjustment | 11.4V–13.2V |
| Efficiency | 84% |
| Ripple & Noise | ≤100mVp-p |
| Protection | Overload, Over Voltage & Short Circuit |
| EMI Filter | Built-in |
| Operating Temperature | -20°C to +40°C |
| Storage Temperature | -20°C to +85°C |
| Dimensions | 196 × 114 × 55 mm |
Product Description
The CP PLUS CP-DPS-MD200P-12D is a 12V 20A (240W) premium metal SMPS power supply designed for CCTV surveillance systems, DVRs, NVRs, LED lighting, and other 12V DC applications. Its high power output allows multiple cameras and devices to operate reliably from a single power source. Equipped with a built-in EMI filter, adjustable output voltage, and advanced overload, over-voltage, and short-circuit protection, it ensures stable and safe performance. The durable metal housing provides efficient heat dissipation for continuous operation.
Applications
- CCTV Camera Systems
- DVR & NVR Power Supply
- LED Lighting Systems
- Access Control Systems
- Alarm Systems
- Home & Commercial Security
- Industrial Automation
- 12V DC Equipment
Package Contents
- 1 × CP PLUS CP-DPS-MD200P-12D Metal SMPS Power Supply
- User Manual
