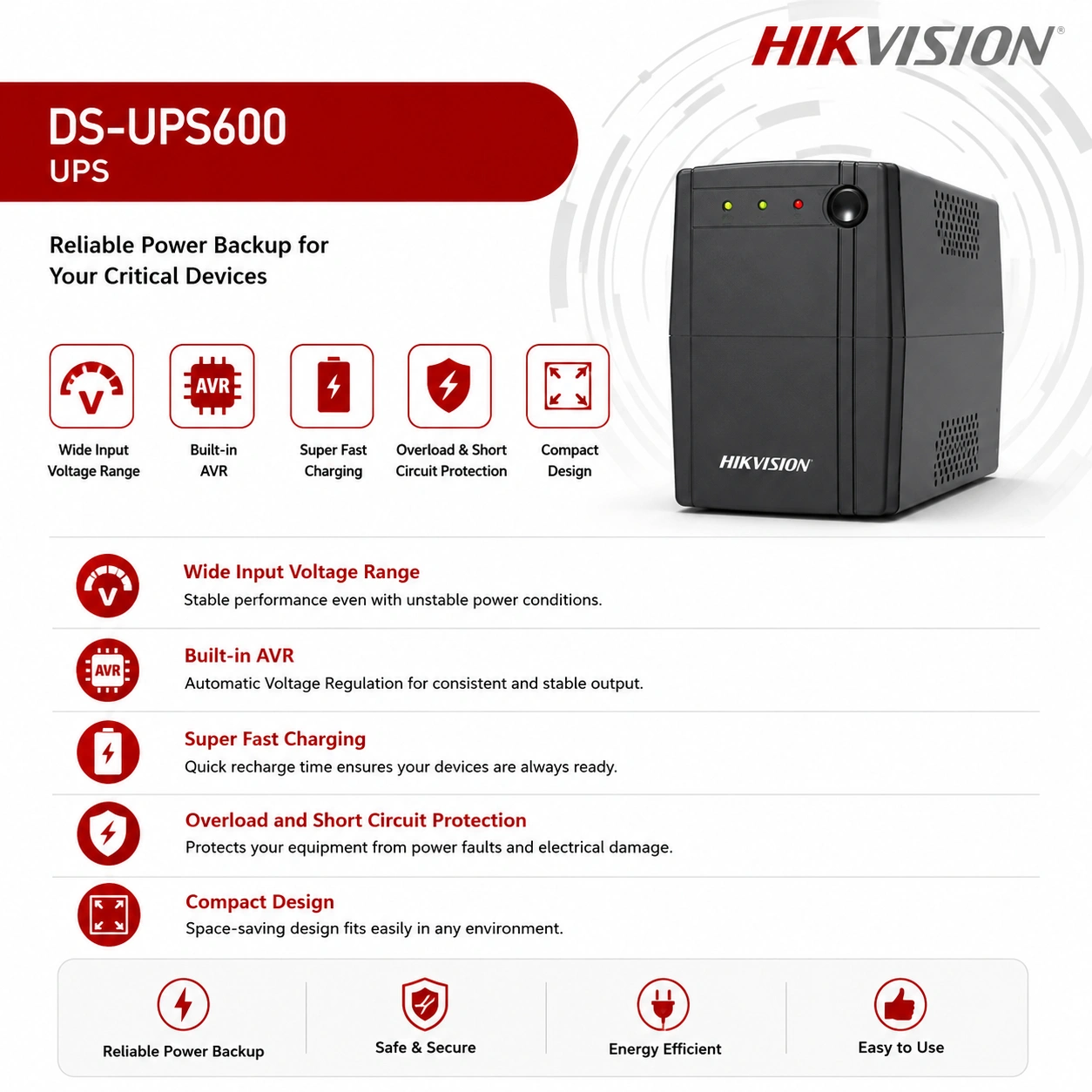

HIKVISION DS-UPS600 600VA / 360W UPS | AVR | Surge & Overload Protection
Key Features
- Automatic Voltage Regulation (AVR) helps stabilize fluctuating power.
- Wide input voltage range reduces battery usage during voltage variations.
- PWM output waveform with self-adaptive 50/60Hz frequency.
- Built-in lead-acid battery with 4–6 hour recharge time.
- Multiple protection features for connected equipment and UPS.
- Compact design suitable for desktops, CCTV systems and network equipment.
Technical Specifications
| Specification | Details |
|---|
| Brand | HIKVISION |
| Model | DS-UPS600 |
| Product Type | Line-Interactive UPS |
| Capacity | 600VA / 360W |
| Input Voltage | 140–290VAC / 85–150VAC |
| Input Frequency | 50/60Hz, Auto |
| Output Voltage | 210–235VAC / 110–125VAC |
| Transfer Time | ≤10ms |
| Waveform | PWM |
| Output Sockets | 2 Universal |
| Battery | 12V / 7Ah Lead-Acid |
| Recharge Time | 4–6 Hours to 90% |
| Backup @ 60W | Up to 35 min |
| Backup @ 100W | Up to 20 min |
| Backup @ 200W | Up to 3 min |
| Protection | Surge, Overload, Short Circuit, Overcharge & Discharge |
| Indicators | LED + Audible Alarm |
| Dimensions | 274 × 95 × 139 mm |
| Weight | Approx. 4.2 kg |
| Operating Temperature | 0°C to 40°C |
Product Description
The HIKVISION DS-UPS600 is a 600VA/360W UPS with AVR, designed to provide backup power and voltage protection for CCTV systems, computers, routers, networking equipment and other electronic devices. Its wide input voltage range, fast charging, 12V/7Ah battery and multiple protection features help maintain reliable operation during power fluctuations and outages.
Ideal For
- CCTV Systems
- Desktop Computers
- Wi-Fi Routers & Networking
- NVR/DVR Systems
- Small Office Equipment
