CP PLUS : URC-TC24PL3C-L-V2
Available Offer
Share :

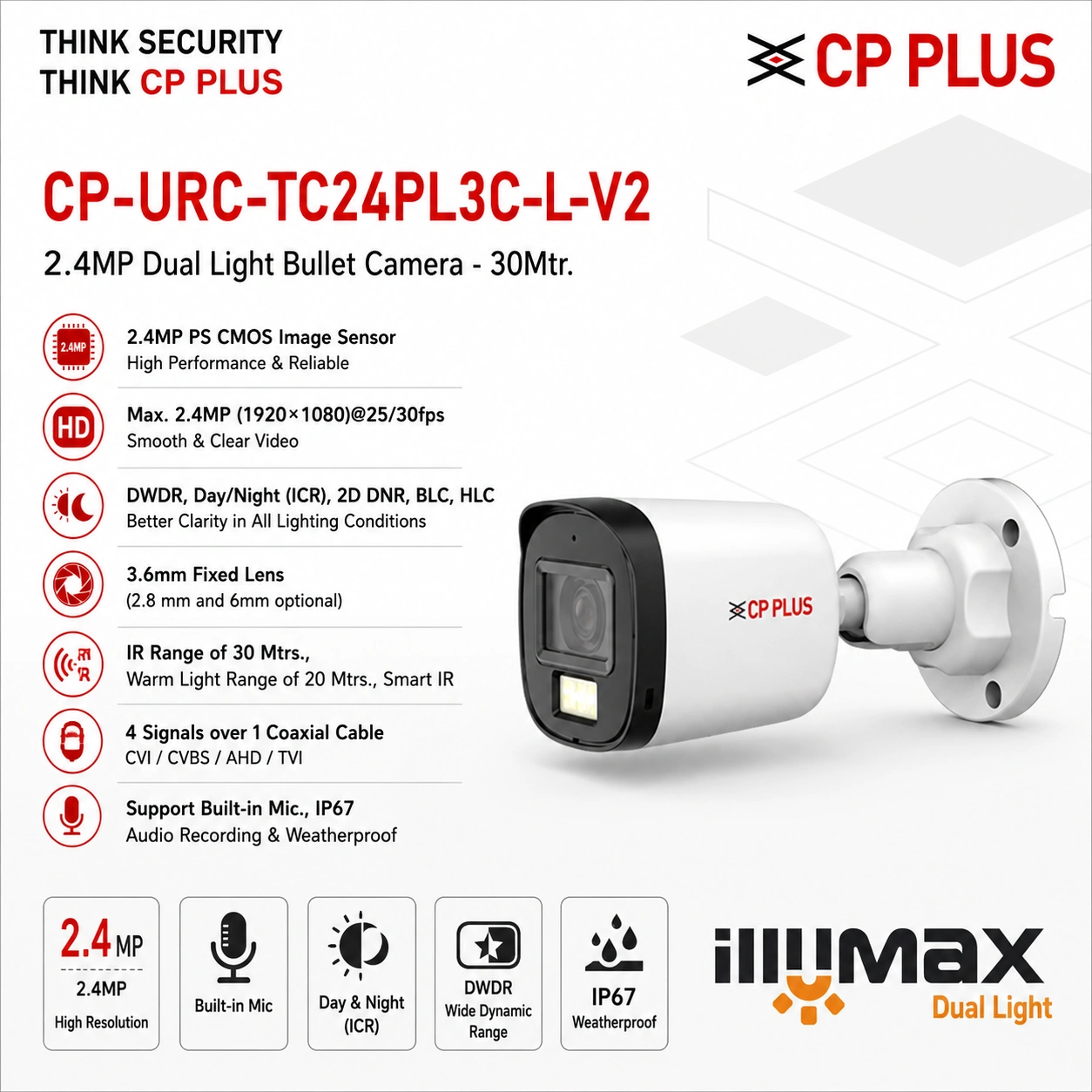

CP PLUS CP-URC-TC24PL3C-L-V2 2.4MP Dual Light Bullet Camera | 30M Smart IR | 20M Warm Light | Built-in Mic | IP66 | 4-in-1 HD Analog Camera
Key Features
- 2.4MP Progressive Scan CMOS Image Sensor
- Full HD 1080P Resolution at 25/30fps
- Dual Light Technology (IR + Warm Light)
- 30 Meter Smart IR Night Vision
- 20 Meter Warm Light Full-Color Night Vision
- Built-in Microphone for Audio Surveillance
- 3.6mm Fixed Lens (2.8mm & 6mm Optional)
- DWDR (Digital Wide Dynamic Range)
- 2D Digital Noise Reduction (2D DNR)
- Smart IR & Warm Light Modes
- CVI / TVI / AHD / CVBS Switchable Output
- Privacy Mask Support (Up to 8 Areas)
- IP66 Weatherproof Protection
Technical Specifications
| Specification | Details |
|---|---|
| Brand | CP PLUS |
| Model | CP-URC-TC24PL3C-L-V2 |
| Camera Type | HD Analog Dual Light Bullet Camera |
| Image Sensor | 2.4MP Progressive Scan CMOS |
| Maximum Resolution | 1920 × 1080 (Full HD) |
| Frame Rate | Up to 1080P @ 25/30fps |
| Lens | 3.6mm Fixed Lens (2.8mm & 6mm Optional) |
| Lens Type | Fixed Focal |
| Lens Mount | M12 |
| Maximum Aperture | F2.0 |
| Viewing Angle | 3.6mm: H 80°, V 43°, D 94° • 2.8mm: H 100°, V 54°, D 117° • 6mm: H 43°, V 24°, D 50° |
| Minimum Illumination | 0.02 Lux (Color), 0.002 Lux (B/W), 0 Lux with IR |
| IR Distance | Up to 30 Meters |
| Warm Light Distance | Up to 20 Meters |
| IR Modes | Smart IR & Warm Light, IR Only, Warm Light Only |
| Day/Night | Auto (ICR) / Color / B&W |
| Image Enhancement | DWDR, BLC, HLC, 2D DNR |
| White Balance | Auto, Area White Balance |
| Gain Control | Auto / Manual |
| Video Output | CVI / TVI / AHD / CVBS (Switchable) |
| Built-in Audio | Yes (Built-in Microphone) |
| Privacy Mask | Up to 8 Configurable Areas |
| Mirror Function | Supported |
| DORI Distance (3.6mm) | Detect: 55m • Observe: 22m • Recognize: 11m • Identify: 5.5m |
| Weatherproof Rating | IP66 |
| Power Supply | 12V DC ±30% |
| Power Consumption | Maximum 3.3W |
| Operating Temperature | -40°C to +60°C |
| Operating Humidity | Less than 95% RH |
| Dimensions | 146.1 × 70 × 69.8 mm |
| Weight | 100 g |
Product Description
The CP PLUS CP-URC-TC24PL3C-L-V2 is a 2.4MP Full HD Dual Light Bullet Camera designed for dependable outdoor surveillance with high-quality video and audio recording. Equipped with a 2.4MP Progressive Scan CMOS sensor, it delivers Full HD 1080P video at up to 30fps, ensuring crisp images for residential, commercial, and industrial security applications.
Featuring Dual Light Technology, the camera intelligently switches between 30-meter Smart IR and 20-meter Warm Light to provide clear monochrome or full-color images at night. The built-in microphone captures synchronized audio, while DWDR, 2D Digital Noise Reduction, and Day/Night ICR improve image quality in challenging lighting conditions. Supporting CVI, TVI, AHD, and CVBS video formats over a single coaxial cable, and protected by an IP66 weatherproof metal housing, this camera is an ideal choice for reliable outdoor CCTV installations.
Applications
- Home & Villa Security
- Office Buildings
- Retail Stores & Showrooms
- Warehouses & Factories
- Schools & Colleges
- Hospitals & Clinics
- Parking Areas
- Residential Communities
- Building Perimeter Surveillance
- Outdoor Commercial Security
Package Contents
- 1 × CP PLUS CP-URC-TC24PL3C-L-V2 2.4MP Dual Light Bullet Camera
- Mounting Kit
- Installation Guide
